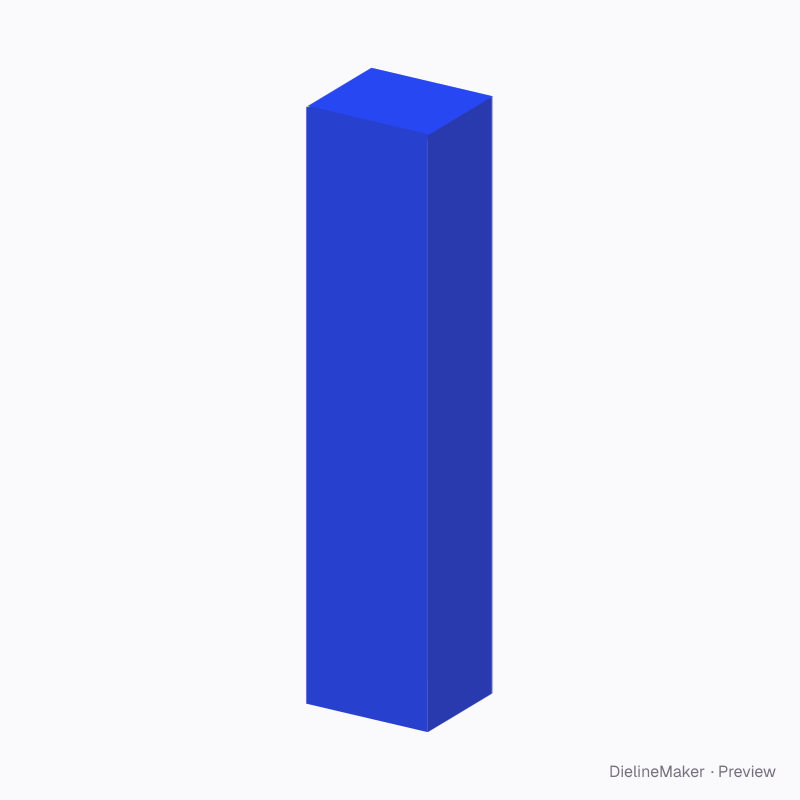

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A20.20.03.01Tuck end
Toothpaste carton dieline
Economical grey-back carton for a 75–100 ml tube. A ready-sized preset of the reverse tuck end — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside42 × 36 × 190 mm
Outside43 × 37 × 191 mm
Flat blank169.4 × 290.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A20.20.03.01
- Inside size
- Length 42 · Width 36 · Height 190 mm
- Size range
- Length 20–400 · Width 12–300 · Height 20–500 mm
- Manufacturing
- 42.5 × 36.5 × 190.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.039 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- Grey-back duplex 350 g · 0.48 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WPET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A20.20.03.01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.48 mm for Grey-back duplex 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 42.5 × 190.5 | L + T × H + T |
| Left side | 36.5 × 190.5 | W + T × H + T |
| Back | 42.5 × 190.5 | L + T × H + T |
| Right side | 36 × 190.5 | W × H + T |
| Glue flap | 12 × 190.5 | – × H + T |
| Top closure | 42.5 × 35.5 | L + T × W − T |
| Top tuck | 41.5 × 14.4 | L − T × – |
| Top dust flap | 36.5 × 20.2 | W + T × – |
| Top dust flap | 36 × 20.2 | W × – |
| Bottom closure | 42.5 × 35.5 | L + T × W − T |
| Bottom tuck | 41.5 × 14.4 | L − T × – |
| Bottom dust flap | 36.5 × 20.2 | W + T × – |
| Bottom dust flap | 36 × 20.2 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Notch radiusmm
- Windowon / off
- Zigzag flap edges4 options
- Safety clasp3 options
- Clasp widthmm
