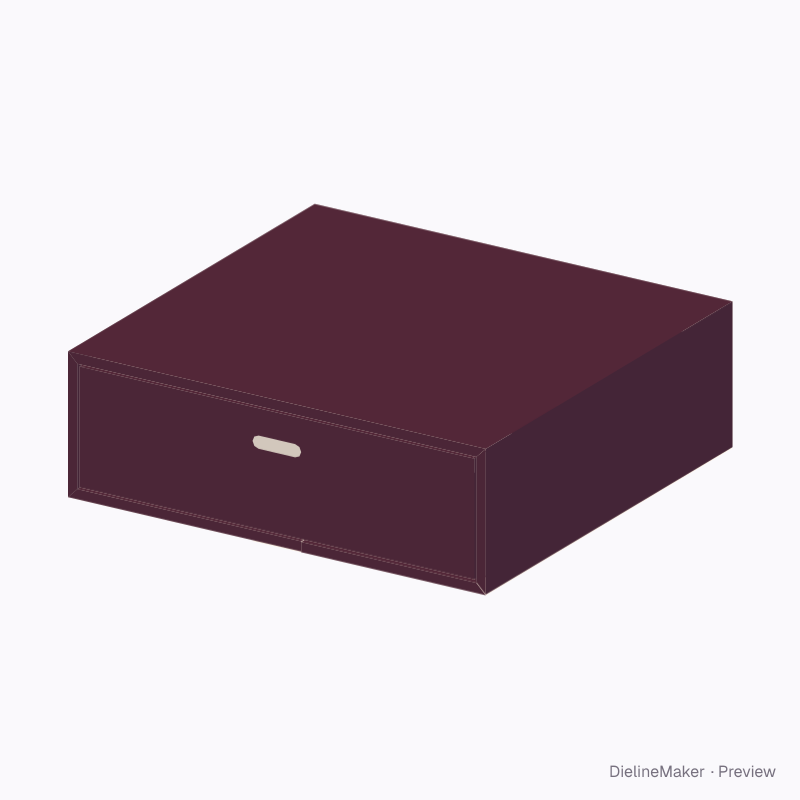

93 mm bangle gift box — Rigid drawer box dieline
Editable 93 × 93 × 25 mm starting point using rigid drawer box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the rigid drawer box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside93 × 93 × 25 mm
Outside103 × 97.3 × 33 mm
Flat blank283.8 × 132 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 93 · Depth 93 · Height 25 mm
- Size range
- Width 40–450 · Depth 40–450 · Height 15–200 mm
- Manufacturing
- 98 × 95 × 29 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Sleeve wrap, Tray wrap, Sleeve board, Tray board
- Board area
- 0.109 m² · about 15 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for

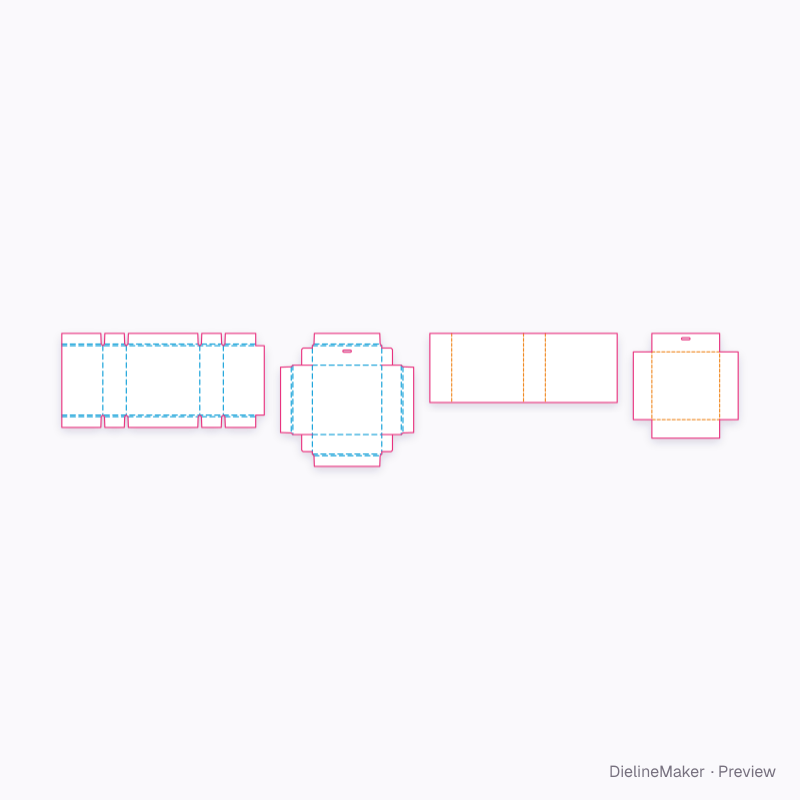

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Kiss cut
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base ×2Sleeve wrap | 57.5 × 97.3 | – |
| Left sideSleeve wrap | 33 × 97.3 | – |
| TopSleeve wrap | 103 × 97.3 | – |
| Right sideSleeve wrap | 33 × 97.3 | – |
| Left side back rimSleeve wrap | 33 × 2.3 | – |
| Left side back turn-inSleeve wrap | 28.3 × 15 | – |
| Left side front rimSleeve wrap | 33 × 2.3 | – |
| Left side front turn-inSleeve wrap | 28.3 × 15 | – |
| Top back rimSleeve wrap | 103 × 2.3 | – |
| Top back turn-inSleeve wrap | 98.3 × 15 | – |
| Top front rimSleeve wrap | 103 × 2.3 | – |
| Top front turn-inSleeve wrap | 98.3 × 15 | – |
| Right side back rimSleeve wrap | 33 × 2.3 | – |
| Right side back turn-inSleeve wrap | 28.3 × 15 | – |
| Right side front rimSleeve wrap | 33 × 2.3 | – |
| Right side front turn-inSleeve wrap | 28.3 × 15 | – |
