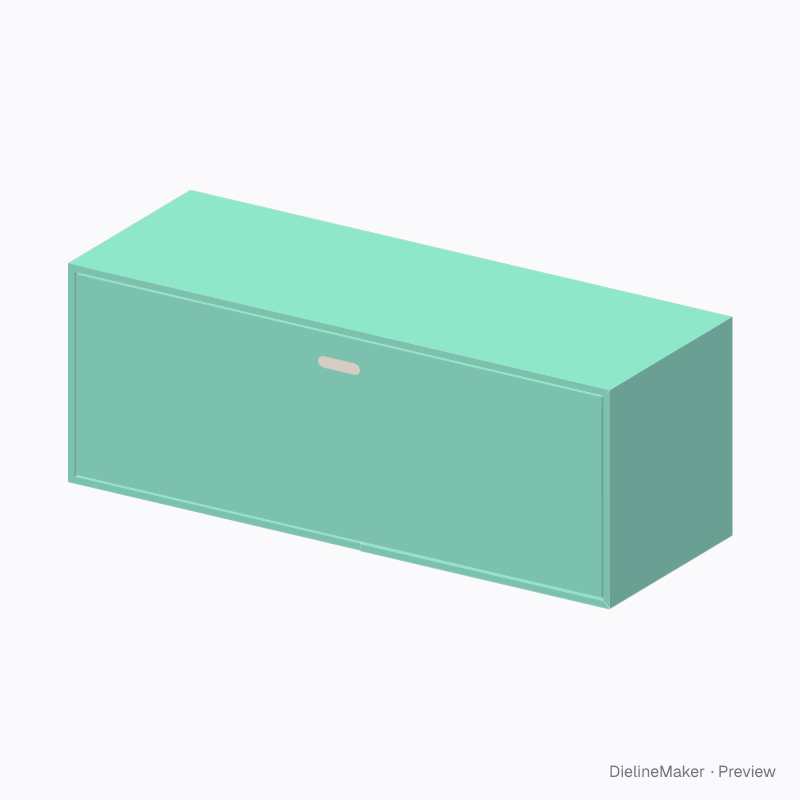

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureRigid
Macaron drawer box dieline
Long slide box for six macarons standing on edge. A ready-sized preset of the rigid drawer box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside145 × 52 × 50 mm
Outside153 × 55.3 × 56.5 mm
Flat blank285.6 × 192.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 145 · Depth 52 · Height 50 mm
- Size range
- Width 40–450 · Depth 40–450 · Height 15–200 mm
- Manufacturing
- 148.8 × 53.5 × 53 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Sleeve wrap, Tray wrap, Sleeve board, Tray board
- Board area
- 0.127 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 1.5 mm · 1.5 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Kiss cut
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.5 mm for Rigid greyboard 1.5 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base ×2Sleeve wrap | 82.5 × 55.3 | – |
| Left sideSleeve wrap | 56.5 × 55.3 | – |
| TopSleeve wrap | 153 × 55.3 | – |
| Right sideSleeve wrap | 56.5 × 55.3 | – |
| Left side back rimSleeve wrap | 56.5 × 1.8 | – |
| Left side back turn-inSleeve wrap | 52.8 × 15 | – |
| Left side front rimSleeve wrap | 56.5 × 1.8 | – |
| Left side front turn-inSleeve wrap | 52.8 × 15 | – |
| Top back rimSleeve wrap | 153 × 1.8 | – |
| Top back turn-inSleeve wrap | 149.3 × 15 | – |
| Top front rimSleeve wrap | 153 × 1.8 | – |
| Top front turn-inSleeve wrap | 149.3 × 15 | – |
| Right side back rimSleeve wrap | 56.5 × 1.8 | – |
| Right side back turn-inSleeve wrap | 52.8 × 15 | – |
| Right side front rimSleeve wrap | 56.5 × 1.8 | – |
| Right side front turn-inSleeve wrap | 52.8 × 15 | – |
29 more panels are listed in the editor’s structure step.
