Parametric structureRigid
Round rigid box dieline

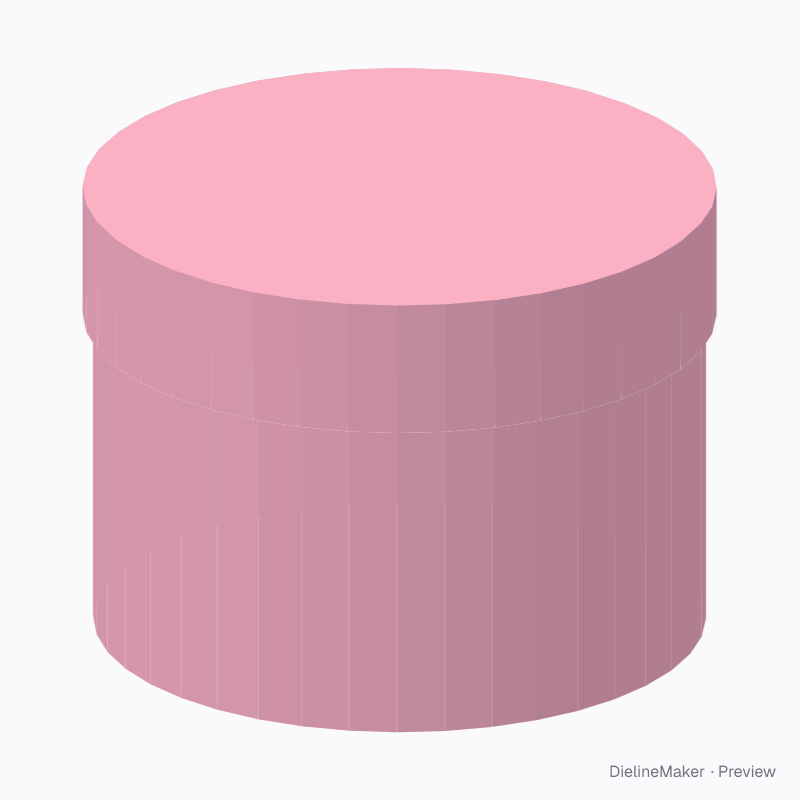

A hat box: a wrapped greyboard cylinder on an inset base disc, with a round lid that slides down over it. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 160 × 120 mm
OutsideØ 170 × 124.8 mm
Flat blank526.6 × 151.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Diameter 160 · Height 120 mm
- Size range
- Diameter 60–400 · Height 30–400 mm
- Manufacturing
- Ø 165 × 122 mm score to score · inside vs outside sizes
- Parts
- 8 parts — Base wrap, Base disc, Lid wrap, Lid disc, Base wall board, Base disc board, Lid wall board, Lid disc board
- Board area
- 0.280 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for

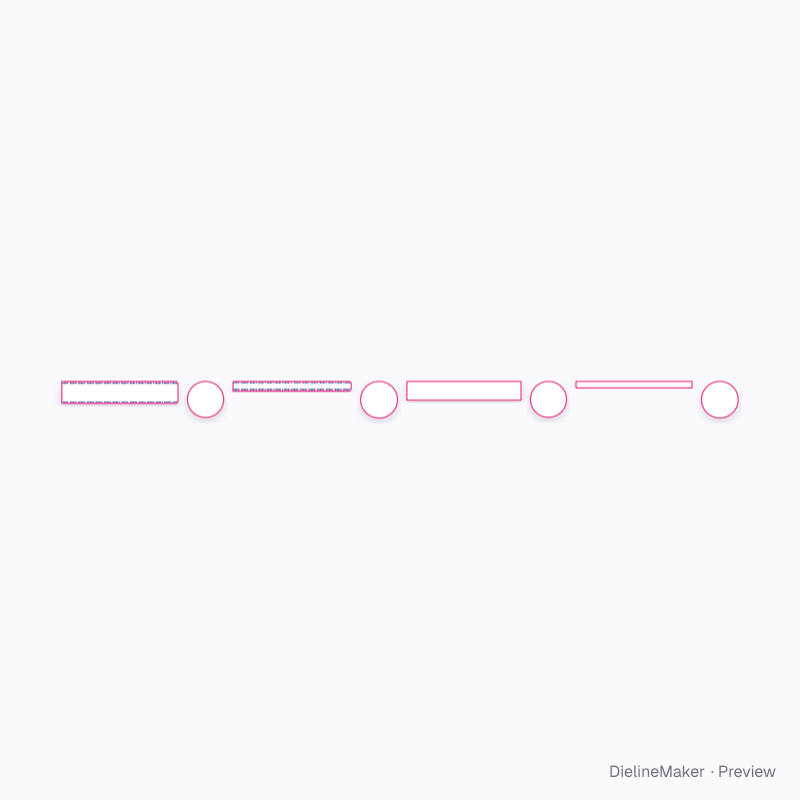

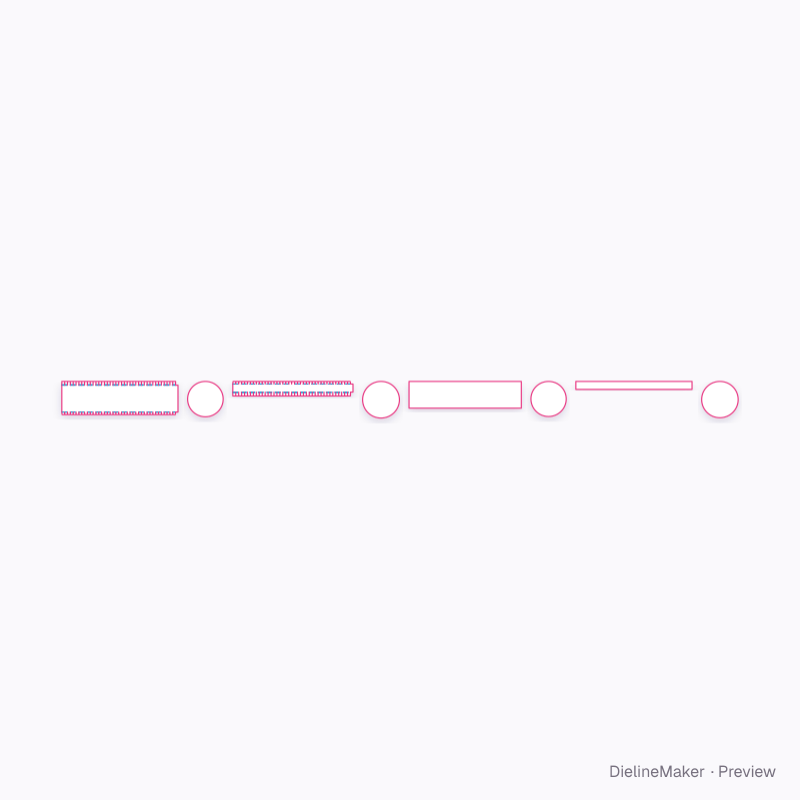

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
