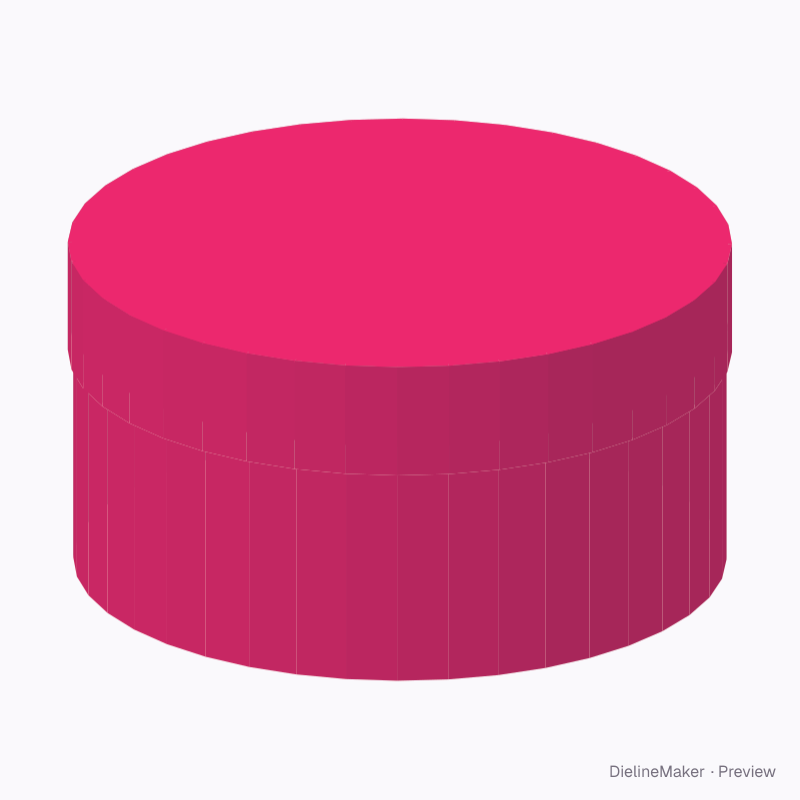

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureRigid
Hat box dieline
Classic round hat box with a deep lid. A ready-sized preset of the round rigid box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 330 × 170 mm
OutsideØ 340 × 174.8 mm
Flat blank1061.8 × 201.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Diameter 330 · Height 170 mm
- Size range
- Diameter 60–400 · Height 30–400 mm
- Manufacturing
- Ø 335 × 172 mm score to score · inside vs outside sizes
- Parts
- 8 parts — Base wrap, Base disc, Lid wrap, Lid disc, Base wall board, Base disc board, Lid wall board, Lid disc board
- Board area
- 0.901 m²
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back wall ×11Base wrap | 26.2 × 172.3 | – |
| Left wall ×9Base wrap | 26.2 × 172.3 | – |
| Front wall ×11Base wrap | 26.2 × 172.3 | – |
| Right wall ×9Base wrap | 26.2 × 172.3 | – |
| Glue lapBase wrap | 12 × 172.3 | – |
| Tab ×40Base wrap | 26.2 × 12 | – |
| Back wall rim ×11Base wrap | 26.2 × 2.3 | – |
| Back wall turn-in ×11Base wrap | 26.2 × 15 | – |
| Left wall rim ×9Base wrap | 26.2 × 2.3 | – |
| Left wall turn-in ×9Base wrap | 26.2 × 15 | – |
| Front wall rim ×11Base wrap | 26.2 × 2.3 | – |
| Front wall turn-in ×11Base wrap | 26.2 × 15 | – |
| Right wall rim ×9Base wrap | 26.2 × 2.3 | – |
| Right wall turn-in ×9Base wrap | 26.2 × 15 | – |
| Base discBase disc | 331.3 × 331.3 | – |
| Back wall ×11Lid wrap | 26.7 × 59.8 | – |
18 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Lid depthmm
The round rigid box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this hat box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
