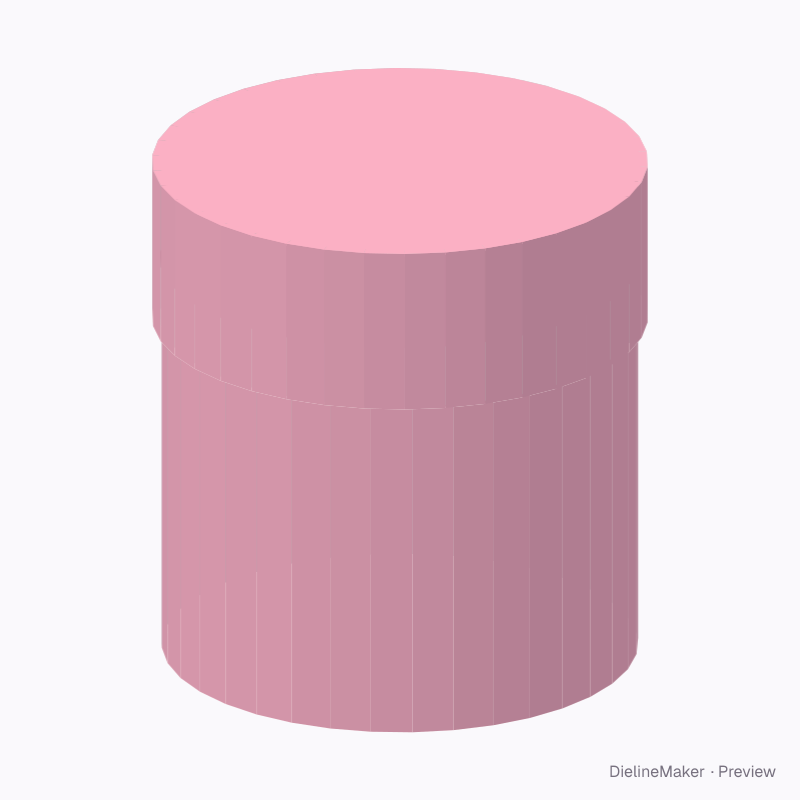

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureRigid
Small rose box dieline
Round box for a single preserved rose or a few stems. A ready-sized preset of the round rigid box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 110 × 120 mm
OutsideØ 118 × 123.8 mm
Flat blank363.4 × 150.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Diameter 110 · Height 120 mm
- Size range
- Diameter 60–400 · Height 30–400 mm
- Manufacturing
- Ø 113.8 × 121.5 mm score to score · inside vs outside sizes
- Parts
- 8 parts — Base wrap, Base disc, Lid wrap, Lid disc, Base wall board, Base disc board, Lid wall board, Lid disc board
- Board area
- 0.176 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 1.5 mm · 1.5 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.5 mm for Rigid greyboard 1.5 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back wall ×9Base wrap | 9.9 × 121.8 | – |
| Left wall ×9Base wrap | 9.9 × 121.8 | – |
| Front wall ×9Base wrap | 9.9 × 121.8 | – |
| Right wall ×9Base wrap | 9.9 × 121.8 | – |
| Glue lapBase wrap | 7.9 × 121.8 | – |
| Tab ×36Base wrap | 9.9 × 11.5 | – |
| Back wall rim ×9Base wrap | 9.9 × 1.8 | – |
| Back wall turn-in ×9Base wrap | 9.9 × 15 | – |
| Left wall rim ×9Base wrap | 9.9 × 1.8 | – |
| Left wall turn-in ×9Base wrap | 9.9 × 15 | – |
| Front wall rim ×9Base wrap | 9.9 × 1.8 | – |
| Front wall turn-in ×9Base wrap | 9.9 × 15 | – |
| Right wall rim ×9Base wrap | 9.9 × 1.8 | – |
| Right wall turn-in ×9Base wrap | 9.9 × 15 | – |
| Base discBase disc | 110.3 × 110.3 | – |
| Back wall ×9Lid wrap | 9.7 × 39.8 | – |
18 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Lid depthmm
