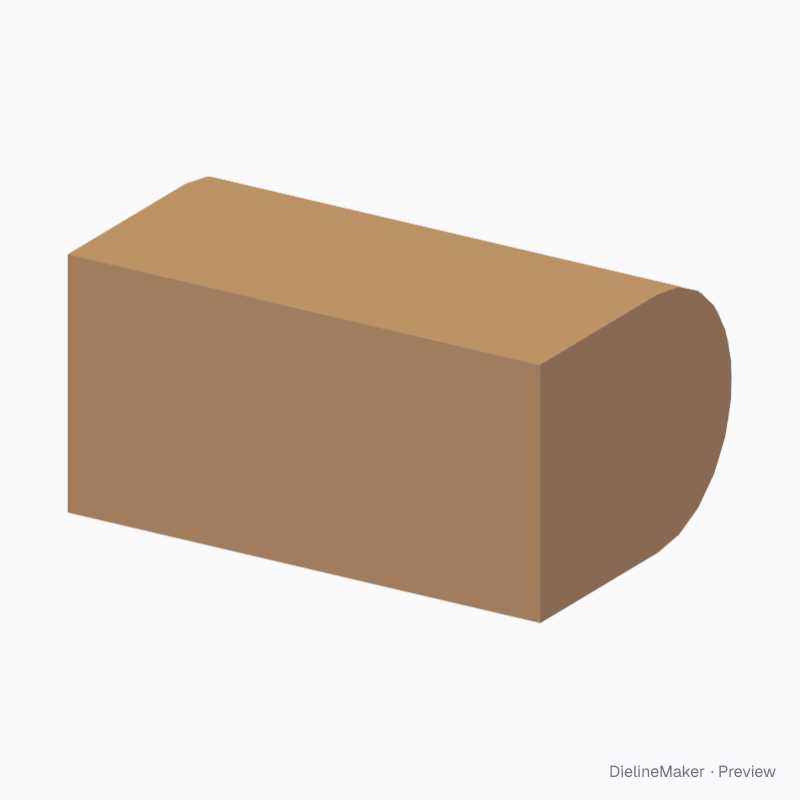

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ROUNDED-END-HINGED-01Trays & lids
Rounded ends, semicircular roof dieline
A carton with arched end walls and one broad cover hinged from the back that bends over both arches and closes with a front flap. Semicircular or shallower arches; optional carry slots in the roof. A ready-sized preset of the rounded-end carton with curved hinged roof — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 100 × 80 mm
Outside201 × 101 × 81 mm
Flat blank460 × 441.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ROUNDED-END-HINGED-01
- Inside size
- Length 200 · Depth 100 · Wall height 80 mm
- Size range
- Length 60–500 · Depth 40–300 · Wall height 20–300 mm
- Manufacturing
- 200.5 × 100.5 × 80.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.117 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute KE-flute WSBS 18 pt
- Good for

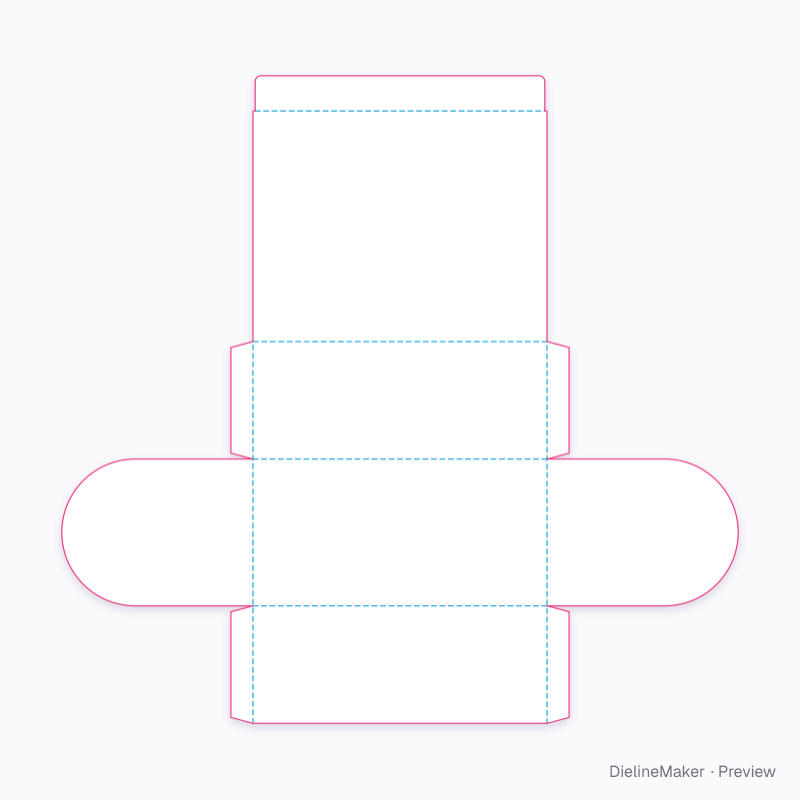

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ROUNDED-END-HINGED-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 200 × 100 | L × W |
| Back wall | 200 × 80 | L × H |
| Front wall | 200 × 80 | L × H |
| Left end wall | 130 × 100 | – × W |
| Right end wall | 130 × 100 | – × W |
| Glue flap ×4 | 15 × 80 | – × H |
| Curved roof | 200 × 15.7 | L × – |
| Curved roof (bend) ×9 | 200 × 15.7 | L × – |
| Front closure flap | 197 × 24 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Arch risemm
- Front flapmm
- Glue flapmm

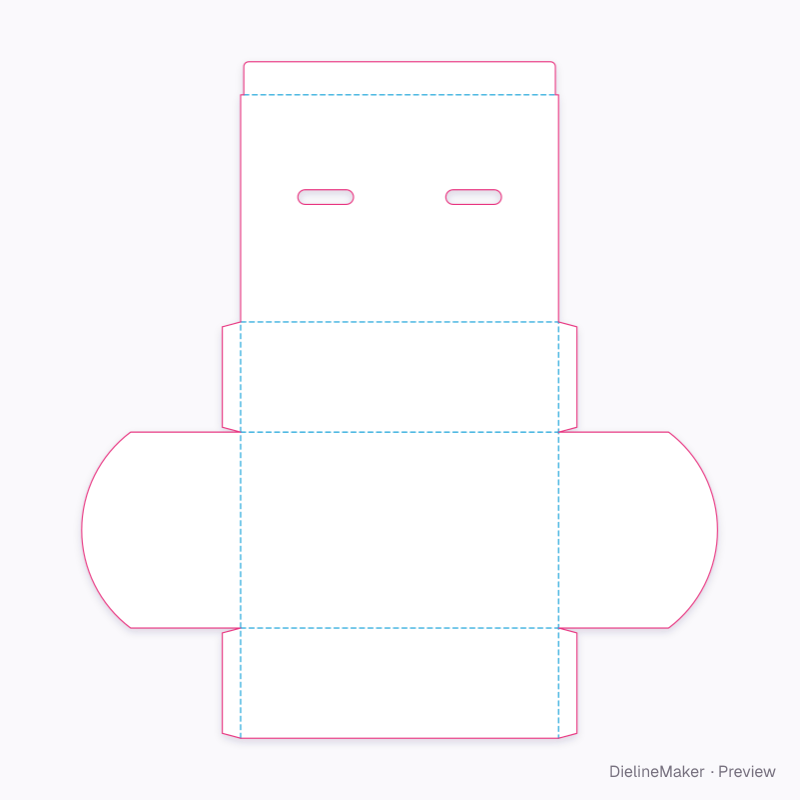

- Carry slots in roofon / off
