The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F20.36.00.00Trays & lids
Curved-top box (one piece) dieline
Barrel-top box: the curved top is part of the blank and tucks into the front wall. A ready-sized preset of the rounded-end tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 100 × 50 mm
Outside151 × 101 × 101 mm
Flat blank351 × 387.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F20.36.00.00
- Inside size
- Length (A) 150 · Width (B) 100 · Wall height 50 mm
- Size range
- Length (A) 40–500 · Width (B) 30–300 · Wall height 10–250 mm
- Manufacturing
- 150.5 × 100.5 × 50 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.085 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 300SBS 18 pt
- Good for

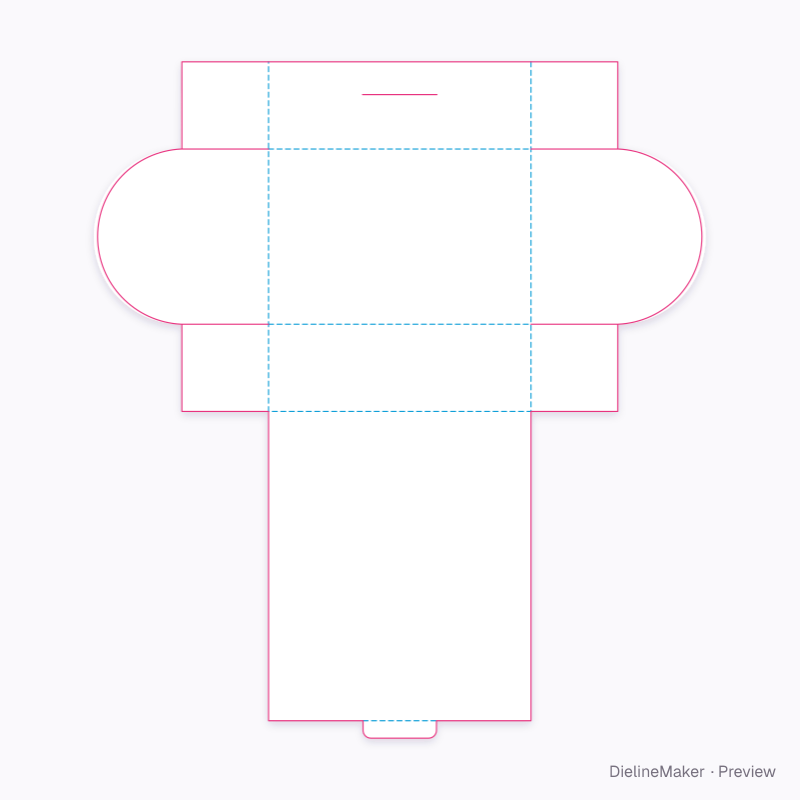

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F20.36.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 150.5 × 100.5 | L + T × W + T |
| Front wall | 150.5 × 50 | L + T × H |
| Back wall | 150.5 × 50 | L + T × H |
| Corner ear ×4 | 49.8 × 50 | – × H |
| Left end wall | 100.3 × 100.5 | – × W + T |
| Right end wall | 100.3 × 100.5 | – × W + T |
| Curved top | 150.5 × 3.6 | L + T × – |
| Curved top ×21 | 150.5 × 7.2 | L + T × – |
| Curved top (front lap) | 150.5 × 22.4 | L + T × – |
| Lock tab | 42.1 × 10 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction3 options
- Cover lapmm
- Lock tab widthmm
- Lock tab depthmm

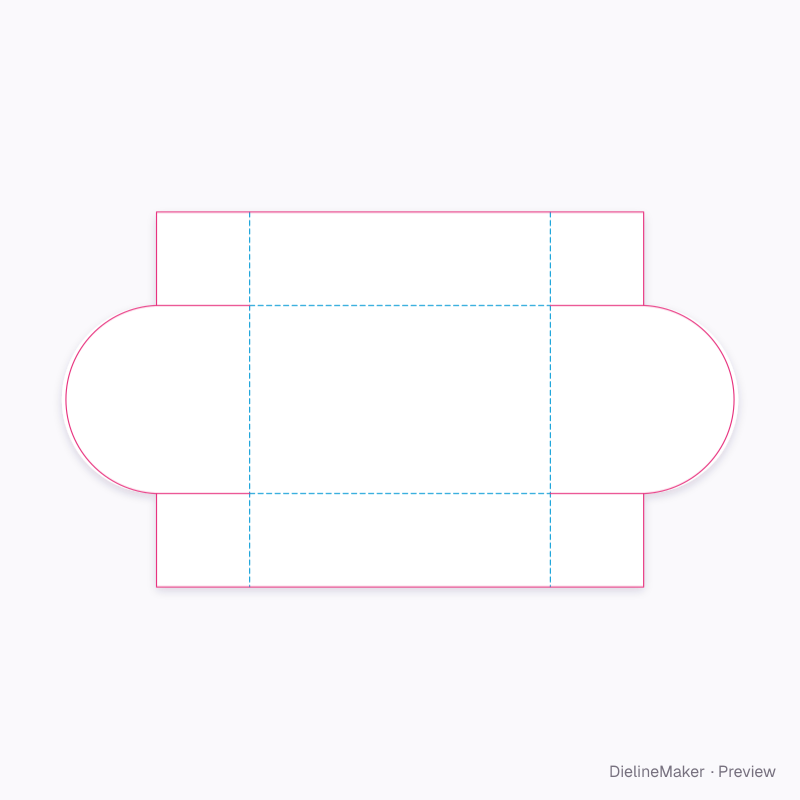

The rounded-end tray family
The same structure with sizes, boards and options set for a use.
Preset
Preset

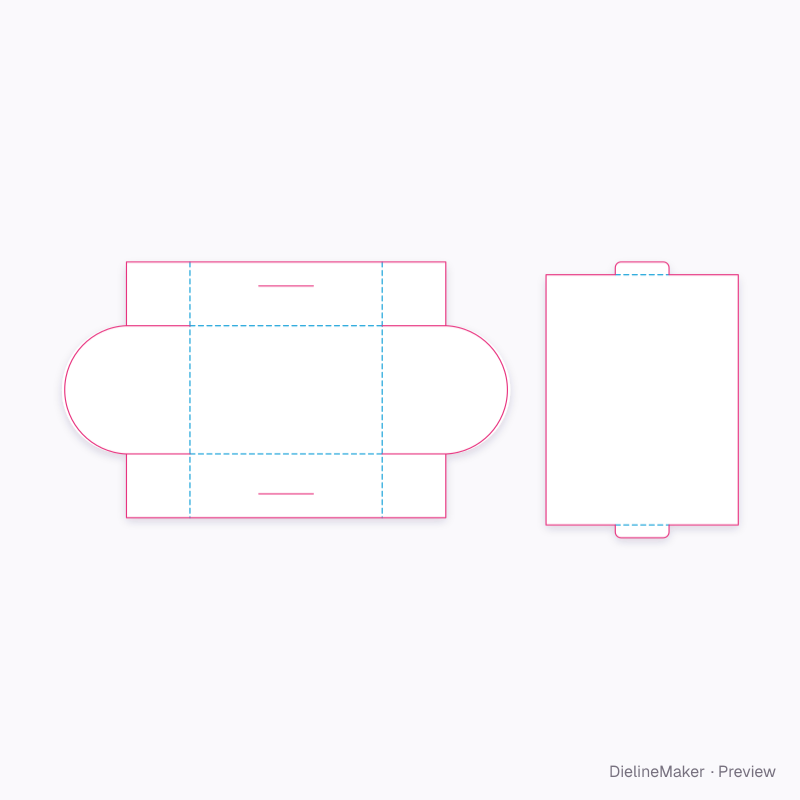

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this curved-top box (one piece) yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
