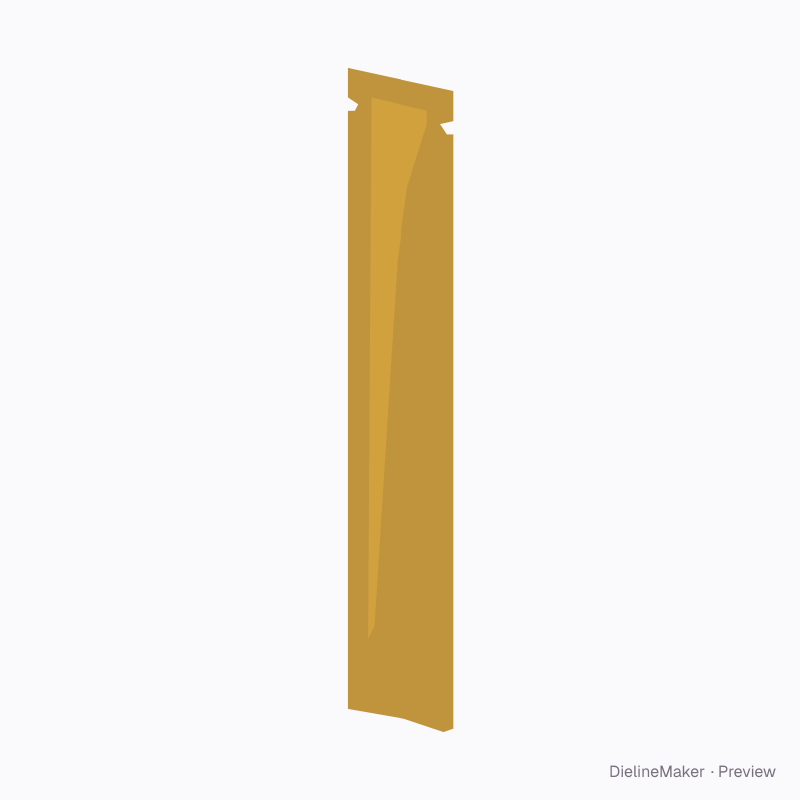

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-STICK-PACK-01Bags & pouches
Honey stick 25 × 140 mm dieline
Clear honey straw at the narrowest sachet width: 4-side seal, straight cut, tear notches at both top corners. A ready-sized preset of the sachet — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside25 × 140 mm
Outside25 × 140 mm
Flat blank25 × 140 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-STICK-PACK-01
- Inside size
- Width 25 · Height 140 mm
- Size range
- Width 25–250 · Height 30–320 mm
- Manufacturing
- 25 × 140 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front web, Back web
- Board area
- 0.007 m² · about 138 up on a 720 × 1020 mm sheet
- Default board
- Clear PET / PE laminate · 0.08 mm caliper
- Board options
- Met PET/PEWhite PET/PEClear PET/PEKraft/PE
- Good for

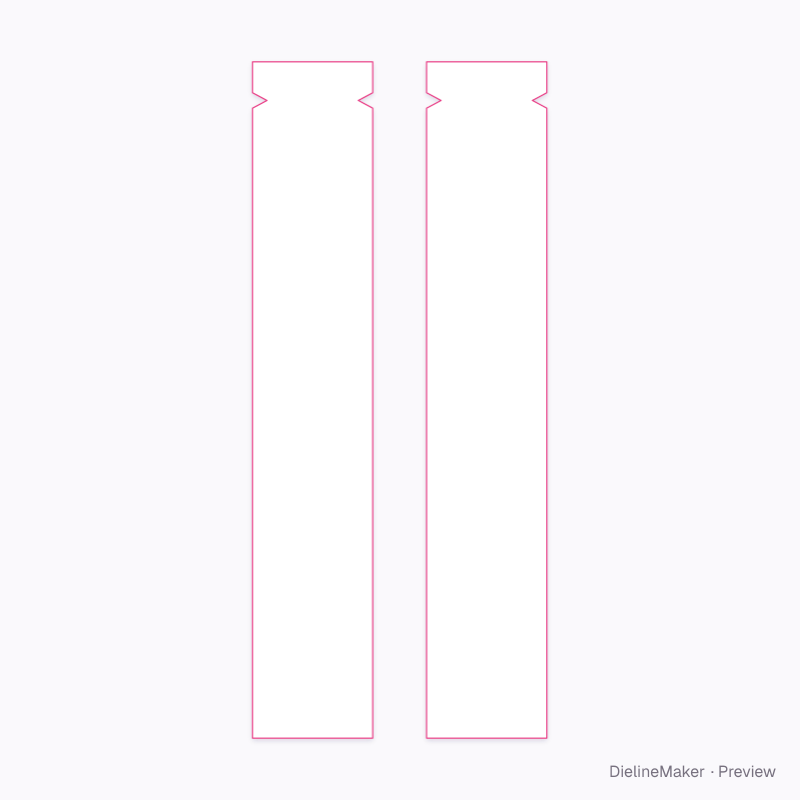

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Seal2 options
- Side sealsmm
- Top & bottom sealsmm
- Cut edge2 options
- Tear notcheson / off
- Notch from topmm
- Hang hole6 options
- Fill%
- Vacuum packedon / off
The sachet family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Before you choose this template
Size, materials, downloads and production checks.
Will the honey stick 25 × 140 mm dieline fit my product?
Clear honey straw at the narrowest sachet width: 4-side seal, straight cut, tear notches at both top corners. The default dimensions in inside-size mode are Width 25 mm, Height 140 mm. Measure your product and any inserts or wrapping, then set the template size. Check a physical sample with your contents before ordering production.
Can I change the size and design?
Yes. The supported ranges are Width 25–250 mm, Height 30–320 mm. At the default settings, the editor also exposes Seal, Side seals, Top & bottom seals, Cut edge, Tear notches, Notch from top and 3 more options. Add your own artwork and preview the result in 3D. The template geometry is rebuilt when its dimensions change.
Which materials can I choose?
The default is Clear PET / PE laminate (0.08 mm caliper). This structure allows Metallised PET / PE laminate, White PET / PE laminate, Clear PET / PE laminate, Kraft paper / PE laminate. Select the stock before checking fit, and ask your converter to confirm the grade and caliper for the intended product.
Which files can I download?
The template page offers dimensioned PDF, Illustrator (.ai via script), layered SVG and DXF cutting and crease geometry. After adding artwork in the editor, you can export a print-ready PDF and review the bleed, safe areas and dieline layers with your printer.
Is this dieline free?
Browsing the previews is free, and you can customize the template after signing in with Google. Template and print-file downloads require a Pro or Business plan. The Free plan allows one eligible download every 8 hours; free mockups, renders and videos carry a watermark. See the pricing page for the current plans.
Can I send the download straight to production?
Use the file as a starting point for a printer or converter review. Confirm the finished dimensions, stock, crease and cutting setup, assembly, bleed and artwork, then approve a physical sample. The 3D preview does not test strength, transit performance or suitability for particular contents.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this honey stick 25 × 140 mm yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
