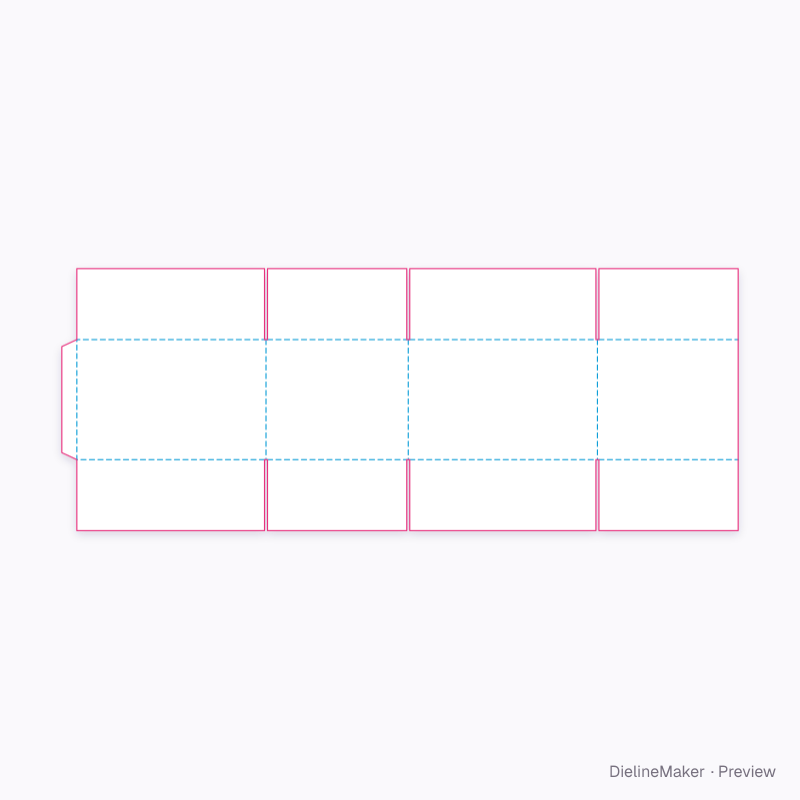

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0201Shipping
B-flute shipping case 400 × 300 × 250 dieline
Regular slotted container at 400 × 300 × 250 mm inside, B flute, cut and crease on separate layers for DXF export. A ready-sized preset of the shipping box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 250 mm
Outside406.4 × 306.4 × 262.8 mm
Flat blank1441.6 × 559.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0201
- Inside size
- Length 400 · Width 300 · Height 250 mm
- Size range
- Length 80–1200 · Width 60–1000 · Height 40–1200 mm
- Manufacturing
- 403.2 × 303.2 × 256.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.791 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How it folds
The b-flute shipping case 400 × 300 × 250 erects in 5 steps, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Fold the walls upLeft side, Back, Right side, Glue flap
- 2Fold the dust flaps inBottom inner flap and 1 more
- 3Close the end flapsBottom outer flap and 1 more
- 4Fold the dust flaps inTop inner flap and 1 more
- 5Close the end flapsTop outer flap and 1 more
How the blank is sized
Score-to-score panel sizes of this FEFCO 0201 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 403.2 × 256.4 | L + T × H + 2T |
| Left side | 303.2 × 256.4 | W + T × H + 2T |
| Back | 403.2 × 256.4 | L + T × H + 2T |
| Right side | 300 × 256.4 | W × H + 2T |
| Glue flap | 32 × 256.4 | – × H + 2T |
| Bottom outer flap | 400 × 151.6 | L × – |
| Bottom inner flap ×2 | 296.8 × 151.6 | W − T × – |
| Bottom outer flap | 396.8 × 151.6 | L − T × – |
| Top outer flap | 400 × 151.6 | L × – |
| Top inner flap ×2 | 296.8 × 151.6 | W − T × – |
| Top outer flap | 396.8 × 151.6 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Flap depthmm
- Open top (HSC)on / off
- Top flaps2 options
- Hand holeson / off
