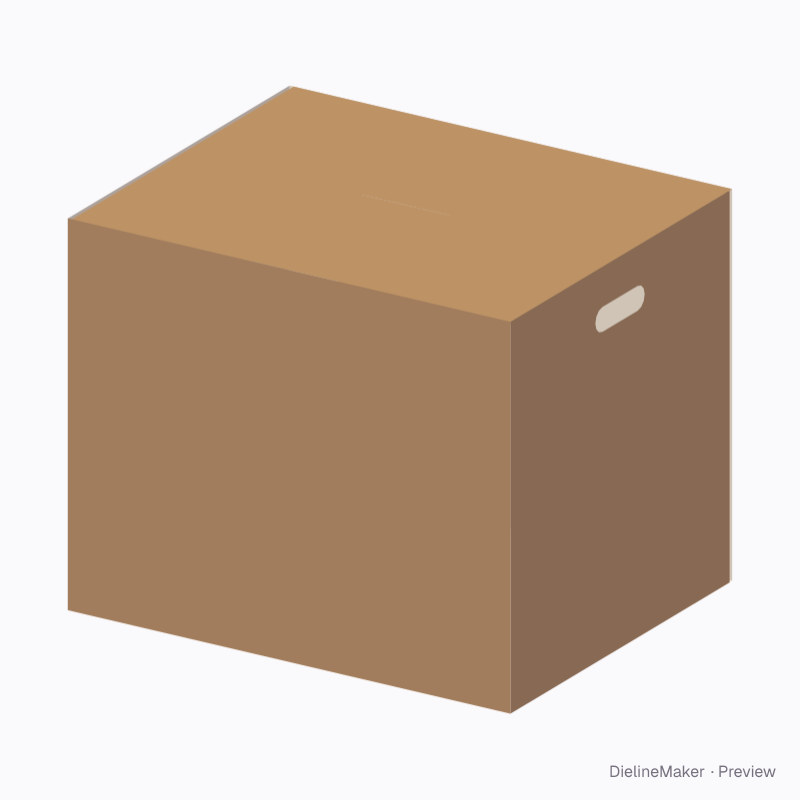

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0201Shipping
Heavy-duty carton 500×400×400 dieline
Double wall for heavy or fragile goods. A ready-sized preset of the shipping box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside500 × 400 × 400 mm
Outside509.2 × 409.2 × 418.4 mm
Flat blank1845.8 × 813.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0201
- Inside size
- Length 500 · Width 400 · Height 400 mm
- Size range
- Length 80–1200 · Width 60–1000 · Height 40–1200 mm
- Manufacturing
- 504.6 × 404.6 × 409.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 1.478 m²
- Default board
- EB double wall · 4.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

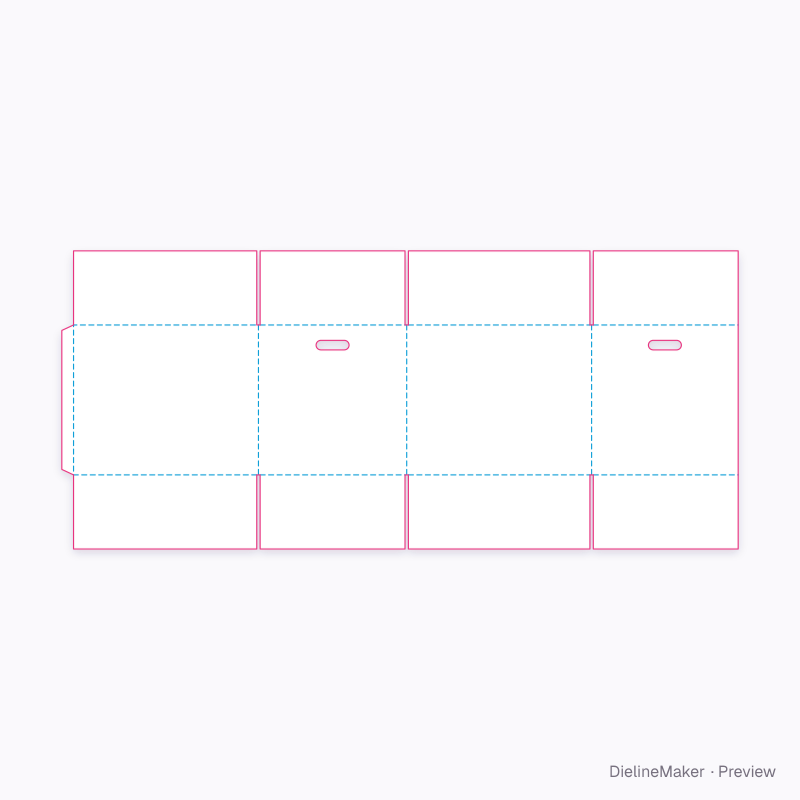

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0201 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (4.6 mm for EB double wall). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 504.6 × 409.2 | L + T × H + 2T |
| Left side | 404.6 × 409.2 | W + T × H + 2T |
| Back | 504.6 × 409.2 | L + T × H + 2T |
| Right side | 400 × 409.2 | W × H + 2T |
| Glue flap | 32 × 409.2 | – |
| Bottom outer flap | 500 × 202.3 | L × – |
| Bottom inner flap ×2 | 395.4 × 202.3 | – |
| Bottom outer flap | 495.4 × 202.3 | L − T × – |
| Top outer flap | 500 × 202.3 | L × – |
| Top inner flap ×2 | 395.4 × 202.3 | – |
| Top outer flap | 495.4 × 202.3 | L − T × – |
