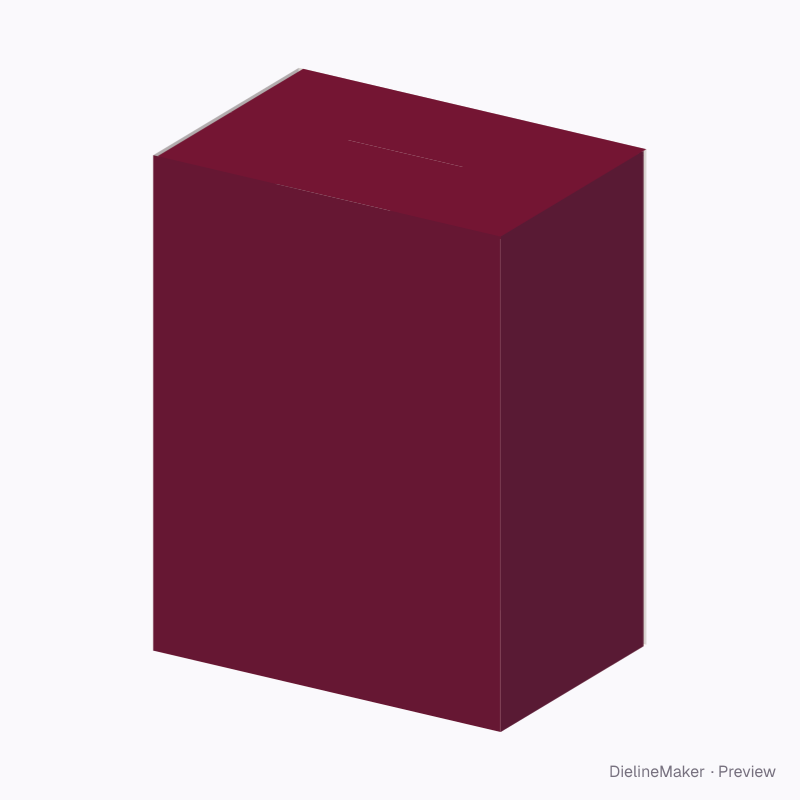

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0201Shipping
6-bottle wine shipper 255×170×330 dieline
Outer for six 750 ml bottles; pairs with the 6-bottle dividers. A ready-sized preset of the shipping box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside255 × 170 × 330 mm
Outside261.4 × 176.4 × 342.8 mm
Flat blank891.6 × 509.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0201
- Inside size
- Length 255 · Width 170 · Height 330 mm
- Size range
- Length 80–1200 · Width 60–1000 · Height 40–1200 mm
- Manufacturing
- 258.2 × 173.2 × 336.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.445 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0201 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 258.2 × 336.4 | L + T × H + 2T |
| Left side | 173.2 × 336.4 | W + T × H + 2T |
| Back | 258.2 × 336.4 | L + T × H + 2T |
| Right side | 170 × 336.4 | W × H + 2T |
| Glue flap | 32 × 336.4 | – × H + 2T |
| Bottom outer flap | 255 × 86.6 | L × – |
| Bottom inner flap ×2 | 166.8 × 86.6 | W − T × – |
| Bottom outer flap | 251.8 × 86.6 | L − T × – |
| Top outer flap | 255 × 86.6 | L × – |
| Top inner flap ×2 | 166.8 × 86.6 | W − T × – |
| Top outer flap | 251.8 × 86.6 | L − T × – |
