FEFCO 0201Shipping

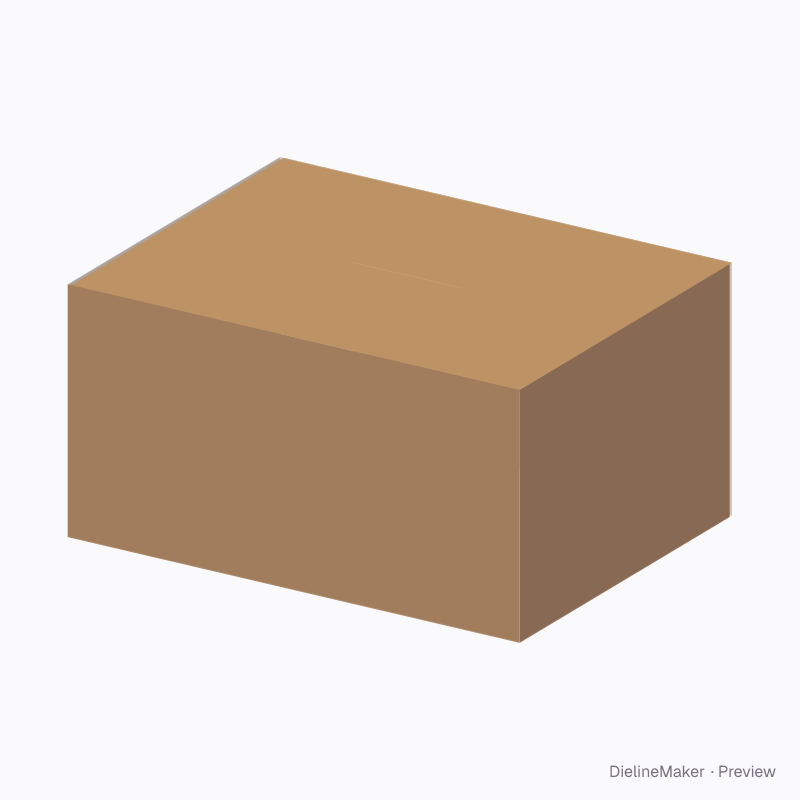

Small parcel 200×150×100 dieline
E-flute shipper for light single-item orders. A ready-sized preset of the shipping box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 150 × 100 mm
Outside203.2 × 153.2 × 106.4 mm
Flat blank724.8 × 254.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0201
- Inside size
- Length 200 · Width 150 · Height 100 mm
- Size range
- Length 80–1200 · Width 60–1000 · Height 40–1200 mm
- Manufacturing
- 201.6 × 151.6 × 103.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.180 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

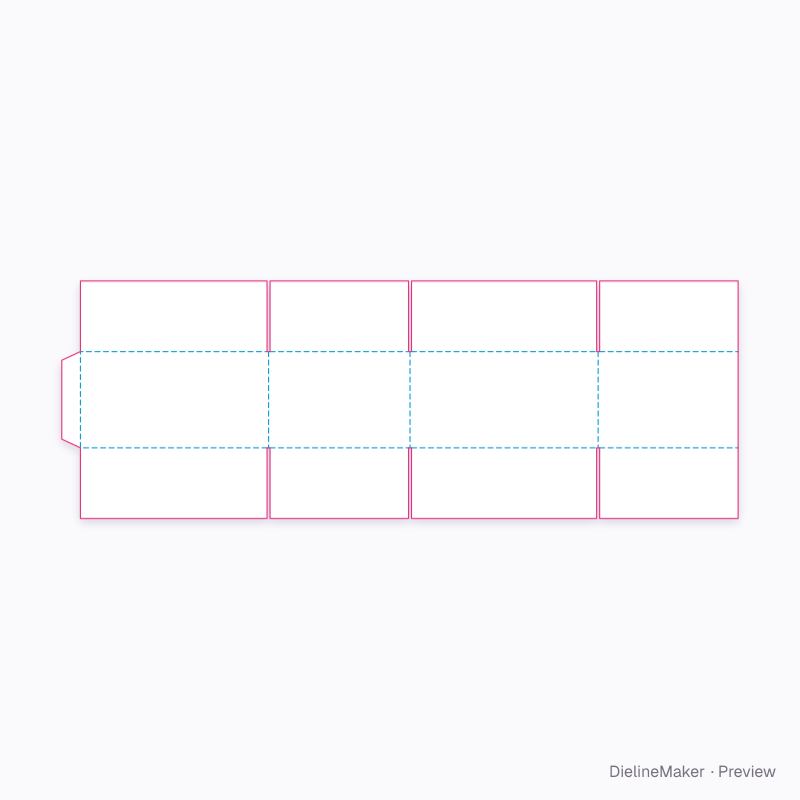

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0201 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 201.6 × 103.2 | L + T × H + 2T |
| Left side | 151.6 × 103.2 | W + T × H + 2T |
| Back | 201.6 × 103.2 | L + T × H + 2T |
| Right side | 150 × 103.2 | W × H + 2T |
| Glue flap | 20 × 103.2 | – × H + 2T |
| Bottom outer flap | 200 × 75.8 | L × – |
| Bottom inner flap ×2 | 148.4 × 75.8 | W − T × – |
| Bottom outer flap | 198.4 × 75.8 | L − T × – |
| Top outer flap | 200 × 75.8 | L × – |
| Top inner flap ×2 | 148.4 × 75.8 | W − T × – |
| Top outer flap | 198.4 × 75.8 | L − T × – |
