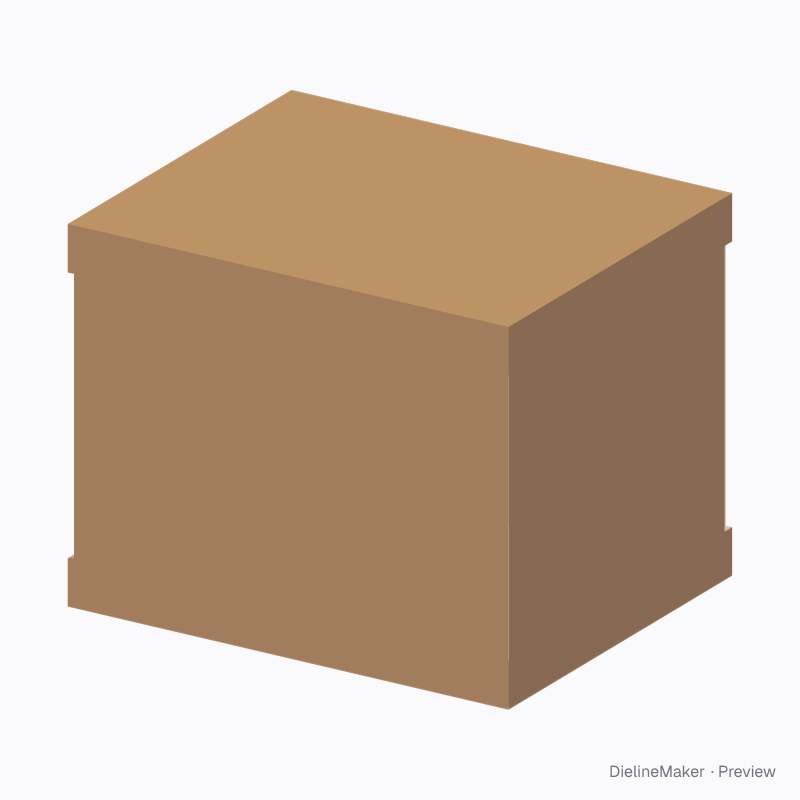

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0310Shipping
Bulk export shipper 1000×800×800 dieline
Pallet-footprint pack for bulk parts or export loads. A ready-sized preset of the sleeve box with two covers — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside1000 × 800 × 800 mm
Outside1023.4 × 832.6 × 809.2 mm
Flat blank3645.8 × 800 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0310
- Inside size
- Length 1000 · Width 800 · Height 800 mm
- Size range
- Length 150–1000 · Width 100–800 · Height 100–1200 mm
- Manufacturing
- 1004.6 × 804.6 × 800 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Sleeve, Top cover, Bottom cover
- Board area
- 5.434 m²
- Default board
- EB double wall · 4.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute W
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0310 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (4.6 mm for EB double wall). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontSleeve | 1004.6 × 800 | L + T × H |
| Left sideSleeve | 804.6 × 800 | W + T × H |
| BackSleeve | 1004.6 × 800 | L + T × H |
| Right sideSleeve | 800 × 800 | W × H |
| Glue flapSleeve | 32 × 800 | – |
| Pose rigTop cover | 100 × 66.2 | – |
| Cover topTop cover | 100 × 761.9 | – |
| BackTop cover | 1018.8 × 102.3 | – |
| FrontTop cover | 1018.8 × 102.3 | – |
| Left endTop cover | 102.3 × 828 | – |
| Right endTop cover | 102.3 × 828 | – |
| Corner flap ×4Top cover | 97.7 × 102.3 | – |
| Cover baseBottom cover | 1018.8 × 828 | – |
| FrontBottom cover | 1018.8 × 102.3 | – |
| BackBottom cover | 1018.8 × 102.3 | – |
| Left endBottom cover | 102.3 × 828 | – |
2 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Cover depthmm
The sleeve box with two covers family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this bulk export shipper 1000×800×800 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
