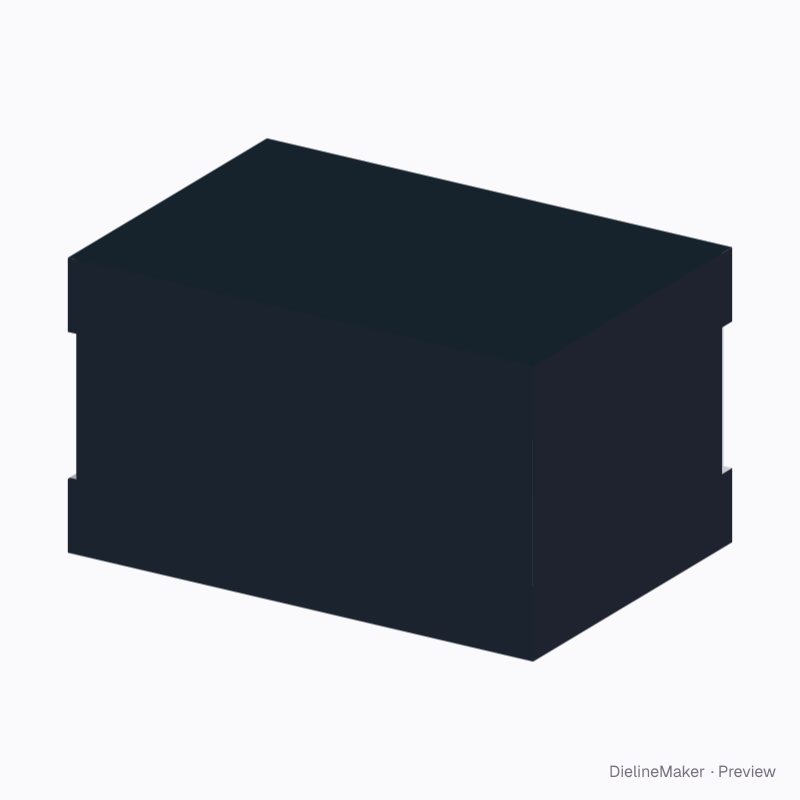

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0310Shipping
Textile bulk carton — Sleeve box with two covers dieline
Editable 600 × 400 × 350 mm starting point using sleeve box with two covers. Adjust the dimensions to your product before prototyping. A ready-sized preset of the sleeve box with two covers — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside600 × 400 × 350 mm
Outside617.8 × 424.2 × 356.4 mm
Flat blank2041.6 × 350 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0310
- Inside size
- Length 600 · Width 400 · Height 350 mm
- Size range
- Length 150–1000 · Width 100–800 · Height 100–1200 mm
- Manufacturing
- 603.2 × 403.2 × 350 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Sleeve, Top cover, Bottom cover
- Board area
- 1.661 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute W
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0310 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontSleeve | 603.2 × 350 | L + T × H |
| Left sideSleeve | 403.2 × 350 | W + T × H |
| BackSleeve | 603.2 × 350 | L + T × H |
| Right sideSleeve | 400 × 350 | W × H |
| Glue flapSleeve | 32 × 350 | – × H |
| Pose rigTop cover | 100 × 59.8 | – |
| Cover topTop cover | 100 × 361.2 | – |
| BackTop cover | 614.6 × 89.6 | – |
| FrontTop cover | 614.6 × 89.6 | – |
| Left endTop cover | 89.6 × 421 | – |
| Right endTop cover | 89.6 × 421 | – |
| Corner flap ×4Top cover | 86.4 × 89.6 | – |
| Cover baseBottom cover | 614.6 × 421 | – |
| FrontBottom cover | 614.6 × 89.6 | – |
| BackBottom cover | 614.6 × 89.6 | – |
| Left endBottom cover | 89.6 × 421 | – |
2 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Cover depthmm
