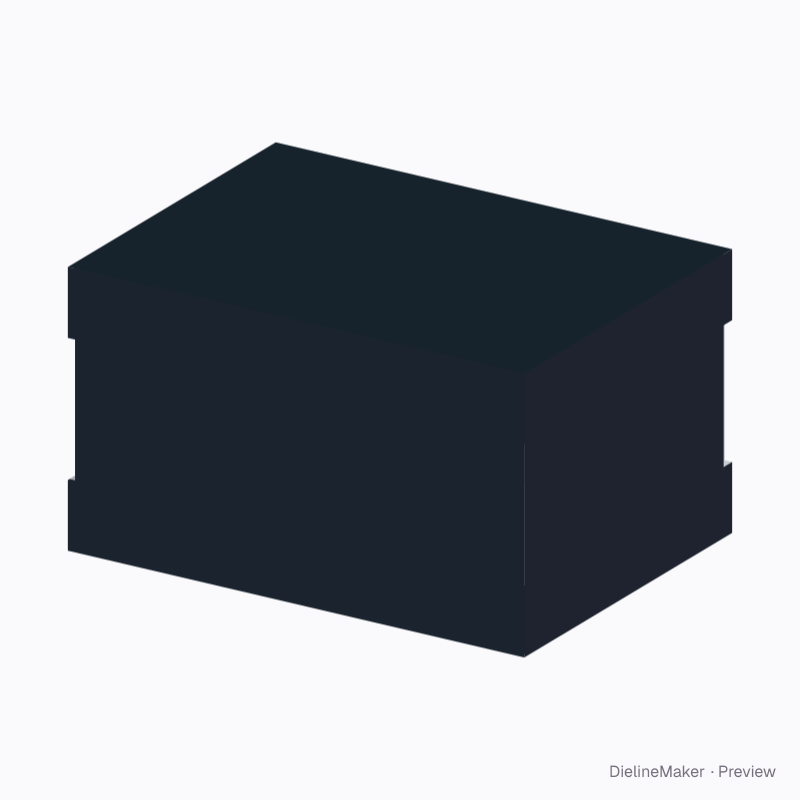

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0310Shipping
Display stock carton — Sleeve box with two covers dieline
Editable 700 × 500 × 400 mm starting point using sleeve box with two covers. Adjust the dimensions to your product before prototyping. A ready-sized preset of the sleeve box with two covers — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside700 × 500 × 400 mm
Outside717.8 × 524.2 × 406.4 mm
Flat blank2441.6 × 400 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0310
- Inside size
- Length 700 · Width 500 · Height 400 mm
- Size range
- Length 150–1000 · Width 100–800 · Height 100–1200 mm
- Manufacturing
- 703.2 × 503.2 × 400 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Sleeve, Top cover, Bottom cover
- Board area
- 2.298 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute W
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0310 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontSleeve | 703.2 × 400 | L + T × H |
| Left sideSleeve | 503.2 × 400 | W + T × H |
| BackSleeve | 703.2 × 400 | L + T × H |
| Right sideSleeve | 500 × 400 | W × H |
| Glue flapSleeve | 32 × 400 | – × H |
| Pose rigTop cover | 100 × 65.8 | – |
| Cover topTop cover | 100 × 455.2 | – |
| BackTop cover | 714.6 × 101.6 | – |
| FrontTop cover | 714.6 × 101.6 | – |
| Left endTop cover | 101.6 × 521 | – |
| Right endTop cover | 101.6 × 521 | – |
| Corner flap ×4Top cover | 98.4 × 101.6 | – |
| Cover baseBottom cover | 714.6 × 521 | – |
| FrontBottom cover | 714.6 × 101.6 | – |
| BackBottom cover | 714.6 × 101.6 | – |
| Left endBottom cover | 101.6 × 521 | – |
2 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Cover depthmm
