Parametric structureBags & pouches
Spout refill pouch with rigid grip dieline

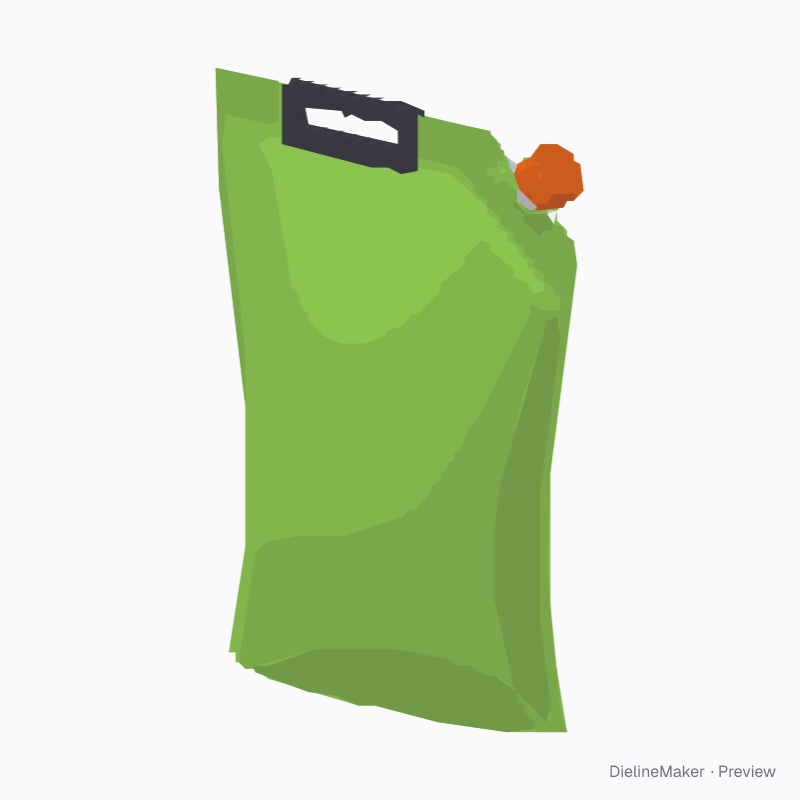

Stand-up pouch with a welded spout and screw cap in the top corner or the top centre. Front, back and bottom gusset print as separate webs; the food-contact inside stays unprinted. A ready-sized preset of the spout pouch — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside240 × 360 mm
Outside240 × 360 mm
Flat blank240 × 360 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 240 · Height 360 mm
- Size range
- Width 60–320 · Height 90–450 mm
- Manufacturing
- 240 × 360 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Front web, Back web, Bottom gusset, front handle reinforcement, back handle reinforcement
- Board area
- 0.206 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Metallised PET / PE laminate · 0.09 mm caliper
- Board options
- Met PET/PEWhite PET/PEClear PET/PEKraft/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 15 options; the template and 3D preview follow each change.
- Spout position2 options
- Bottom construction3 options
- Spout diametermm
- Bottom gussetmm
- Corner cutmm
- Cap diametermm
- Cap heightmm
- Cap colour10 options
- Hang / carry hole7 options
- Carry-slot shape2 options
- Carry-slot widthmm
- Carry-slot heightmm
- Separate welded reinforcement patcheson / off
- Rigid moulded gripon / off
- Fill%
The spout pouch family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this spout refill pouch with rigid grip yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
