The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A20.20.03.03Tuck end
Syrup bottle carton dieline
For a 150 ml amber syrup bottle with its dosing cup. A ready-sized preset of the straight tuck end — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside58 × 58 × 145 mm
Outside58.8 × 58.8 × 145.8 mm
Flat blank245.3 × 290.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A20.20.03.03
- Inside size
- Length 58 · Width 58 · Height 145 mm
- Size range
- Length 20–400 · Width 12–300 · Height 20–500 mm
- Manufacturing
- 58.4 × 58.4 × 145.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.050 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350F-fluteE-flute WPET 0.3SBS 18 pt
- Good for

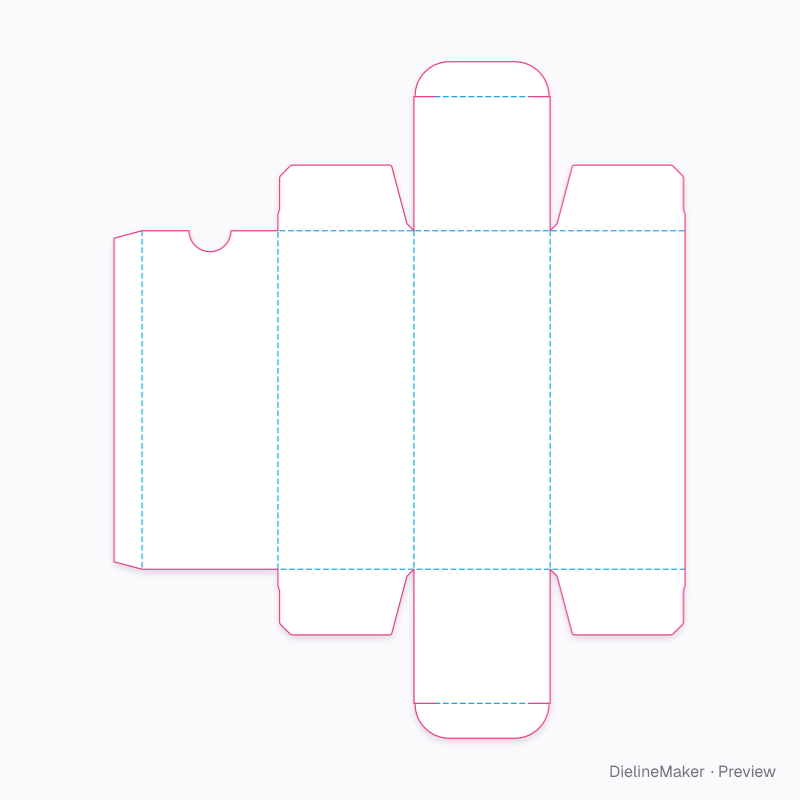

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A20.20.03.03 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 58.4 × 145.4 | – × H + T |
| Left side | 58.4 × 145.4 | – × H + T |
| Back | 58.4 × 145.4 | – × H + T |
| Right side | 58 × 145.4 | – × H + T |
| Glue flap | 12 × 145.4 | – × H + T |
| Top closure | 58.4 × 57.6 | – |
| Top tuck | 57.6 × 15 | – |
| Top dust flap | 58.4 × 28.2 | – |
| Top dust flap | 58 × 28.2 | – |
| Bottom closure | 58.4 × 57.6 | – |
| Bottom tuck | 57.6 × 15 | – |
| Bottom dust flap | 58.4 × 28.2 | – |
| Bottom dust flap | 58 × 28.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Notch radiusmm
- Windowon / off
- Cord handle holeson / off
- Safety clasp3 options
- Clasp widthmm
