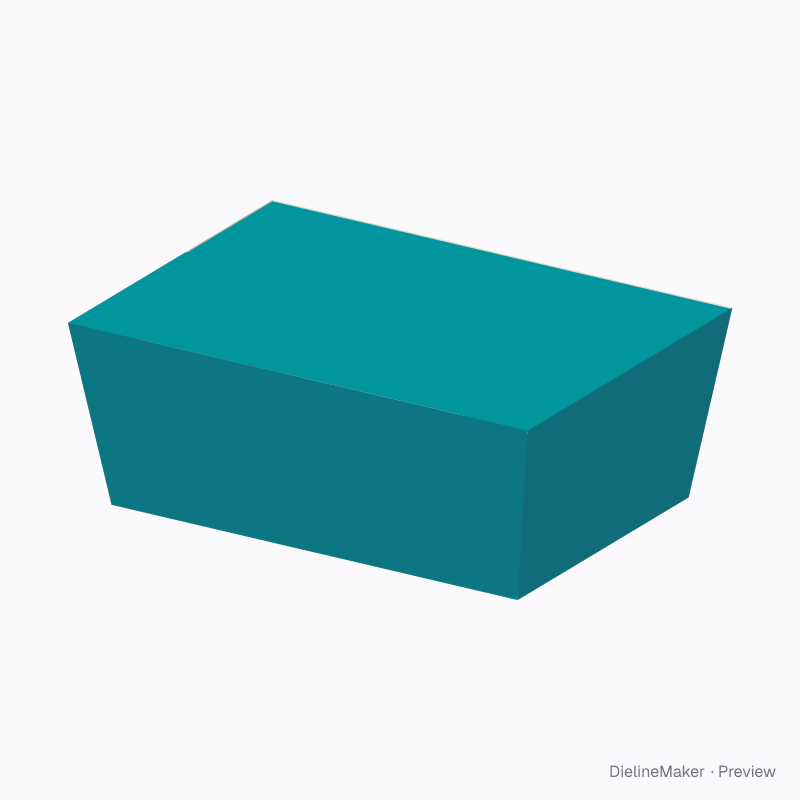

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Rice meal takeaway box — Paper take-out box dieline
Editable 190 × 135 × 70 mm starting point using paper take-out box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the paper take-out box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside190 × 135 × 70 mm
Outside191 × 136 × 70.5 mm
Flat blank393 × 421.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 190 · Width 135 · Height 70 mm
- Size range
- Length 80–300 · Width 60–250 · Height 30–130 mm
- Manufacturing
- 190.5 × 135.5 × 70.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.116 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- Food kraft, PE-lined 320 g · 0.5 mm caliper
- Board options
- Food kraft PEFood SBS PEKraft 350SBS 350SBS 18 pt
- Good for

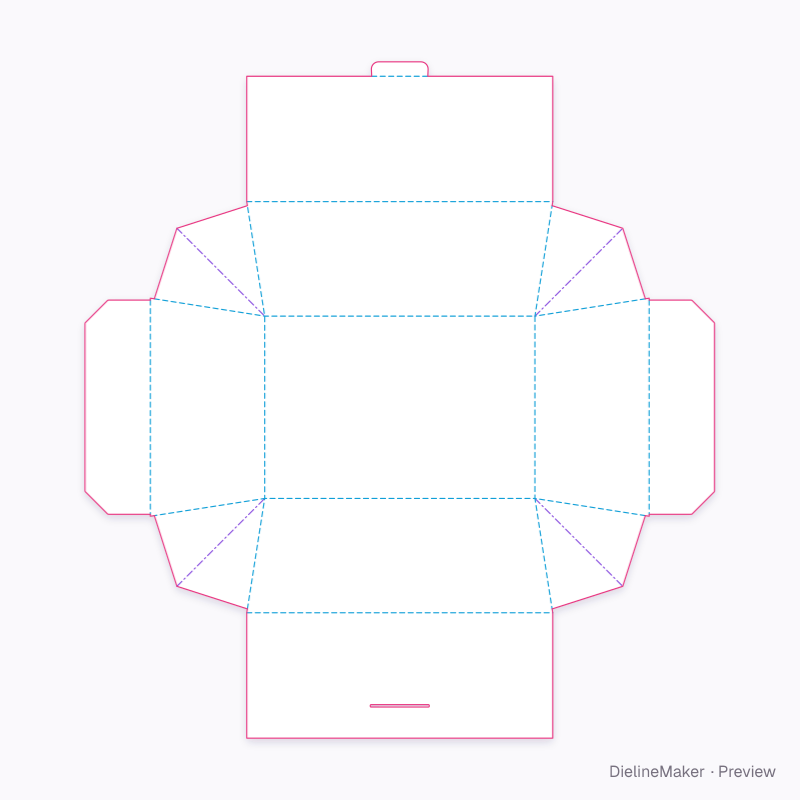

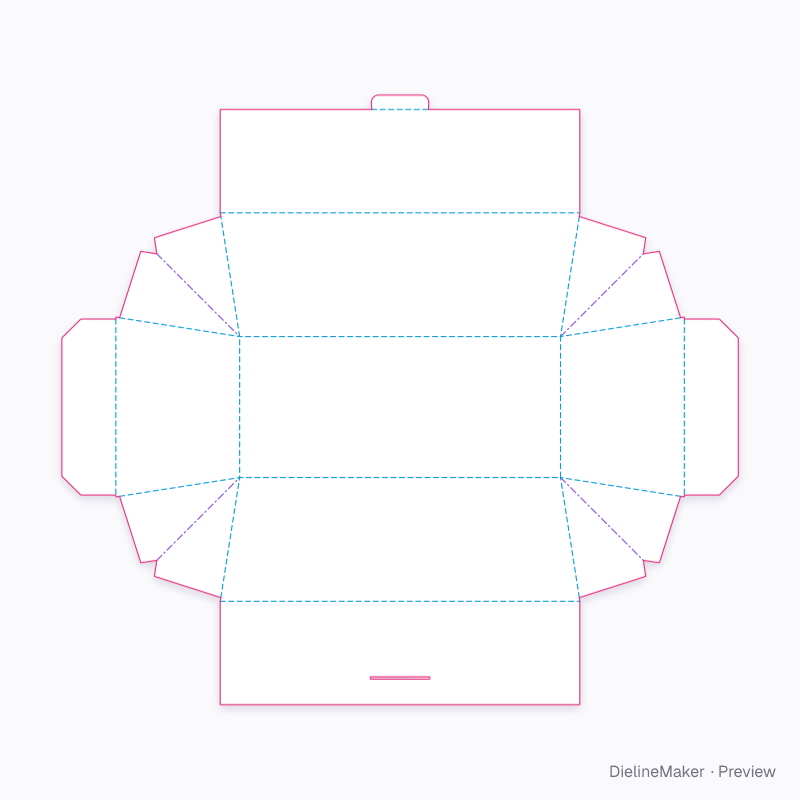

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Food kraft, PE-lined 320 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 168.7 × 113.7 | – |
| Front | 168.7 × 71.4 | – |
| Back | 168.7 × 71.4 | – |
| Left end | 71.4 × 113.7 | – |
| Right end | 71.4 × 113.7 | – |
| Corner gusset ×4 | 45.7 × 69.7 | – |
| Corner gusset ×3 | 77.5 × 41.1 | – |
| Corner gusset | 41.1 × 77.5 | – |
| Back flap | 191 × 78.2 | L + 2T × – |
| Front flap | 191 × 78.2 | L + 2T × – |
| End flap ×2 | 40.8 × 133.6 | – |
| Lock tab | 35 × 9 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Wall taper°
- Flap overlapmm
- End flap depthmm
- Lock tabon / off
- Tab widthmm
- Windowon / off
