Parametric structureFood
Take-out box #2 (49 oz) dieline
Shallow container about 8⅜ × 6 in at the top for flat meals and stir-fries. A ready-sized preset of the paper take-out box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside213 × 156 × 47 mm
Outside214 × 157 × 47.5 mm
Flat blank383.7 × 426.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 213 · Width 156 · Height 47 mm
- Size range
- Length 80–300 · Width 60–250 · Height 30–130 mm
- Manufacturing
- 213.5 × 156.5 × 47.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.120 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- Food kraft, PE-lined 320 g · 0.5 mm caliper
- Board options
- Food kraft PEFood SBS PEKraft 350SBS 350SBS 18 pt
- Good for

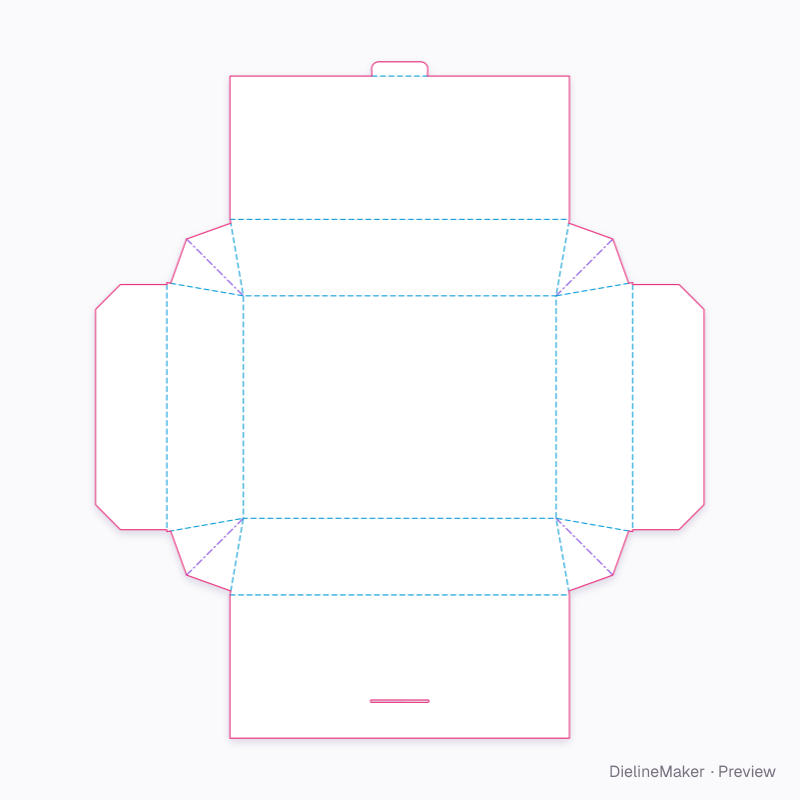

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Food kraft, PE-lined 320 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 197.2 × 140.2 | – |
| Front | 197.2 × 48.2 | – |
| Back | 197.2 × 48.2 | – |
| Left end | 48.2 × 140.2 | – |
| Right end | 48.2 × 140.2 | – |
| Corner gusset ×4 | 29.1 × 46.5 | – |
| Corner gusset ×3 | 50.6 × 26.7 | – |
| Corner gusset | 26.7 × 50.6 | – |
| Back flap | 214 × 90.3 | L + 2T × – |
| Front flap | 214 × 90.3 | L + 2T × – |
| End flap ×2 | 45 × 154.5 | – |
| Lock tab | 35 × 9 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Wall taper°
- Flap overlapmm
- End flap depthmm
- Lock tabon / off
- Tab widthmm
- Windowon / off
