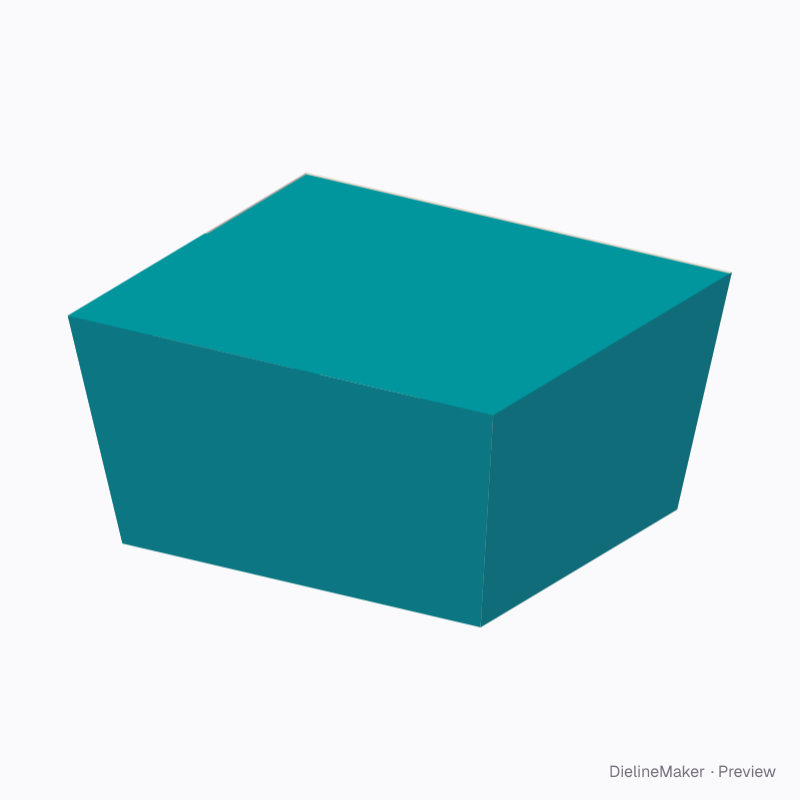

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Take-out box #1 (26 oz) dieline
Small take-out container, about 5 × 4½ in at the top and 2½ in deep. A ready-sized preset of the paper take-out box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside126 × 113 × 63 mm
Outside127 × 114 × 63.5 mm
Flat blank303.9 × 362.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 126 · Width 113 · Height 63 mm
- Size range
- Length 80–300 · Width 60–250 · Height 30–130 mm
- Manufacturing
- 126.5 × 113.5 × 63.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.073 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Food kraft, PE-lined 320 g · 0.5 mm caliper
- Board options
- Food kraft PEFood SBS PEKraft 350SBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Food kraft, PE-lined 320 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 106.9 × 93.9 | – |
| Front | 106.9 × 64.3 | – |
| Back | 106.9 × 64.3 | – |
| Left end | 64.3 × 93.9 | – |
| Right end | 64.3 × 93.9 | – |
| Corner gusset ×4 | 41 × 62.6 | – |
| Corner gusset ×4 | 69.5 × 36.9 | – |
| Back flap | 127 × 65.6 | L + 2T × – |
| Front flap | 127 × 65.5 | L + 2T × – |
| End flap ×2 | 34.2 × 111.6 | – |
| Lock tab | 27.9 × 9 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Wall taper°
- Flap overlapmm
- End flap depthmm
- Lock tabon / off
- Tab widthmm
- Windowon / off
