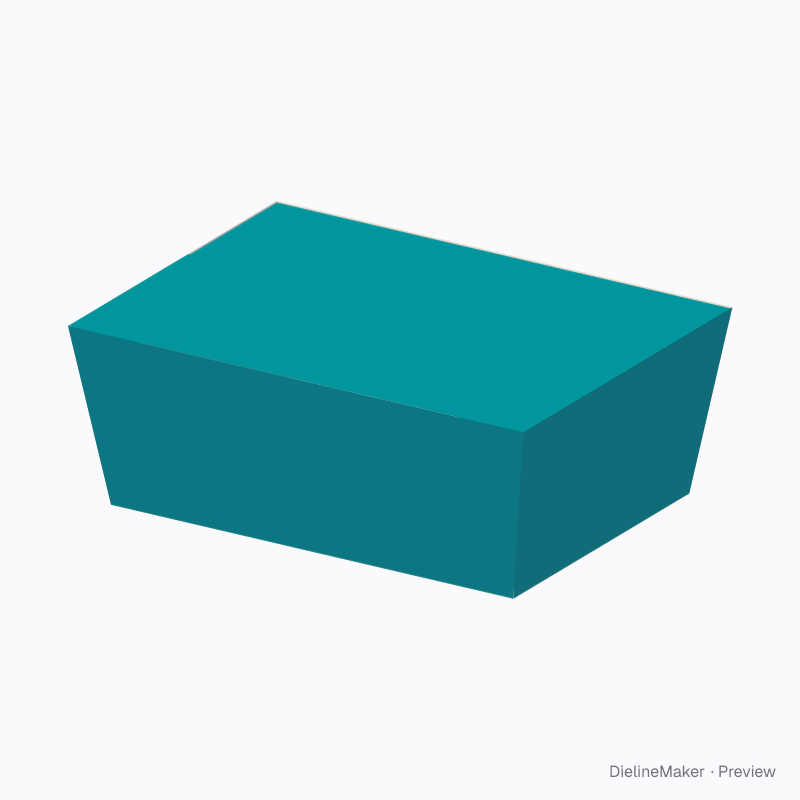

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Snack portion takeaway box — Paper take-out box dieline
Editable 150 × 110 × 55 mm starting point using paper take-out box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the paper take-out box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 110 × 55 mm
Outside151 × 111 × 55.5 mm
Flat blank312.4 × 342.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 150 · Width 110 · Height 55 mm
- Size range
- Length 80–300 · Width 60–250 · Height 30–130 mm
- Manufacturing
- 150.5 × 110.5 × 55.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.074 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Food kraft, PE-lined 320 g · 0.5 mm caliper
- Board options
- Food kraft PEFood SBS PEKraft 350SBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Food kraft, PE-lined 320 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 133.4 × 93.4 | – |
| Front | 133.4 × 56.2 | – |
| Back | 133.4 × 56.2 | – |
| Left end | 56.2 × 93.4 | – |
| Right end | 56.2 × 93.4 | – |
| Corner gusset ×4 | 35.6 × 54.4 | – |
| Corner gusset ×4 | 60.4 × 32 | – |
| Back flap | 151 × 63.8 | L + 2T × – |
| Front flap | 151 × 63.8 | L + 2T × – |
| End flap ×2 | 33.3 × 108.6 | – |
| Lock tab | 33.2 × 9 | – |
