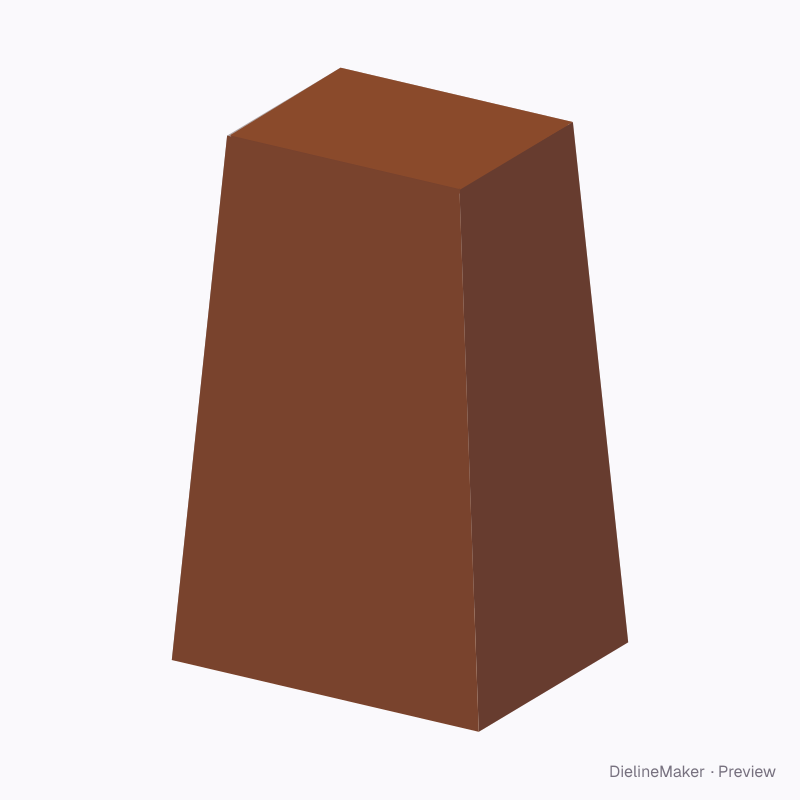

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA C20.20.20.20Shapes
Tapered candle box 90×70×140 dieline
A pillar-candle carton that narrows to the top, closed with reverse tucks. A ready-sized preset of the tapered tube carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 70 × 140 mm
Outside91 × 71 × 142 mm
Flat blank326 × 310.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA C20.20.20.20
- Inside size
- Base length 90 · Base width 70 · Height 140 mm
- Size range
- Base length 30–400 · Base width 30–400 · Height 30–500 mm
- Manufacturing
- 90.5 × 70.5 × 141 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.060 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350GD2 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA C20.20.20.20 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
