ECMA C20.20.20.20Shapes
Tapered perfume carton 60×45×120 dieline
A slim tapered outer for a fragrance bottle. A ready-sized preset of the tapered tube carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside60 × 45 × 120 mm
Outside61.2 × 46.2 × 122.4 mm
Flat blank218.7 × 233.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA C20.20.20.20
- Inside size
- Base length 60 · Base width 45 · Height 120 mm
- Size range
- Base length 30–400 · Base width 30–400 · Height 30–500 mm
- Manufacturing
- 60.6 × 45.6 × 121.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.031 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350GD2 350SBS 18 pt
- Good for

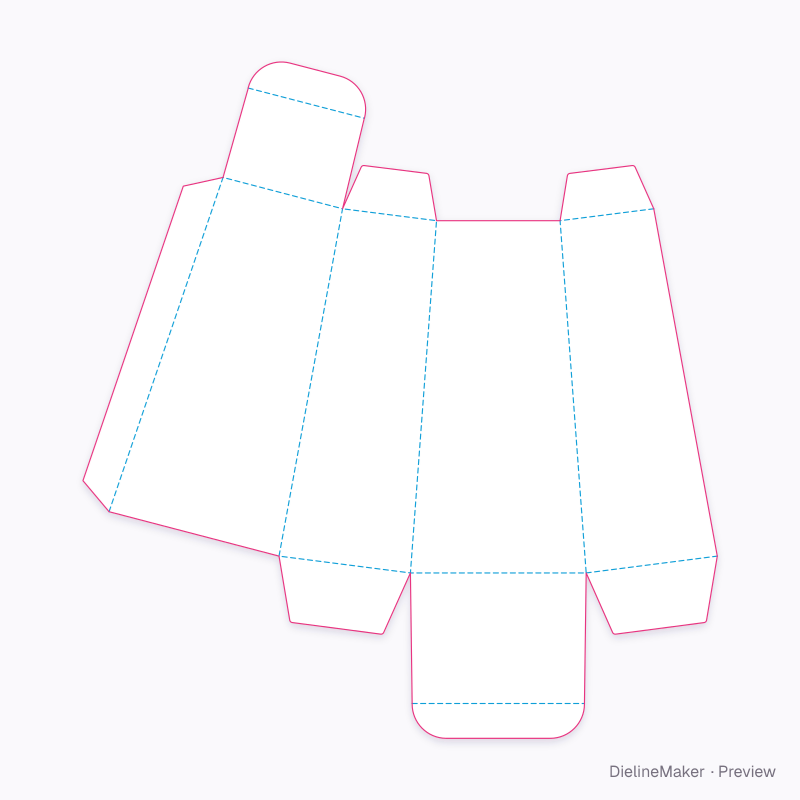

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA C20.20.20.20 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 60.4 × 121.7 | – |
| Left side | 45.5 × 121.7 | – |
| Front | 60.6 × 121.4 | L + T × – |
| Right side | 45.5 × 121.7 | – |
| Glue flap | 12 × 121.7 | – |
| Dust flap ×2 | 32.6 × 15.7 | – |
| Top closure | 42.6 × 32 | – |
| Top tuck | 41.4 × 12 | – |
| Dust flap ×2 | 45.6 × 22.2 | W + T × – |
| Bottom closure | 60.6 × 45 | L + T × W |
| Bottom tuck | 59.4 × 12 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Ends2 options
- Top lengthmm
- Top widthmm
- Tuck depthmm
