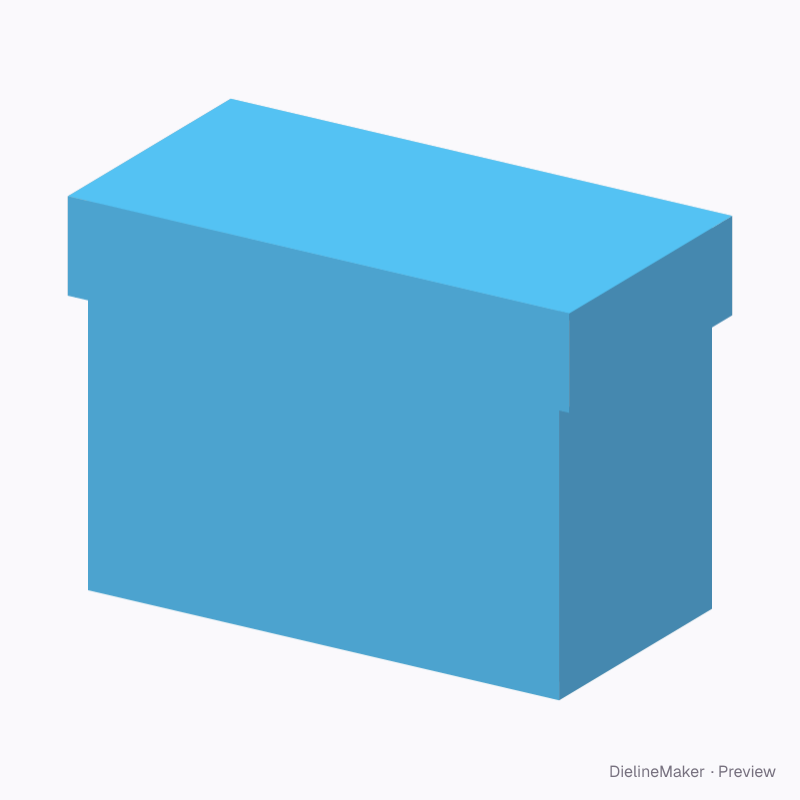

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTrays & lids
Seed packet box 8 × 4¼ × 6¼ in dieline
Shoe-box style project box with a removable lid for twenty 4 × 6 in seed packets stood on end. A ready-sized preset of the telescope box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside203 × 108 × 159 mm
Outside226.2 × 118.4 × 162.2 mm
Flat blank530.6 × 429.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 203 · Width 108 · Height 159 mm
- Size range
- Length 40–700 · Width 30–500 · Height 15–300 mm
- Manufacturing
- 211 × 109.6 × 159.8 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Base, Lid
- Board area
- 0.243 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- FBB 400SBS 350Kraft 350Black 350GD2 350E-flute KE-flute WF-fluteSBS 18 pt
- Good for

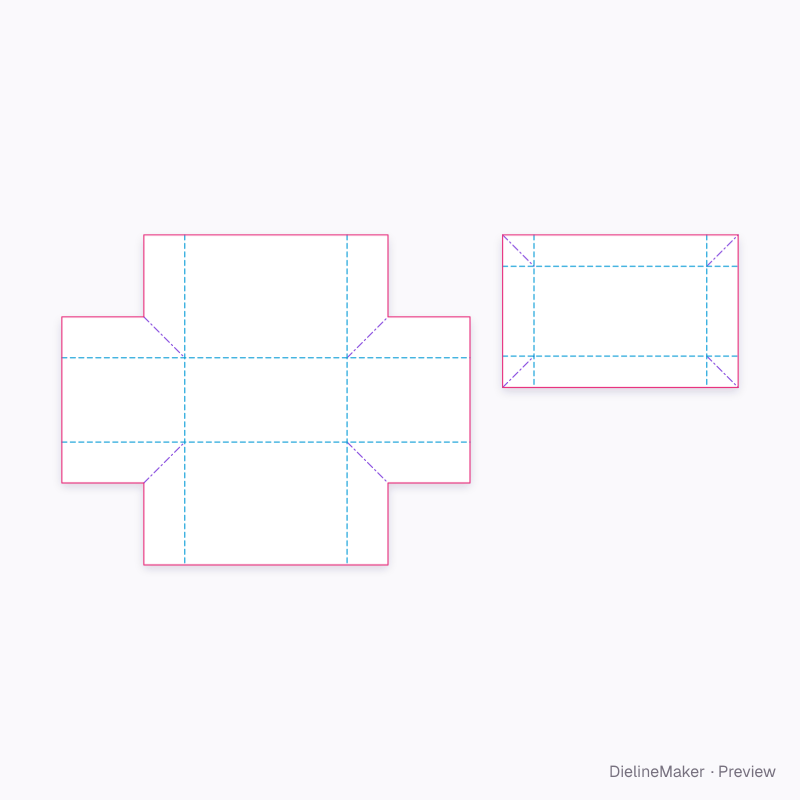

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How it folds
The seed packet box 8 × 4¼ × 6¼ in erects in 1 step, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Fold the gussetsFront, Back, Left end, Right end, Corner web and 27 more
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseBase | 211 × 109.6 | – × W + T |
| FrontBase | 211 × 159.8 | – × H + T/2 |
| BackBase | 211 × 159.8 | – × H + T/2 |
| Left endBase | 159.8 × 109.6 | H + T/2 × W + T |
| Right endBase | 159.8 × 109.6 | H + T/2 × W + T |
| Corner web ×4Base | 53.2 × 159.8 | – × H + T/2 |
| Corner web ×3Base | 75.2 × 113 | – |
| Corner webBase | 113 × 75.2 | – |
| Lid topLid | 224.6 × 116.8 | – |
| BackLid | 224.6 × 40.8 | – |
| FrontLid | 224.6 × 40.8 | – |
| Left endLid | 40.8 × 116.8 | – |
| Right endLid | 40.8 × 116.8 | – |
| Corner web ×4Lid | 40.8 × 40.8 | – |
| Corner web ×2Lid | 57.7 × 28.8 | – |
| Corner web ×2Lid | 28.8 × 57.7 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Lid depthmm
- Thumb notcheson / off
- Aligned end hand holeson / off
- Windowon / off
The telescope box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Before you choose this template
Size, materials, downloads and production checks.
Will the seed packet box 8 × 4¼ × 6¼ in dieline fit my product?
Shoe-box style project box with a removable lid for twenty 4 × 6 in seed packets stood on end. The default dimensions in inside-size mode are Length 203 mm, Width 108 mm, Height 159 mm. Measure your product and any inserts or wrapping, then set the template size. Check a physical sample with your contents before ordering production.
Can I change the size and design?
Yes. The supported ranges are Length 40–700 mm, Width 30–500 mm, Height 15–300 mm. At the default settings, the editor also exposes Lid depth, Thumb notches, Aligned end hand holes, Window. Add your own artwork and preview the result in 3D. The template geometry is rebuilt when its dimensions change.
Which materials can I choose?
The default is E-flute kraft / kraft (1.6 mm caliper). This structure allows Folding boxboard 400 g, SBS white board 350 g, Kraft board 350 g, Black-core board 350 g, Grey-back duplex 350 g, E-flute kraft / kraft, E-flute white / kraft, F-flute micro corrugated, SBS white board 18 pt. Select the stock before checking fit, and ask your converter to confirm the grade and caliper for the intended product.
Which files can I download?
The template page offers dimensioned PDF, Illustrator (.ai via script), layered SVG and DXF cutting and crease geometry. After adding artwork in the editor, you can export a print-ready PDF and review the bleed, safe areas and dieline layers with your printer.
Is this dieline free?
Browsing the previews is free, and you can customize the template after signing in with Google. Template and print-file downloads require a Pro or Business plan. The Free plan allows one eligible download every 8 hours; free mockups, renders and videos carry a watermark. See the pricing page for the current plans.
Can I send the download straight to production?
Use the file as a starting point for a printer or converter review. Confirm the finished dimensions, stock, crease and cutting setup, assembly, bleed and artwork, then approve a physical sample. The 3D preview does not test strength, transit performance or suitability for particular contents.
