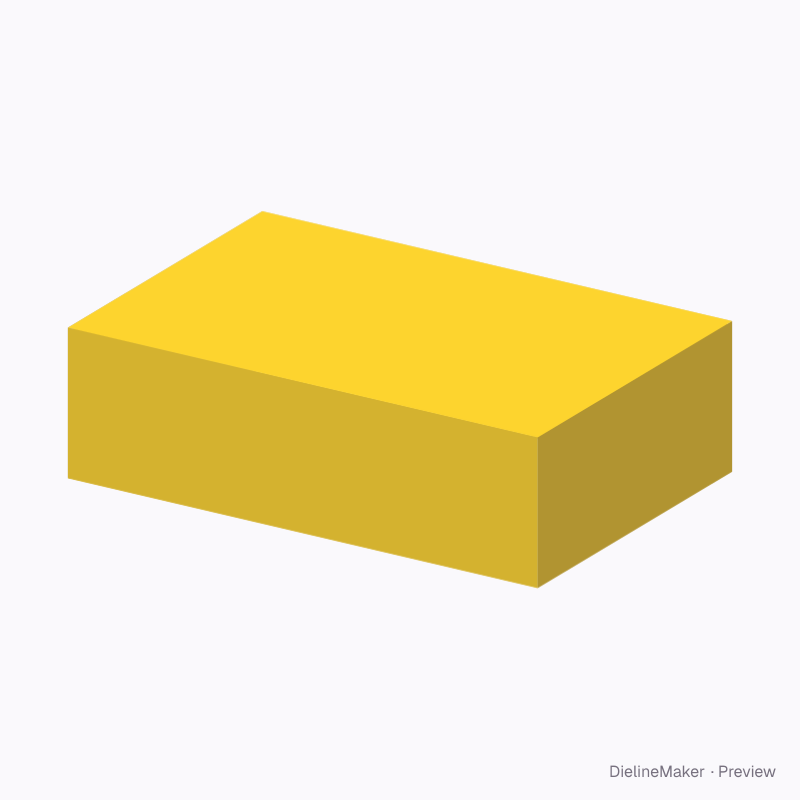

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTrays & lids
Building blocks box dieline
Kraft lid and base for a set of wooden blocks. A ready-sized preset of the telescope box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 90 mm
Outside307.5 × 203.8 × 90.9 mm
Flat blank487.5 × 383.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 300 · Width 200 · Height 90 mm
- Size range
- Length 40–700 · Width 30–500 · Height 15–300 mm
- Manufacturing
- 302.3 × 200.5 × 90.2 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Base, Lid
- Board area
- 0.371 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- FBB 400SBS 350Kraft 350Black 350GD2 350E-flute KE-flute WF-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseBase | 302.3 × 200.5 | – × W + T |
| FrontBase | 302.3 × 90.2 | – × H + T/2 |
| BackBase | 302.3 × 90.2 | – × H + T/2 |
| Left endBase | 90.2 × 200.5 | H + T/2 × W + T |
| Right endBase | 90.2 × 200.5 | H + T/2 × W + T |
| Corner web ×4Base | 90.2 × 90.2 | – × H + T/2 |
| Corner web ×4Base | 127.6 × 63.8 | – |
| Pose rigLid | 100 × 57.6 | – |
| Lid topLid | 100 × 145.8 | – |
| BackLid | 307.1 × 90.2 | – |
| FrontLid | 307.1 × 90.2 | – |
| Left endLid | 90.2 × 203.4 | – |
| Right endLid | 90.2 × 203.4 | – |
| Corner web ×4Lid | 90.2 × 90.2 | – |
| Corner web ×3Lid | 127.6 × 63.8 | – |
| Corner webLid | 63.8 × 127.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid depthmm
- Thumb notcheson / off
- Windowon / off
