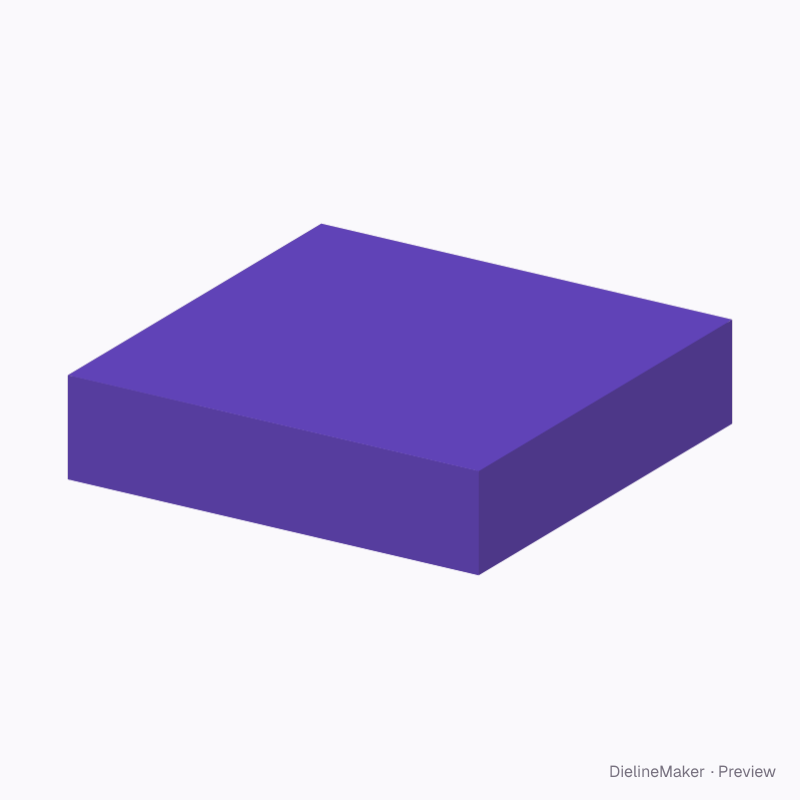

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTrays & lids
Board game box 295×295×70 dieline
Full-depth lid over the base of a square family board game. A ready-sized preset of the telescope box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside295 × 295 × 70 mm
Outside302.8 × 298.9 × 71 mm
Flat blank442.8 × 438.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 295 · Width 295 · Height 70 mm
- Size range
- Length 40–700 · Width 30–500 · Height 15–300 mm
- Manufacturing
- 297.4 × 295.5 × 70.2 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Base, Lid
- Board area
- 0.385 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Grey-back duplex 350 g · 0.48 mm caliper
- Board options
- FBB 400SBS 350Kraft 350Black 350GD2 350E-flute KE-flute WF-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.48 mm for Grey-back duplex 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseBase | 297.4 × 295.5 | – |
| FrontBase | 297.4 × 70.2 | – × H + T/2 |
| BackBase | 297.4 × 70.2 | – × H + T/2 |
| Left endBase | 70.2 × 295.5 | H + T/2 × – |
| Right endBase | 70.2 × 295.5 | H + T/2 × – |
| Corner web ×4Base | 70.2 × 70.2 | H + T/2 × H + T/2 |
| Corner web ×3Base | 99.3 × 49.7 | – |
| Corner webBase | 49.7 × 99.3 | – |
| Pose rigLid | 100 × 47.6 | – |
| Lid topLid | 100 × 250.8 | – |
| BackLid | 302.3 × 70.2 | – |
| FrontLid | 302.3 × 70.2 | – |
| Left endLid | 70.2 × 298.4 | – |
| Right endLid | 70.2 × 298.4 | – |
| Corner web ×4Lid | 70.2 × 70.2 | – |
| Corner web ×3Lid | 99.3 × 49.7 | – |
1 more panels are listed in the editor’s structure step.
