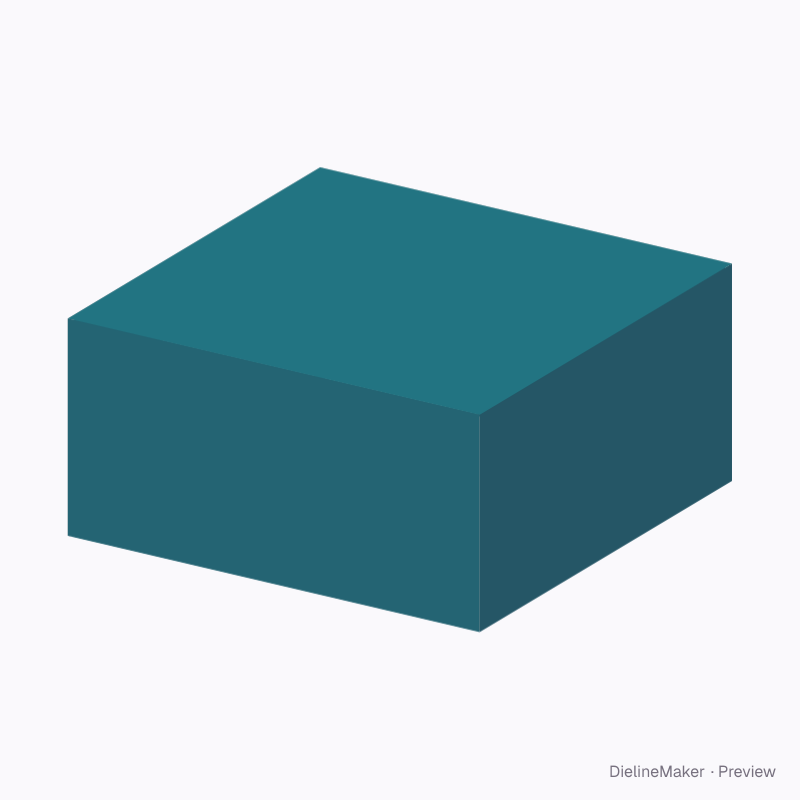

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTrays & lids
Gift box 200×200×100 dieline
Full-depth lid in black board for a premium reveal. A ready-sized preset of the telescope box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 200 × 100 mm
Outside208 × 204 × 101 mm
Flat blank408 × 404 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 200 · Width 200 · Height 100 mm
- Size range
- Length 40–700 · Width 30–500 · Height 15–300 mm
- Manufacturing
- 202.5 × 200.5 × 100.3 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Base, Lid
- Board area
- 0.326 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Black-core board 350 g · 0.5 mm caliper
- Board options
- FBB 400SBS 350Kraft 350Black 350GD2 350E-flute KE-flute WF-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Black-core board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseBase | 202.5 × 200.5 | – |
| FrontBase | 202.5 × 100.3 | – × H + T/2 |
| BackBase | 202.5 × 100.3 | – × H + T/2 |
| Left endBase | 100.3 × 200.5 | H + T/2 × – |
| Right endBase | 100.3 × 200.5 | H + T/2 × – |
| Corner web ×4Base | 99.8 × 100.3 | – × H + T/2 |
| Corner web ×4Base | 141.1 × 70.9 | – |
| Pose rigLid | 100 × 62.6 | – |
| Lid topLid | 100 × 140.9 | – |
| BackLid | 207.5 × 100.3 | – × H + T/2 |
| FrontLid | 207.5 × 100.3 | – × H + T/2 |
| Left endLid | 100.3 × 203.5 | H + T/2 × – |
| Right endLid | 100.3 × 203.5 | H + T/2 × – |
| Corner web ×4Lid | 100.3 × 100.3 | – × H + T/2 |
| Corner web ×4Lid | 141.8 × 70.9 | – |
