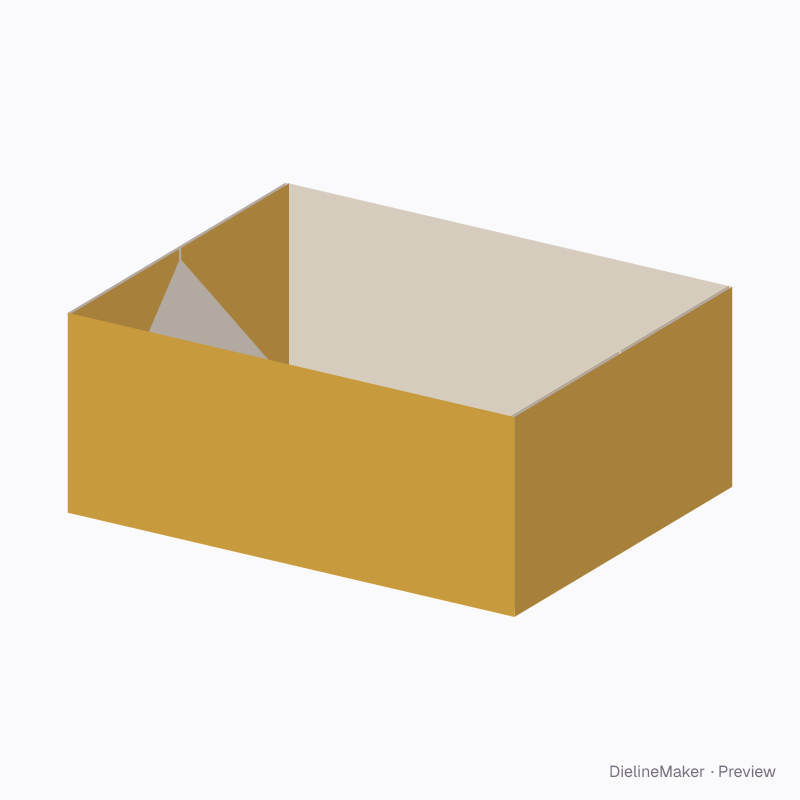

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA B40.21.00.00Food
Berry punnet dieline
Kraft punnet for 250 g of strawberries or cherries. A ready-sized preset of the tray with glued corners — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 95 × 50 mm
Outside122.8 × 95.9 × 50.5 mm
Flat blank222.8 × 195.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA B40.21.00.00
- Inside size
- Length 120 · Width 95 · Height 50 mm
- Size range
- Length 30–600 · Width 25–450 · Height 8–200 mm
- Manufacturing
- 122.3 × 95.5 × 50.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.044 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350Kraft 350SBS 300FBB 400GD2 350Black 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA B40.21.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 122.3 × 95.5 | – × W + T |
| Front | 122.3 × 50.2 | – × H + T/2 |
| Back | 122.3 × 50.2 | – × H + T/2 |
| Left end | 50.2 × 95.5 | H + T/2 × W + T |
| Right end | 50.2 × 95.5 | H + T/2 × W + T |
| Corner web ×4 | 47.3 × 50.2 | – × H + T/2 |
| Corner web ×4 | 66.8 × 35.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Thumb notchon / off
- Food contacton / off
- Hinged lidon / off
