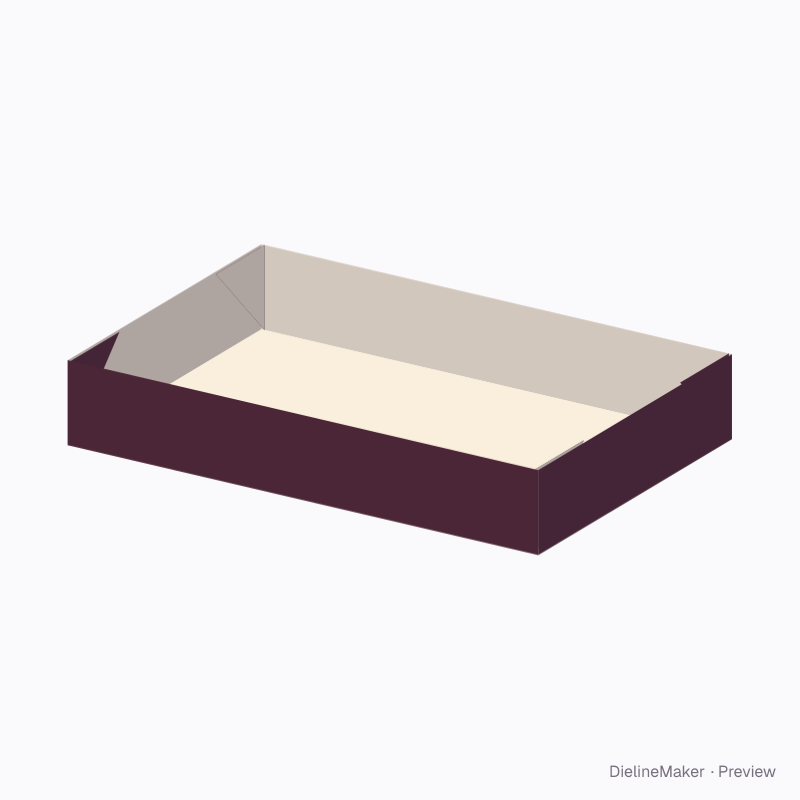

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA B40.21.00.00Trays & lids
Chocolate tray 150×100×25 dieline
A one-piece open tray whose webbed corners fold flat inside the end walls and are glued there. A ready-sized preset of the tray with glued corners — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 100 × 25 mm
Outside153 × 101 × 25.5 mm
Flat blank203 × 151 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA B40.21.00.00
- Inside size
- Length 150 · Width 100 · Height 25 mm
- Size range
- Length 30–600 · Width 25–450 · Height 8–200 mm
- Manufacturing
- 152.5 × 100.5 × 25.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.031 m² · about 18 up on a 720 × 1020 mm sheet
- Default board
- Black-core board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350SBS 300FBB 400GD2 350Black 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA B40.21.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for Black-core board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 152.5 × 100.5 | – × W + T |
| Front | 152.5 × 25.3 | – × H + T/2 |
| Back | 152.5 × 25.3 | – × H + T/2 |
| Left end | 25.3 × 100.5 | H + T/2 × W + T |
| Right end | 25.3 × 100.5 | H + T/2 × W + T |
| Corner web ×4 | 25.3 × 25.3 | H + T/2 × H + T/2 |
| Corner web ×4 | 35.7 × 17.9 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Thumb notchon / off
- Food contacton / off
- Hinged lidon / off
