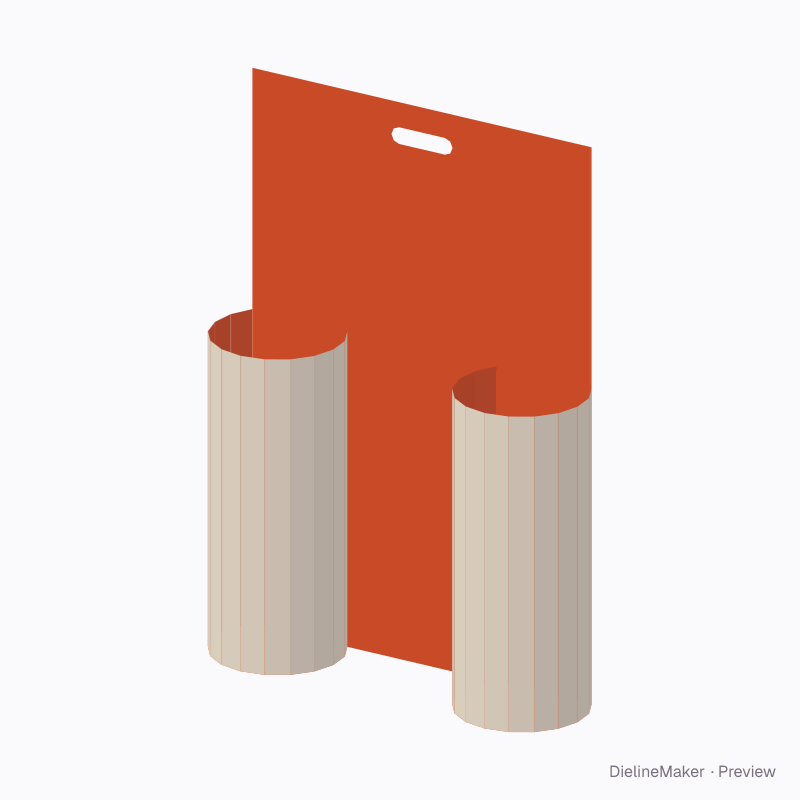

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TWIN-POCKET-HOLDER-01Display

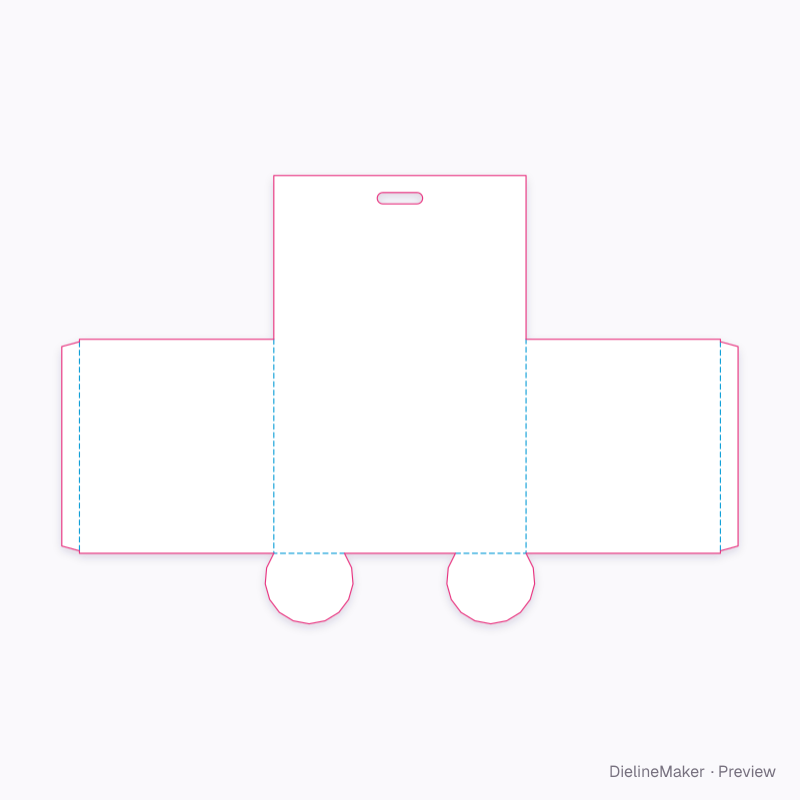

Two-bottle hanging holder dieline
A hanging backboard with two rolled round pockets and circular bottom flaps, from one blank. A ready-sized preset of the hanging holder with two round pockets — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 70 × 300 mm
Outside201.2 × 71.2 × 301.2 mm
Flat blank536.2 × 356 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TWIN-POCKET-HOLDER-01
- Inside size
- Board width 200 · Pocket diameter 70 · Board height 300 mm
- Size range
- Board width 80–500 · Pocket diameter 20–200 · Board height 100–800 mm
- Manufacturing
- 200.6 × 70.6 × 300.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.123 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350Kraft 350FBB 400E-flute WSBS 18 pt
- Good for
The flat dieline

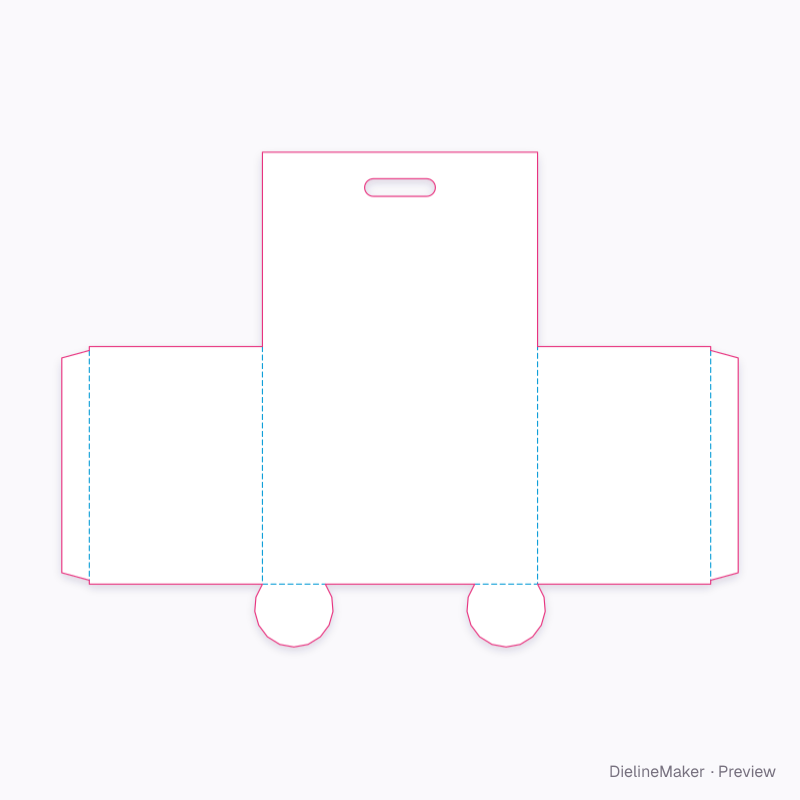

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TWIN-POCKET-HOLDER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Backboard | 200 × 300 | L × H |
| Pocket wall ×24 | 12.8 × 170 | – |
| Pocket bottom ×2 | 56 × 56 | – |
| Glue flap ×2 | 14 × 166 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Pocket heightmm
The hanging holder with two round pockets family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this two-bottle hanging holder yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
