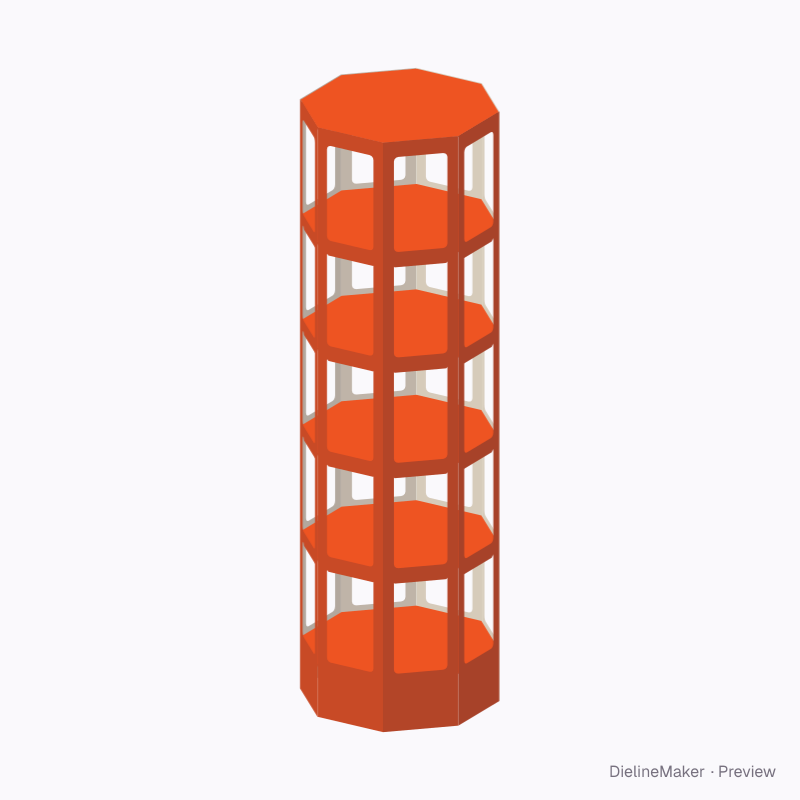

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-WINDOW-TOWER-01Display
Octagonal window tower dieline
A tall polygon display tube with access windows on every face and internal shelves at each level. A ready-sized preset of the windowed tower shelf display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 500 × 1700 mm
OutsideØ 503.2 × 1703.2 mm
Flat blank1686.9 × 1700 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-WINDOW-TOWER-01
- Inside size
- Width (across flats) 500 · Height 1700 mm
- Size range
- Width (across flats) 200–900 · Height 600–2200 mm
- Manufacturing
- Ø 501.6 × 1701.6 mm score to score · inside vs outside sizes
- Parts
- 7 parts — Tower shell, Shelf, Shelf, Shelf, Shelf, Shelf, Top cap
- Board area
- 4.339 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WB-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-WINDOW-TOWER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Tower face ×8Tower shell | 207.1 × 1700 | – × H |
| Glue flapTower shell | 30 × 1696 | – |
| ShelfShelf | 496.5 × 496.5 | – |
| Glue flap ×3Shelf | 30 × 201.6 | – |
| Glue flap ×5Shelf | 201.6 × 30 | – |
| ShelfShelf | 496.5 × 496.5 | – |
| Glue flap ×3Shelf | 30 × 201.6 | – |
| Glue flap ×5Shelf | 201.6 × 30 | – |
| ShelfShelf | 496.5 × 496.5 | – |
| Glue flap ×3Shelf | 30 × 201.6 | – |
| Glue flap ×5Shelf | 201.6 × 30 | – |
| ShelfShelf | 496.5 × 496.5 | – |
| Glue flap ×3Shelf | 30 × 201.6 | – |
| Glue flap ×5Shelf | 201.6 × 30 | – |
| ShelfShelf | 496.5 × 496.5 | – |
| Glue flap ×3Shelf | 30 × 201.6 | – |
4 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Sides3 options
- Shelf levelscount
- Plinth heightmm
- Window framemm
- Side plinth stagescount
- Stage heightmm
The windowed tower shelf display family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this octagonal window tower yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
