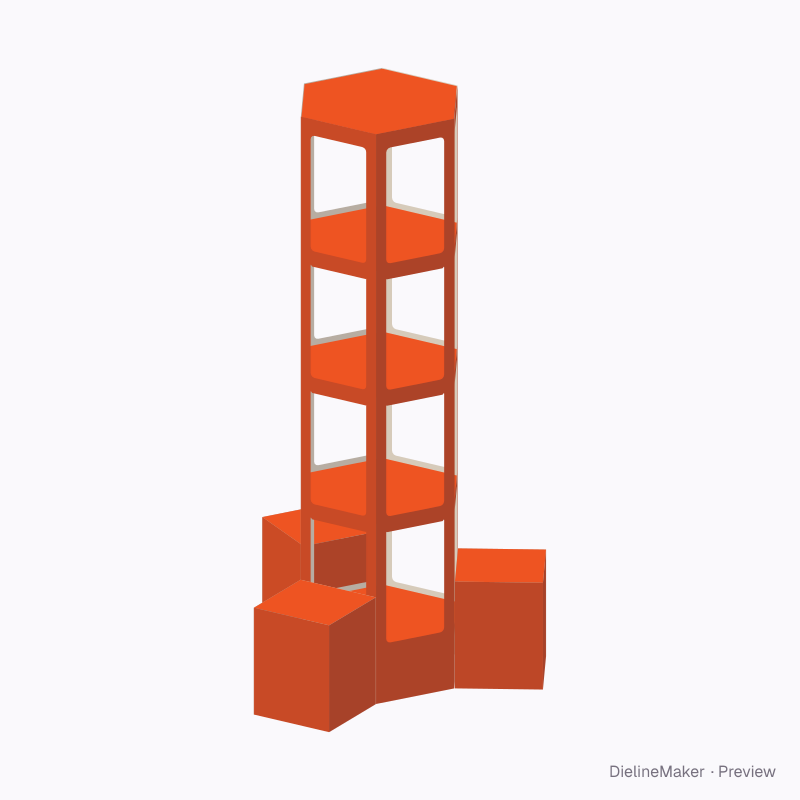

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-WINDOW-TOWER-STAGES-01Display
Hexagonal tower with side plinth stages dieline
A tall polygon display tube with access windows on every face and internal shelves at each level. A ready-sized preset of the windowed tower shelf display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 400 × 1600 mm
OutsideØ 403.2 × 1603.2 mm
Flat blank1415.6 × 1600 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-WINDOW-TOWER-STAGES-01
- Inside size
- Width (across flats) 400 · Height 1600 mm
- Size range
- Width (across flats) 200–900 · Height 600–2200 mm
- Manufacturing
- Ø 401.6 × 1601.6 mm score to score · inside vs outside sizes
- Parts
- 9 parts — Tower shell, Shelf, Shelf, Shelf, Shelf, Top cap, Side plinth stage, Side plinth stage, Side plinth stage
- Board area
- 4.161 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WB-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-WINDOW-TOWER-STAGES-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Tower face ×6Tower shell | 230.9 × 1600 | – × H |
| Glue flapTower shell | 30 × 1596 | – |
| ShelfShelf | 458 × 396.7 | – |
| Glue flap ×4Shelf | 30 × 225 | – |
| Glue flap ×2Shelf | 225 × 30 | – |
| ShelfShelf | 458 × 396.7 | – |
| Glue flap ×4Shelf | 30 × 225 | – |
| Glue flap ×2Shelf | 225 × 30 | – |
| ShelfShelf | 458 × 396.7 | – |
| Glue flap ×4Shelf | 30 × 225 | – |
| Glue flap ×2Shelf | 225 × 30 | – |
| ShelfShelf | 458 × 396.7 | – |
| Glue flap ×4Shelf | 30 × 225 | – |
| Glue flap ×2Shelf | 225 × 30 | – |
| Top capTop cap | 458 × 396.7 | – |
| Glue flap ×4Top cap | 30 × 225 | – |
16 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Sides3 options
- Shelf levelscount
- Plinth heightmm
- Window framemm
- Side plinth stagescount
- Stage heightmm
