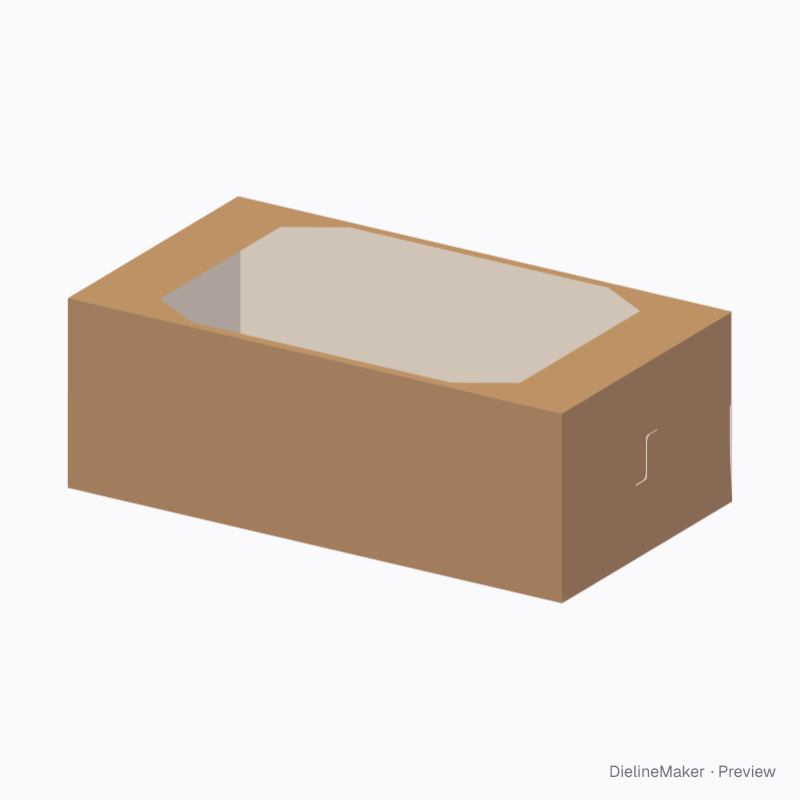

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F10.41.00.00Trays & lids
Auto-bottom display tray dieline
Tray with a large top aperture that pops up from flat: biscuits, soaps, small fruit. A ready-sized preset of the auto-bottom tray with aperture — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 110 × 70 mm
Outside201 × 111 × 71 mm
Flat blank373.5 × 287 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F10.41.00.00
- Inside size
- Length (tube) 200 · Width (A) 110 · Height (B) 70 mm
- Size range
- Length (tube) 60–500 · Width (A) 30–300 · Height (B) 20–200 mm
- Manufacturing
- 200.5 × 110.5 × 70.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.100 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350E-flute WE-flute KF-fluteSBS 18 pt
- Good for
The flat dieline

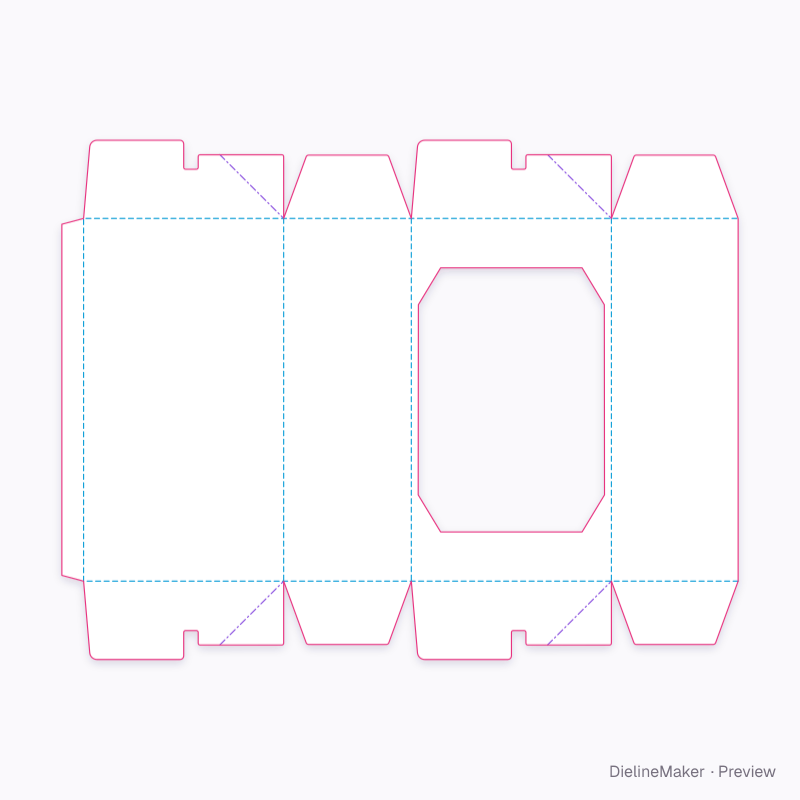

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F10.41.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base (A) | 110.5 × 200.5 | W + T × L + T |
| Front wall (B) | 70.5 × 200.5 | H + T × L + T |
| Top with aperture (A) | 110.5 × 200.5 | W + T × L + T |
| Back wall (B) | 70 × 200.5 | H × L + T |
| Glue flap | 12 × 200.5 | – × L + T |
| Crash-lock flap (back) ×2 | 110.5 × 43.3 | W + T × – |
| Glued web ×4 | 49.9 × 24.5 | – |
| End side flap ×2 | 70.5 × 35 | H + T × – |
| Crash-lock flap (front) ×2 | 110.5 × 43.3 | W + T × – |
| End side flap ×2 | 70 × 35 | H × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Aperturescount
- Aperture spanmm
- Hook reachmm
- Hook notchmm
- Side flap depthmm

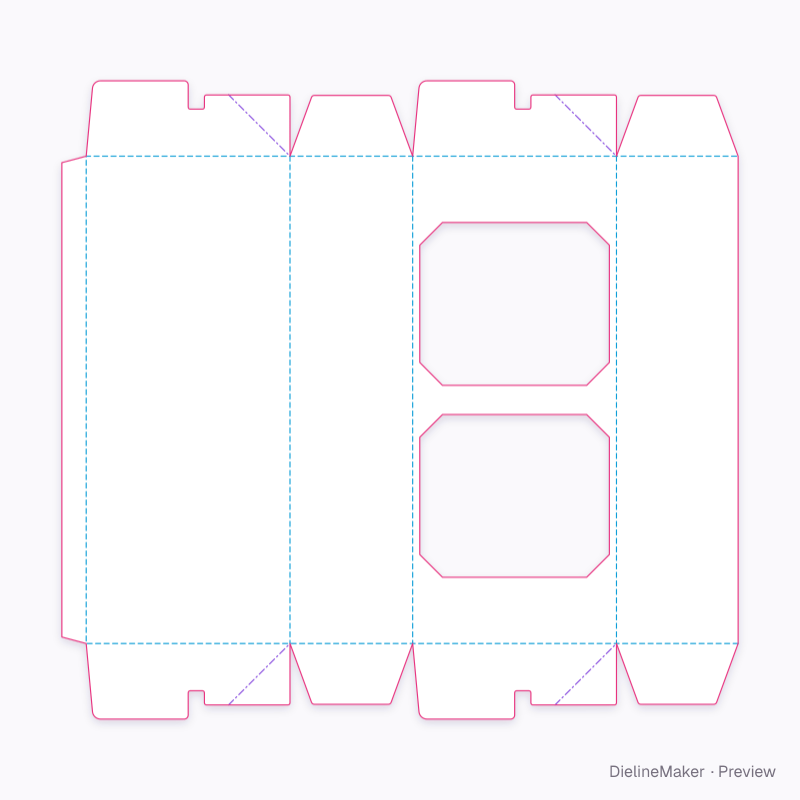

The auto-bottom tray with aperture family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this auto-bottom display tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
