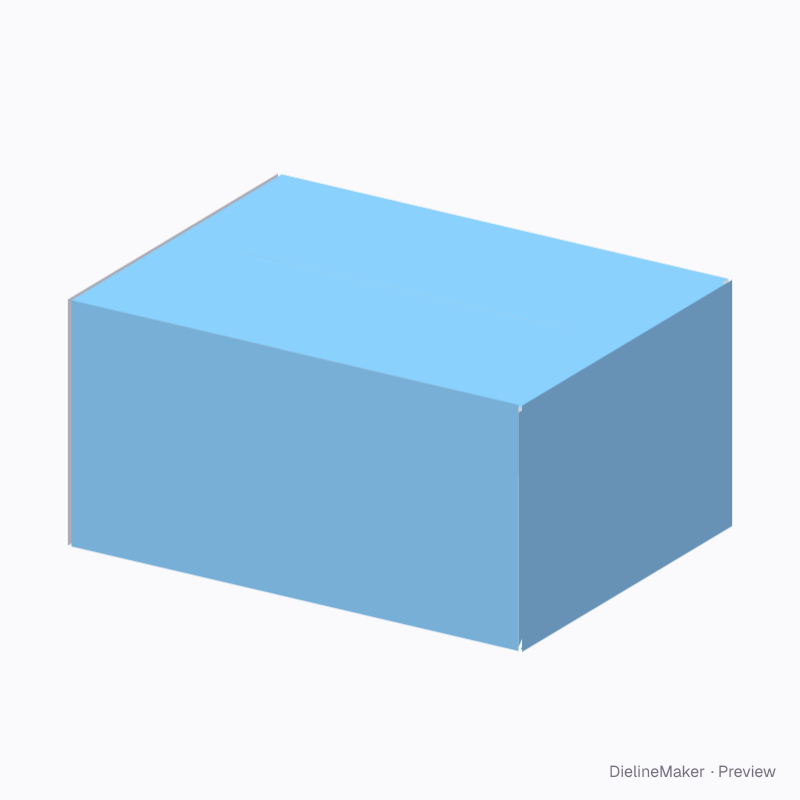

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0601Food
Frozen food box 400×300×200 dieline
Holds its shape through the freezer chain. A ready-sized preset of the bliss box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 200 mm
Outside412.8 × 306.4 × 206.4 mm
Flat blank523.2 × 1012.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0601
- Inside size
- Length 400 · Width 300 · Height 200 mm
- Size range
- Length 150–1000 · Width 100–700 · Height 60–600 mm
- Manufacturing
- 403.2 × 303.2 × 203.2 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Body, Left end, Right end
- Board area
- 0.635 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute W
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0601 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BottomBody | 403.2 × 303.2 | L + T × W + T |
| FrontBody | 403.2 × 203.2 | L + T × H + T |
| BackBody | 403.2 × 203.2 | L + T × H + T |
| Top, front halfBody | 403.2 × 151.6 | L + T × (W + T)/2 |
| Top, back halfBody | 403.2 × 151.6 | L + T × (W + T)/2 |
| Glue flap ×2Body | 60 × 296.8 | – × W − T |
| Glue flap ×4Body | 60 × 193.6 | – × H − 2T |
| Pose rigLeft end | 100 × 50 | – |
| Left endLeft end | 100 × 153.2 | W + T × H + T |
| End top flapLeft end | 296.8 × 60 | W − T × – |
| Pose rigRight end | 100 × 50 | – |
| Right endRight end | 100 × 153.2 | W + T × H + T |
| End top flapRight end | 296.8 × 60 | W − T × – |
