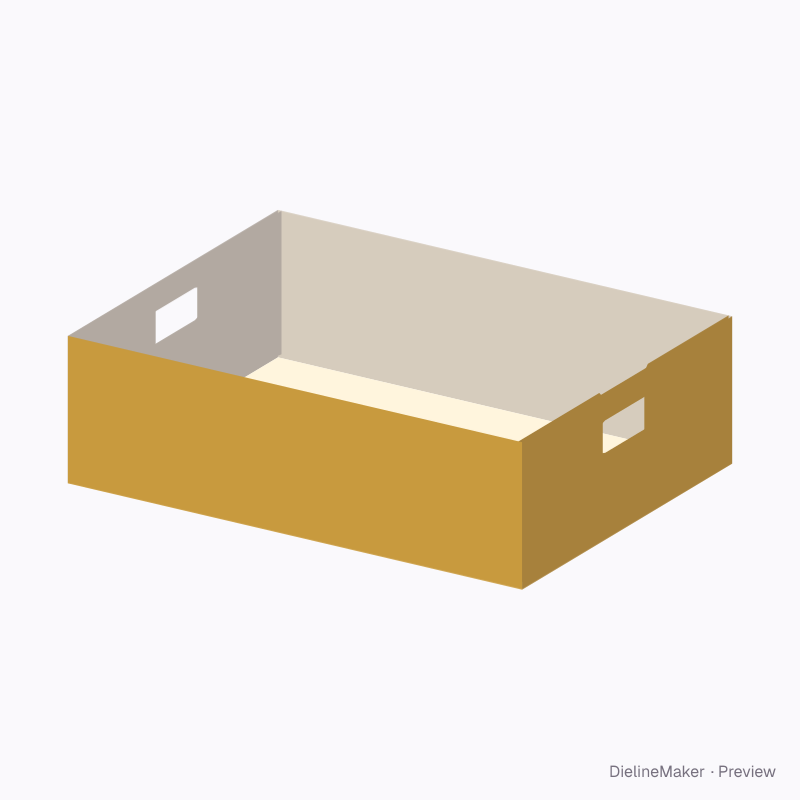

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0453Trays & lids
Produce tray 400×300×120 dieline
Fruit and vegetable tray with hand holes; stacks on a 600 × 400 footprint two-up. A ready-sized preset of the corner-flap tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 120 mm
Outside412.8 × 306.4 × 123.2 mm
Flat blank652.8 × 546.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0453
- Inside size
- Length 400 · Width 300 · Height 120 mm
- Size range
- Length 120–800 · Width 80–600 · Height 30–300 mm
- Manufacturing
- 409.6 × 303.2 × 121.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.352 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0453 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 409.6 × 303.2 | L + 3T × W + T |
| Front | 409.6 × 121.6 | L + 3T × H + T/2 |
| Back | 409.6 × 121.6 | L + 3T × H + T/2 |
| Left end | 121.6 × 303.2 | W + T × H + T/2 |
| Right end | 121.6 × 303.2 | W + T × H + T/2 |
| Corner flap ×4 | 121.6 × 118.4 | – × H − T/2 |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Corner flaps2 options
- Corner profile2 options
- Hand holeson / off
- Hand hole widthmm
