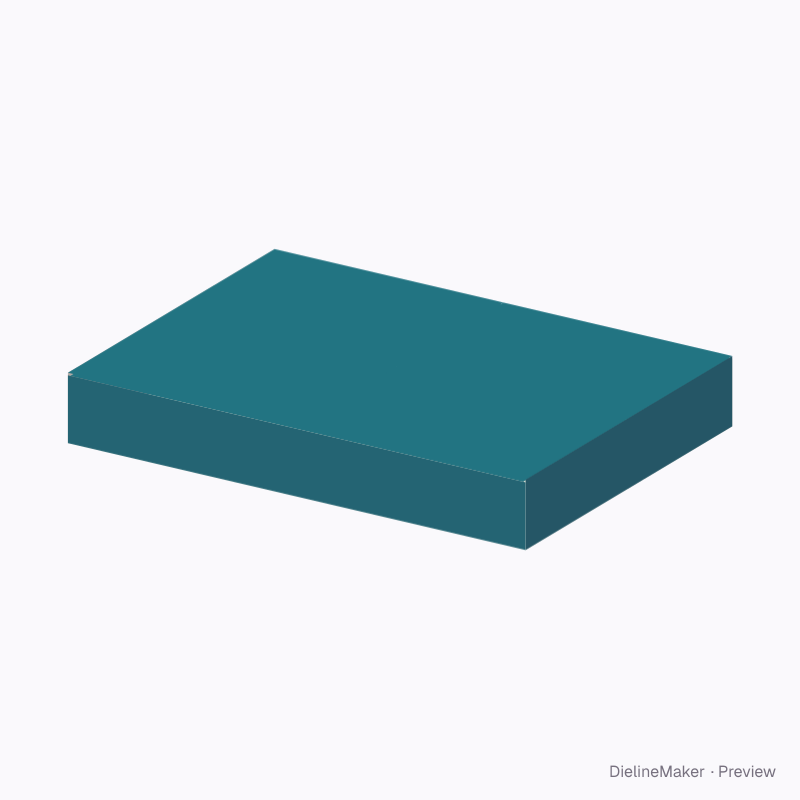

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0402Shipping
A4 book wrap 305×220×40 dieline
For a hardback, an annual or a catalogue. A ready-sized preset of the cross-fold book wrap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside305 × 220 × 40 mm
Outside308.2 × 223.2 × 44.8 mm
Flat blank699.6 × 526.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0402
- Inside size
- Length 305 · Width 220 · Height 40 mm
- Size range
- Length 100–1200 · Width 80–900 · Height 10–300 mm
- Manufacturing
- 306.6 × 221.6 × 41.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.248 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteEB doubleSBS 300SBS 350Kraft 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0402 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 306.6 × 221.6 | L + T × W + T |
| Front | 306.6 × 41.6 | L + T × H + T |
| Back | 306.6 × 41.6 | L + T × H + T |
| Left end | 43.2 × 221.6 | W + T × H + 2T |
| Right end | 43.2 × 221.6 | W + T × H + 2T |
| Side flap ×2 | 303.4 × 110.8 | L − T × – |
| End flap ×2 | 153.3 × 221.6 | – × W + T |
