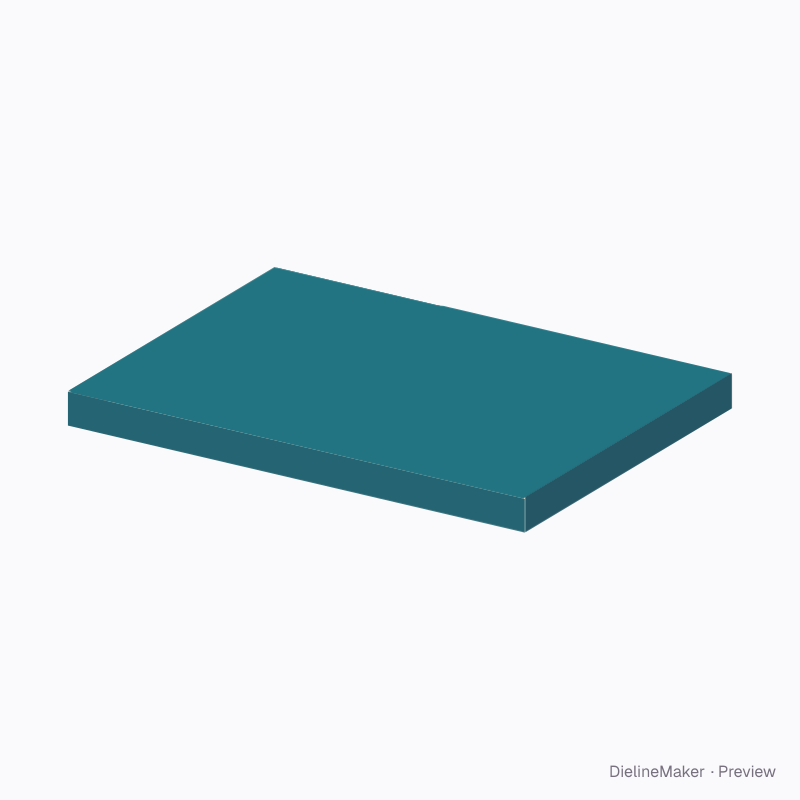

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CFW-DOC-01Shipping
A4 document overlap wrap dieline
An original capacity wrap with a rounded outer cover, secured with separate packing tape. Use zero Score allowance (Generic or Custom). A ready-sized preset of the cross-fold book wrap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside310 × 225 × 20 mm
Outside311 × 226 × 22 mm
Flat blank712 × 493.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CFW-DOC-01
- Inside size
- Length 310 · Width 225 · Height 20 mm
- Size range
- Length 100–1200 · Width 80–900 · Height 10–300 mm
- Manufacturing
- 311 × 226 × 21 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.243 m²
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteEB doubleSBS 300SBS 350Kraft 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CFW-DOC-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 311 × 226 | L + 2T × W + 2T |
| Front | 311 × 21 | L + 2T × H + 2T |
| Back | 311 × 21 | L + 2T × H + 2T |
| Underflap wall | 21.5 × 225 | – × W |
| Cover wall | 22 × 225 | – × W |
| Retaining flap ×2 | 309 × 112.8 | L − 2T × – |
| Underflap | 155.5 × 224 | – × W − 2T |
| Outer cover | 202 × 224 | – × W − 2T |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Closure4 options
- Cover overlapmm
- Side flap depthmm
