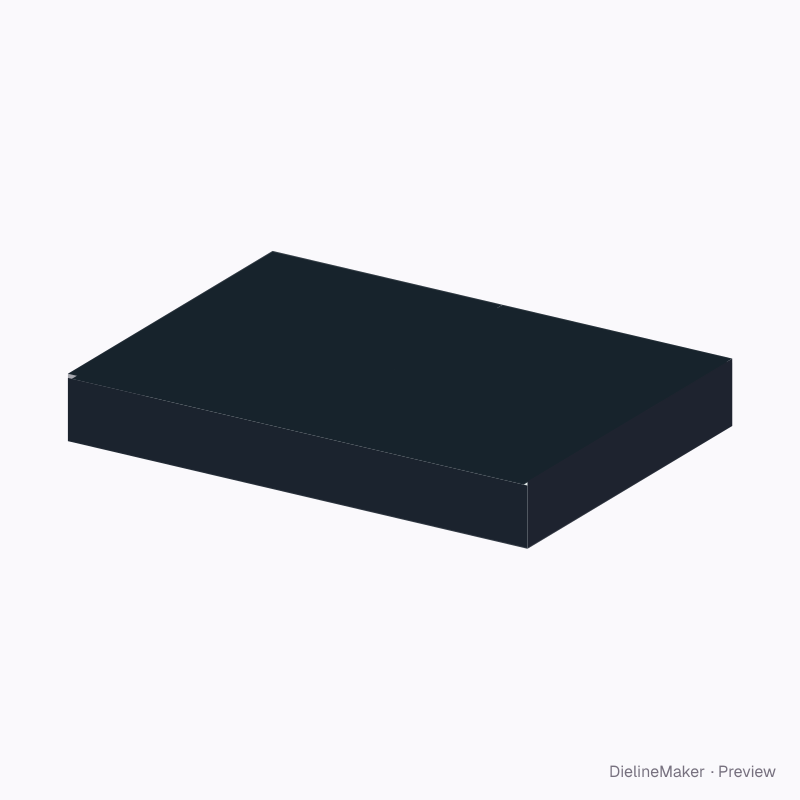

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0402Shipping
Laptop wrap 380×270×45 dieline
Snug B-flute wrap for a 15-inch laptop in a sleeve. A ready-sized preset of the cross-fold book wrap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside380 × 270 × 45 mm
Outside386.4 × 276.4 × 54.6 mm
Flat blank869.2 × 642.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0402
- Inside size
- Length 380 · Width 270 · Height 45 mm
- Size range
- Length 100–1200 · Width 80–900 · Height 10–300 mm
- Manufacturing
- 383.2 × 273.2 × 48.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.377 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteEB doubleSBS 300SBS 350Kraft 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0402 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 383.2 × 273.2 | L + T × W + T |
| Front | 383.2 × 48.2 | L + T × H + T |
| Back | 383.2 × 48.2 | L + T × H + T |
| Left end | 51.4 × 273.2 | W + T × H + 2T |
| Right end | 51.4 × 273.2 | W + T × H + 2T |
| Side flap ×2 | 376.8 × 136.6 | L − T × – |
| End flap ×2 | 191.6 × 273.2 | – × W + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Closure4 options
- Side flap depthmm
- End flap depthmm
