Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DISPENSER-TUCK-01Display
Carton with perforated tear-out strip dieline
A long perforated racetrack strip tears out of the front to open a dispensing slot. Auxiliary feature reference: ECMA X14; product code is DM-DISPENSER-TUCK-01. A ready-sized preset of the dispenser carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 60 × 70 mm
Outside221 × 61 × 71 mm
Flat blank573.5 × 219.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DISPENSER-TUCK-01
- Inside size
- Length 220 · Width 60 · Height 70 mm
- Size range
- Length 50–400 · Width 25–300 · Height 50–400 mm
- Manufacturing
- 220.5 × 60.5 × 70.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.081 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350F-fluteE-flute WSBS 18 pt
- Good for

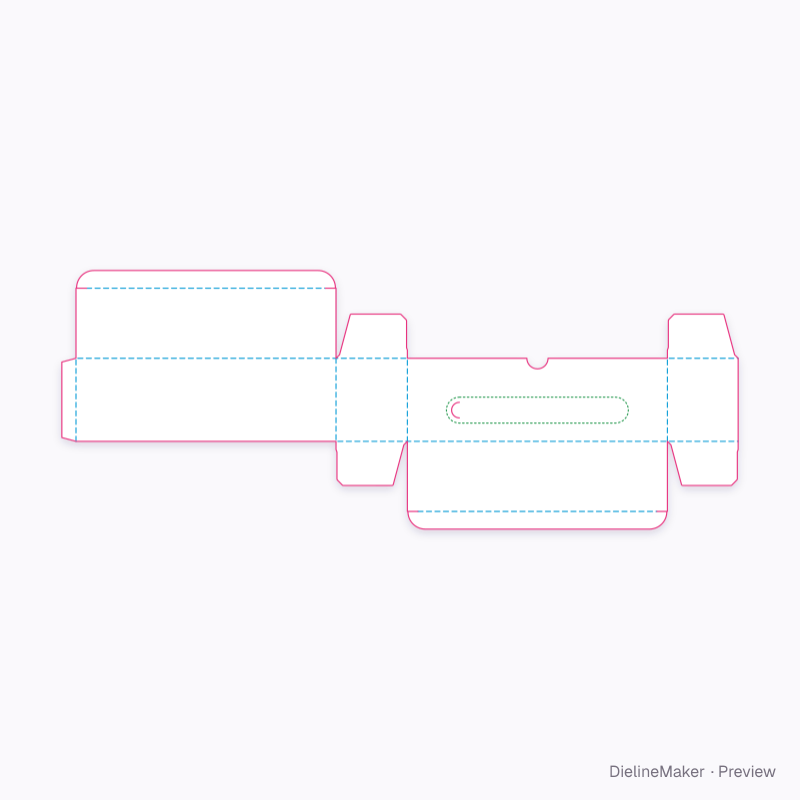

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DISPENSER-TUCK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 220.5 × 70.5 | L + T × H + T |
| Left side | 60.5 × 70.5 | W + T × H + T |
| Back | 220.5 × 70.5 | L + T × H + T |
| Right side | 60 × 70.5 | W × H + T |
| Glue flap | 12 × 70.5 | – × H + T |
| Top closure | 220.5 × 59.5 | L + T × W − T |
| Top tuck | 219.5 × 15 | L − T × – |
| Top dust flap | 60.5 × 37.5 | W + T × – |
| Top dust flap | 60 × 37.5 | W × – |
| Bottom closure | 220.5 × 59.5 | L + T × W − T |
| Bottom tuck | 219.5 × 15 | L − T × – |
| Bottom dust flap | 60.5 × 37.5 | W + T × – |
| Bottom dust flap | 60 × 37.5 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Dispenser4 options
- Bottom3 options
- Top tuck2 options
- Front lipmm
- Opening heightmm
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Zigzag flap edges4 options
