DM-DRAWER-BOX-01Trays & lids
Advent inner drawer 60 × 60 × 40 dieline
The small numbered drawer that slides into an advent calendar case; make twelve or twenty-four. A ready-sized preset of the drawer box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside60 × 60 × 40 mm
Outside65 × 61 × 42.3 mm
Flat blank143 × 141 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DRAWER-BOX-01
- Inside size
- Width 60 · Depth 60 · Height 40 mm
- Size range
- Width 30–500 · Depth 30–500 · Height 10–200 mm
- Manufacturing
- 62.5 × 60.5 × 40.3 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Sleeve, Tray
- Board area
- 0.033 m² · about 24 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 300GD2 350F-fluteE-flute WSBS 18 pt
- Good for

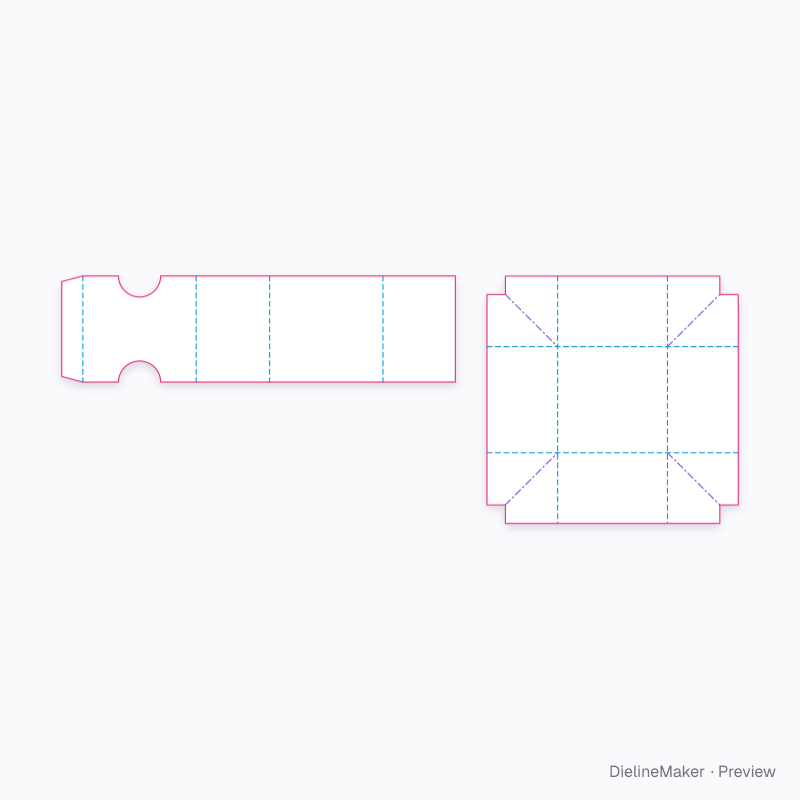

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How it folds
The advent inner drawer 60 × 60 × 40 erects in 1 step, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Fold the gussetsLeft side, Top, Right side, Glue flap, Front and 15 more
How the blank is sized
Score-to-score panel sizes of this DM-DRAWER-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BottomSleeve | 64.5 × 60.5 | L + 7T + 2c × W + T |
| Left sideSleeve | 41.8 × 60.5 | H + 2.5T + c × W + T |
| TopSleeve | 64.5 × 60.5 | L + 7T + 2c × W + T |
| Right sideSleeve | 41.3 × 60.5 | H + 1.5T + c × W + T |
| Glue flapSleeve | 12 × 60.5 | – |
| BaseTray | 62.5 × 60.5 | – |
| FrontTray | 62.5 × 40.3 | – × H + T/2 |
| BackTray | 62.5 × 40.3 | – × H + T/2 |
| Left endTray | 40.3 × 60.5 | H + T/2 × – |
| Right endTray | 40.3 × 60.5 | H + T/2 × – |
| Corner web ×4Tray | 29.8 × 40.3 | – × H + T/2 |
| Corner web ×4Tray | 42.1 × 28.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Drawer closure2 options
- Pull4 options
- Notch radiusmm
- Striking strip3 options
- Striker widthmm
- Food contacton / off
