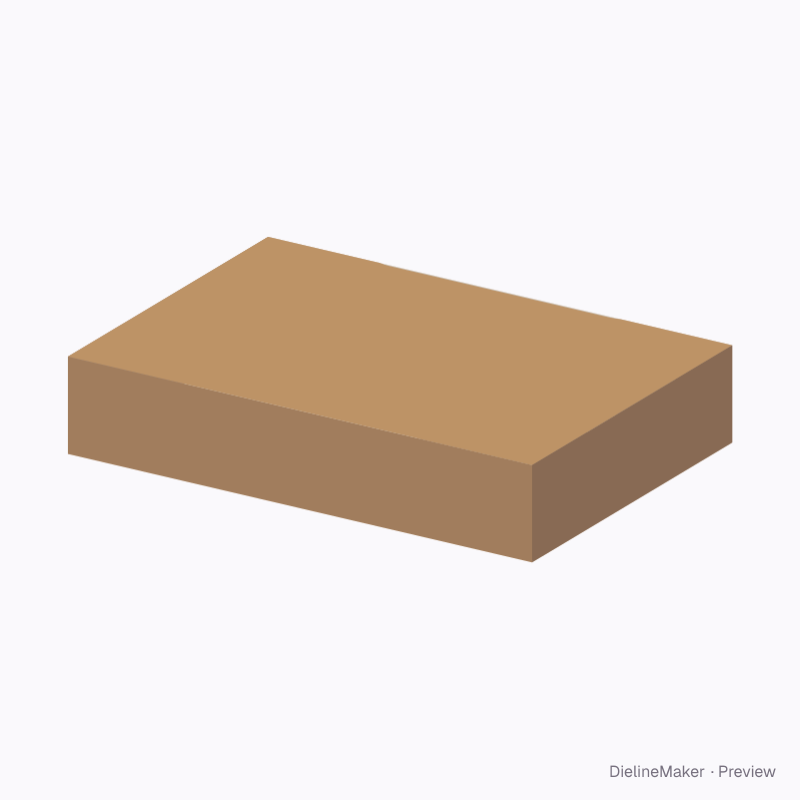

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA B40.20.82.50Trays & lids
ECMA B40.20.82.50 · Two end dust flaps and a tuck cover dieline
Two end dust flaps and a tuck cover. A ready-sized preset of the glued folding-carton tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 180 × 50 mm
Outside262.5 × 181.5 × 50.8 mm
Flat blank507.6 × 500.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA B40.20.82.50
- Inside size
- Inside length (A) 260 · Inside width (B) 180 · Inside height 50 mm
- Size range
- Inside length (A) 80–700 · Inside width (B) 60–550 · Inside height 15–200 mm
- Manufacturing
- 261.5 × 180.5 × 50.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.185 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 300SBS 350FBB 400Kraft 350F-fluteSBS 18 pt
- Good for

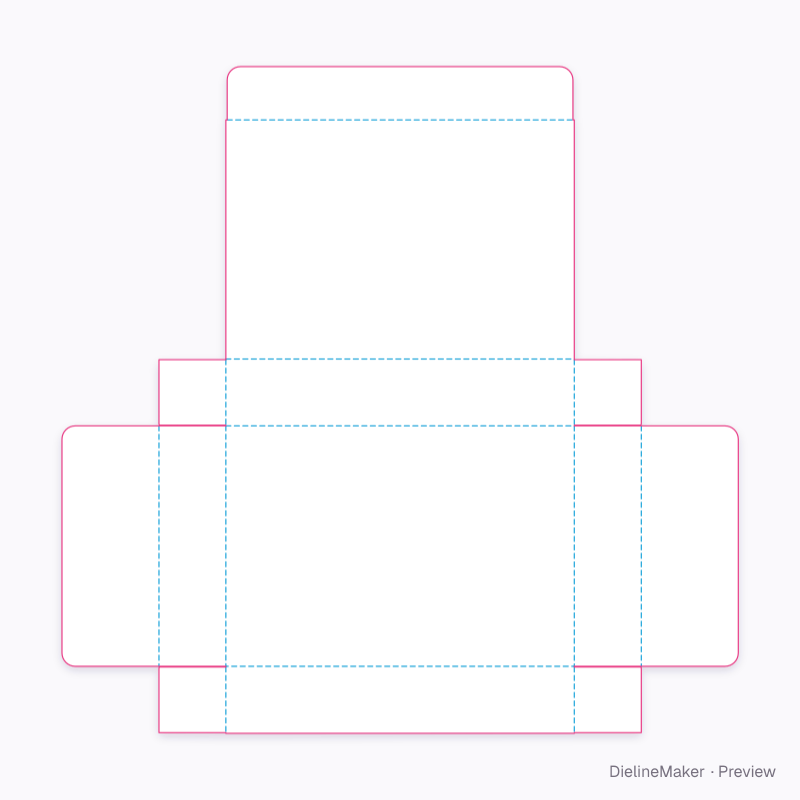

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA B40.20.82.50 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Tray floor | 261.5 × 180.5 | – × W + T |
| Tray wall ×2 | 261.5 × 50.3 | – × H + T/2 |
| Tray wall ×2 | 50.3 × 180.5 | H + T/2 × W + T |
| Corner glue flap ×4 | 50.3 × 49.3 | H + T/2 × H − 1.5T |
| Hinged cover | 261.5 × 179.5 | – × W − T |
| Cover tuck | 259.5 × 40 | L − T × – |
| Rounded end dust flap ×2 | 72.8 × 180.5 | – × W + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction10 options
- End dust flap depthmm
- Cover tuck depthmm
- Cover wing depthmm
The glued folding-carton tray family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset

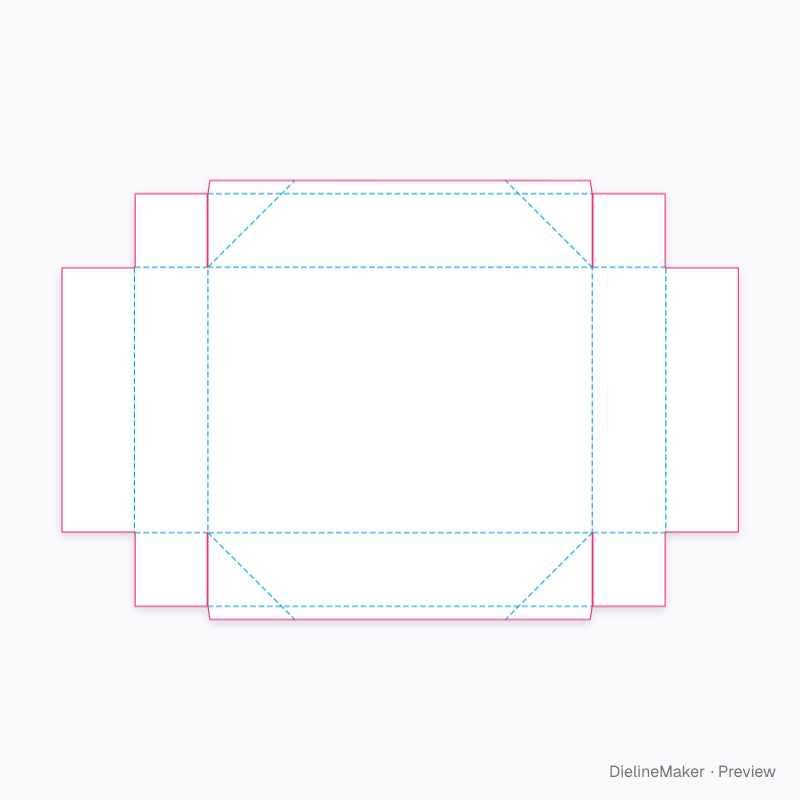

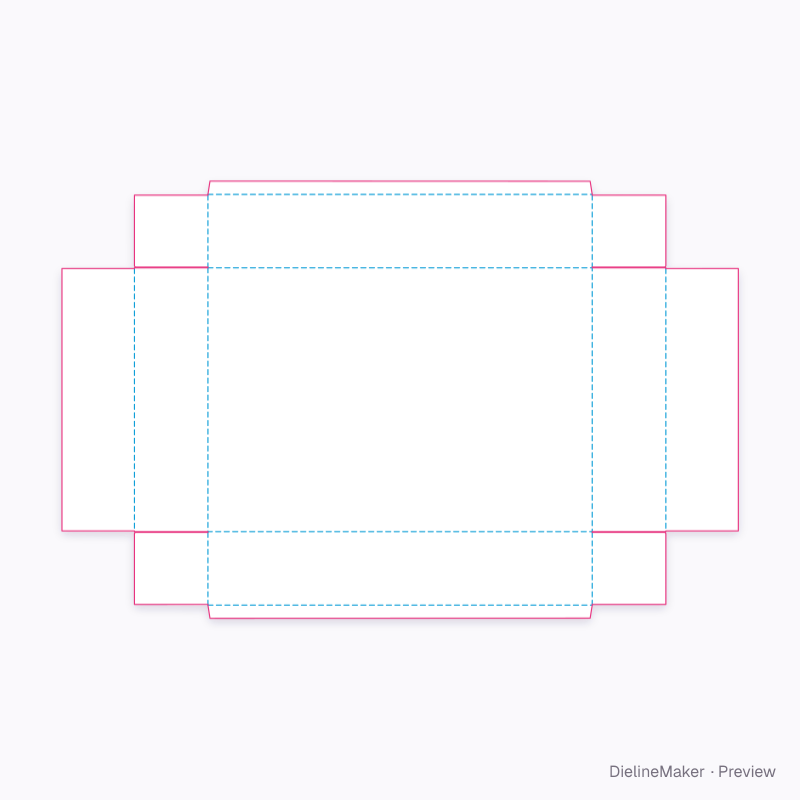

PresetECMA B44.23.82.00 · Collapsible double-wall tray with rim flaps
