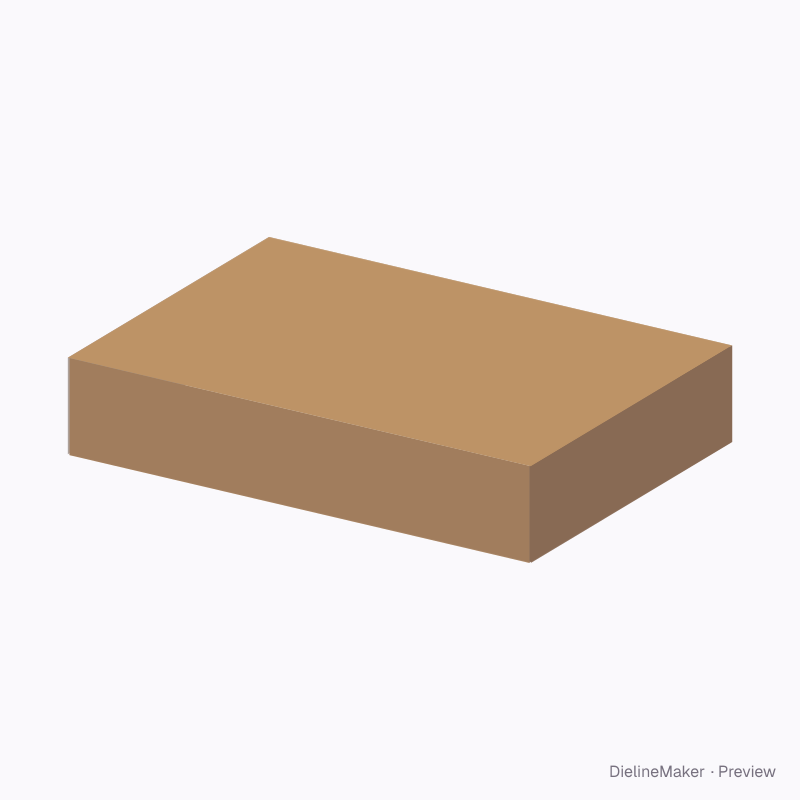

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA B40.22.00.61Trays & lids
ECMA B40.22.00.61 · Collapsible tray and glued full cover dieline
Collapsible tray and glued full cover. A ready-sized preset of the glued folding-carton tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 180 × 50 mm
Outside261.5 × 182.5 × 50.8 mm
Flat blank362.5 × 514.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA B40.22.00.61
- Inside size
- Inside length (A) 260 · Inside width (B) 180 · Inside height 50 mm
- Size range
- Inside length (A) 80–700 · Inside width (B) 60–550 · Inside height 15–200 mm
- Manufacturing
- 260.5 × 181.5 × 50.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.186 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 300SBS 350FBB 400Kraft 350F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA B40.22.00.61 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Tray floor | 260.5 × 181.5 | L + T × – |
| Tray wall ×2 | 260.5 × 50.3 | L + T × H + T/2 |
| Tray wall ×2 | 50.3 × 181.5 | H + T/2 × – |
| Corner glue flap ×4 | 49.3 × 50.3 | H − 1.5T × H + T/2 |
| Hinged cover | 260.5 × 182.5 | L + T × – |
| Cover front wing | 262.5 × 50 | – × H |
| Cover glued corner ×2 | 50 × 49.5 | H × H − T |
| Cover side wing ×2 | 50 × 182.5 | H × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction10 options
- Cover wing depthmm
