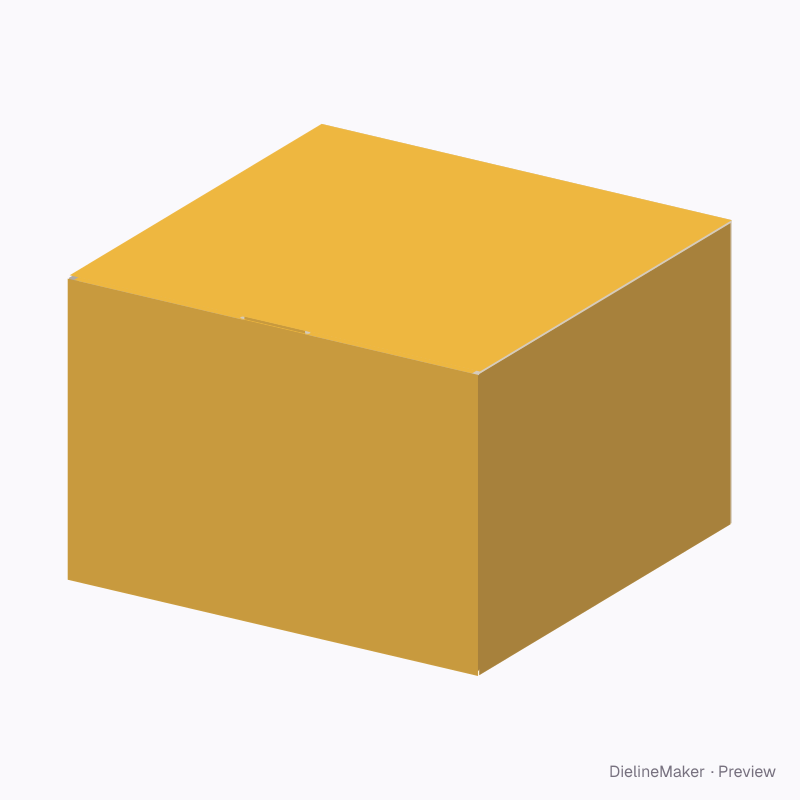

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Egg carton, 4 eggs dieline
Small gift box for four eggs, a two-by-two square. A ready-sized preset of the egg carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 100 × 68 mm
Outside102 × 101 × 69 mm
Flat blank237.5 × 531.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 100 · Width 100 · Height 68 mm
- Size range
- Length 60–400 · Width 40–250 · Height 30–120 mm
- Manufacturing
- 101.5 × 100.5 × 68.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.076 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- Kraft 350SBS 350GD2 350FBB 400SBS 300F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 101.5 × 100.5 | L + 3T × W + T |
| Front | 101.5 × 68 | L + 3T × H |
| Front roll | 98.5 × 2 | – |
| Front (inside) | 98.5 × 51.5 | – |
| Egg cradle | 98.5 × 97 | L − T − 1 × cradle |
| Cradle leg | 98.5 × 16 | – |
| Cradle foot | 98.5 × 14 | – |
| Back | 101.5 × 68.5 | L + 3T × H + T |
| Front corner ear ×2 | 40.2 × 67 | – × H − 2T |
| Back corner ear ×2 | 40.2 × 67 | – × H − 2T |
| Left end | 68 × 99.5 | W − T × H |
| Right end | 68 × 99.5 | W − T × H |
| Lid | 101.5 × 99.8 | L + 3T × W + T − roll/2 |
| Lock tab | 15 × 14 | – |
