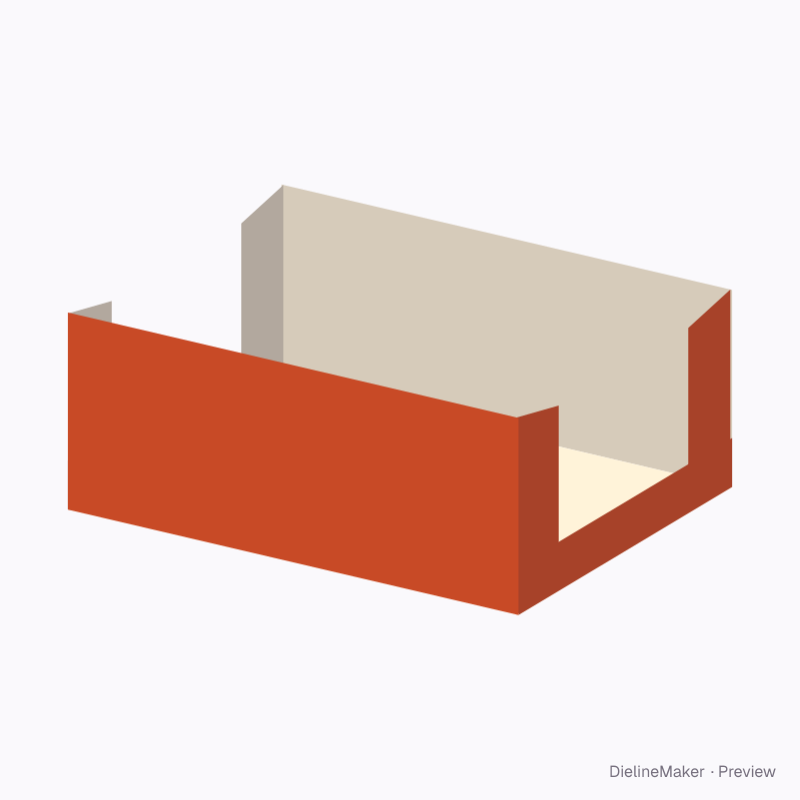

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0460Display
FEFCO 0460 · Cutaway wrap tray dieline
Full-height long walls wrap around a floor, with tapered corner flaps behind low end lips. A ready-sized preset of the cutaway wrap display tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 160 mm
Outside403.2 × 306.4 × 161.6 mm
Flat blank521.6 × 626.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0460
- Inside size
- Length 400 · Width 300 · Height 160 mm
- Size range
- Length 120–800 · Width 80–600 · Height 25–250 mm
- Manufacturing
- 401.6 × 304.8 × 160.8 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.313 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteFBB 400
- Good for

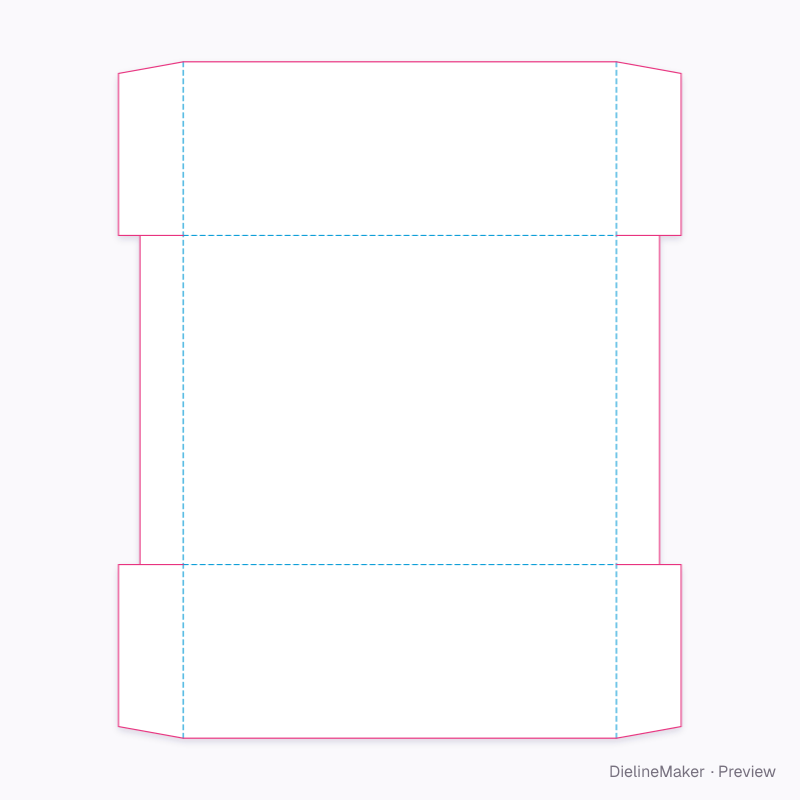

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0460 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 401.6 × 304.8 | L + T × – |
| Full-height side ×2 | 401.6 × 160.8 | L + T × H + T/2 |
| Tapered full-height end flap ×4 | 60 × 160.8 | – × H + T/2 |
| Low end lip ×2 | 40 × 304.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- End lip heightmm
The cutaway wrap display tray family
The same structure with sizes, boards and options set for a use.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this fefco 0460 · cutaway wrap tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
