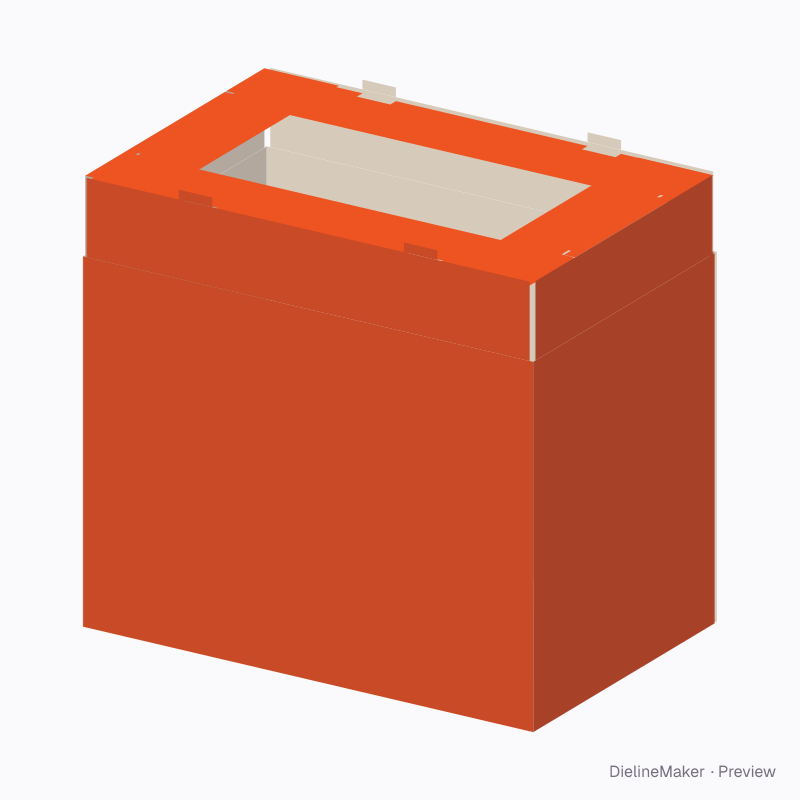

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0818Display
Integral window-band display case dieline
One glued sleeve with an integral top band, locking window flaps and shallow bottom retaining flanges. A ready-sized preset of the integral-band display case or end dispenser — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 260 × 300 mm
Outside406.4 × 266.4 × 379.4 mm
Flat blank1361.6 × 486.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0818
- Inside size
- Length 400 · Width 260 · Height 300 mm
- Size range
- Length 120–1000 · Width 80–800 · Height 80–1200 mm
- Manufacturing
- 403.2 × 263.2 × 303.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.645 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for

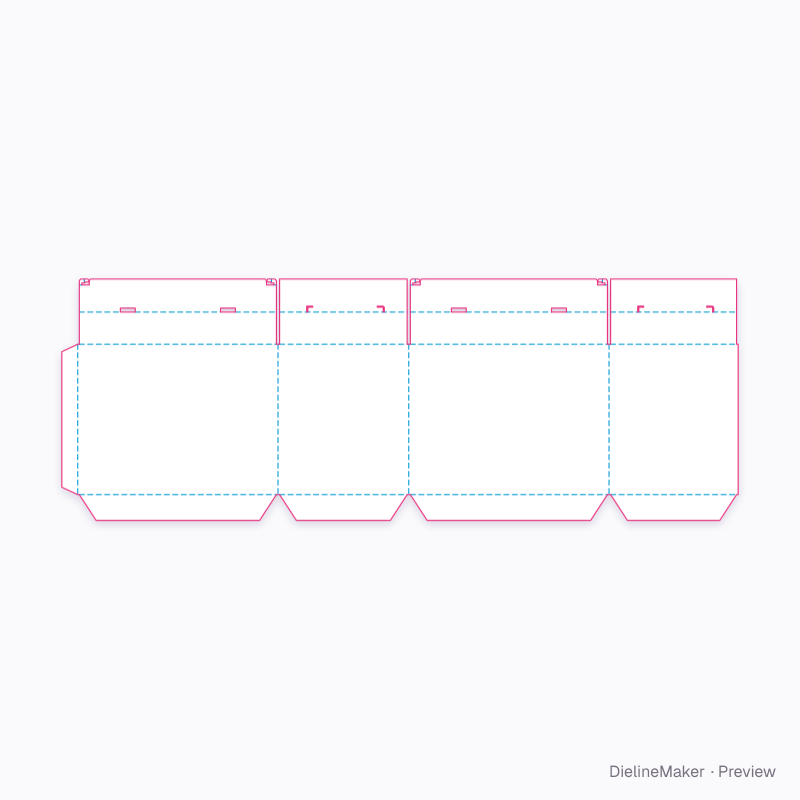

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0818 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 403.2 × 303.2 | L + T × H + T |
| Left | 263.2 × 303.2 | W + T × H + T |
| Back | 403.2 × 303.2 | L + T × H + T |
| Right | 260 × 303.2 | W × H + T |
| Glue flap | 32 × 303.2 | – × H + T |
| bottom back | 396.8 × 52 | L − T × – |
| band back | 396.8 × 65 | L − T × – |
| top back | 396.8 × 66.6 | L − T × – |
| back standing tab 1 | 30 × 8 | – |
| back standing tab 2 | 30 × 8 | – |
| bottom left | 256.8 × 52 | W − T × – |
| band left | 256.8 × 65 | W − T × – |
| top left | 256.8 × 66.6 | W − T × – |
| bottom front | 396.8 × 52 | L − T × – |
| band front | 396.8 × 65 | L − T × – |
| top front | 396.8 × 66.6 | L − T × – |
5 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction3 options
- Band position2 options
- Top band depthmm
- Window widthmm
- Window lengthmm
- Bottom retaining flangemm

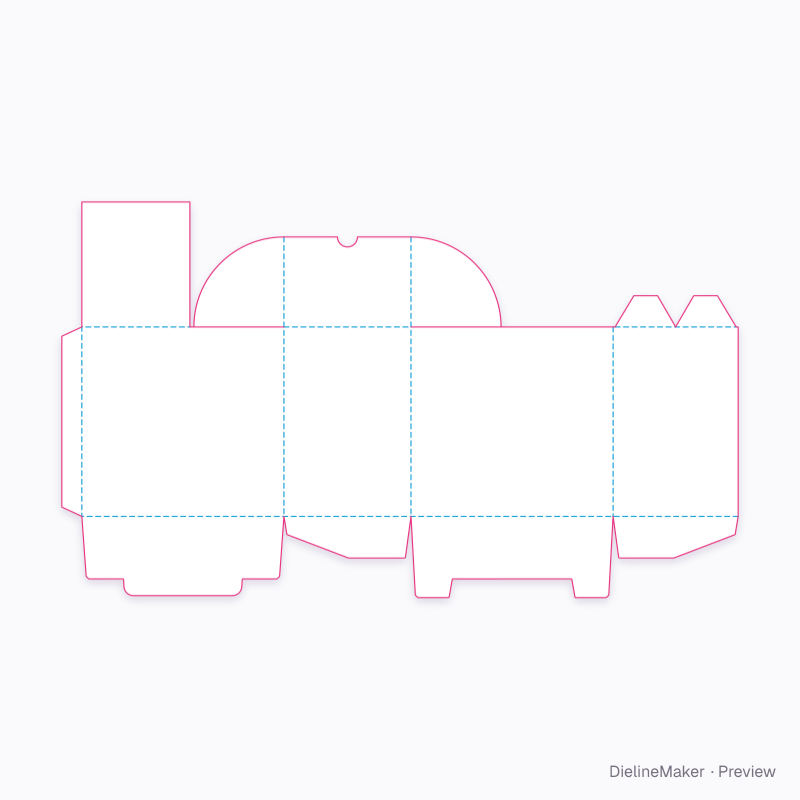

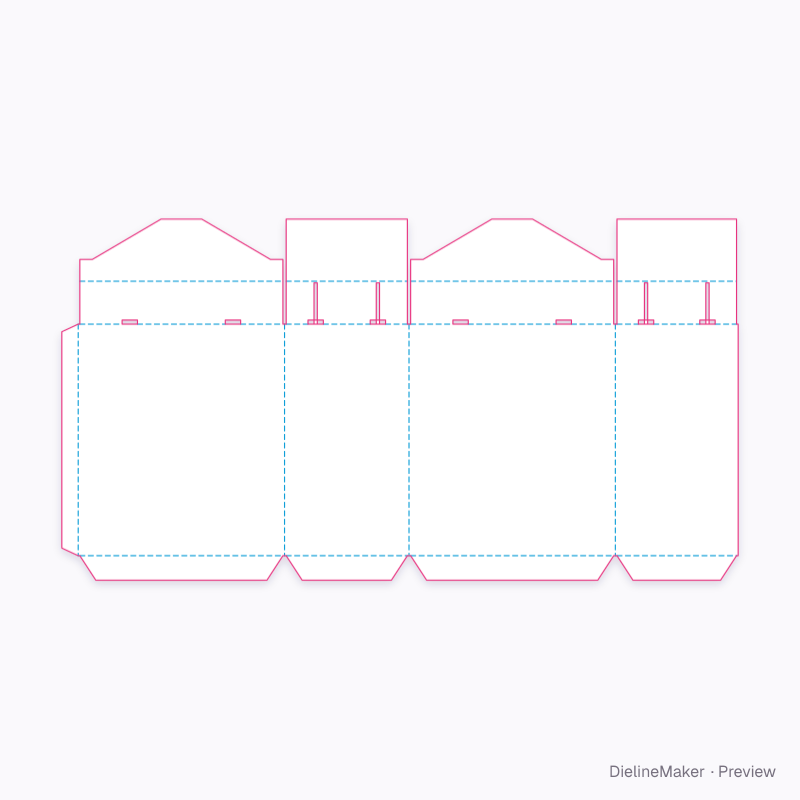

The integral-band display case or end dispenser family
The same structure with sizes, boards and options set for a use.
