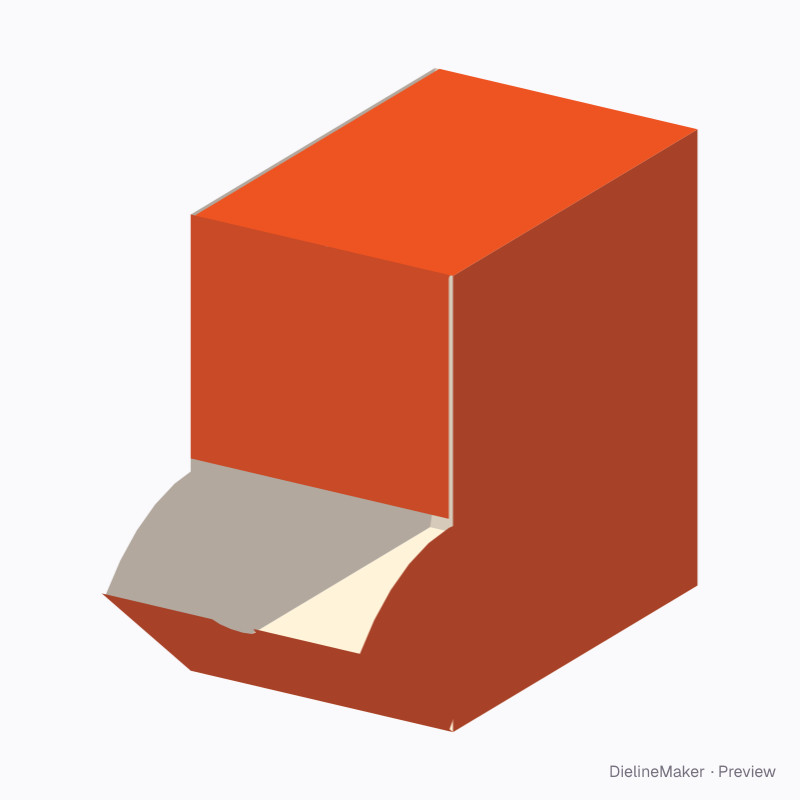

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0825Display
Integral end-scoop dispenser dieline
A tube standing on its long side, with a snap-lock rear and an integral scoop on the W-wide front floor edge. A ready-sized preset of the integral-band display case or end dispenser — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 300 × 320 mm
Outside206.4 × 309.6 × 326.4 mm
Flat blank1081.6 × 633.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0825
- Inside size
- Length 200 · Width 300 · Height 320 mm
- Size range
- Length 120–1000 · Width 80–800 · Height 80–1200 mm
- Manufacturing
- 203.2 × 303.2 × 323.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.524 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0825 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 323.2 × 303.2 | H + T × W + T |
| Left | 203.2 × 303.2 | L + T × W + T |
| Back | 323.2 × 303.2 | H + T × W + T |
| Right | 200 × 303.2 | L × W + T |
| Glue flap | 32 × 303.2 | – × W + T |
| Snap end | 203.2 × 66.7 | L + T × – |
| Snap end | 200 × 66.7 | L × – |
| Snap bottom | 323.2 × 130 | H + T × – |
| Snap tuck | 323.2 × 126.8 | H + T × – |
| spout | 203.2 × 144 | L + T × – |
| cheek left | 144 × 144 | – |
| cheek right | 144 × 144 | – |
| front upper | 172.8 × 200 | – × L |
| front roof dust | 193.6 × 50 | L − 2T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction3 options
- Band position2 options
- Top band depthmm
- Dispenser openingmm
- Spout tilt°
- Bottom retaining flangemm
