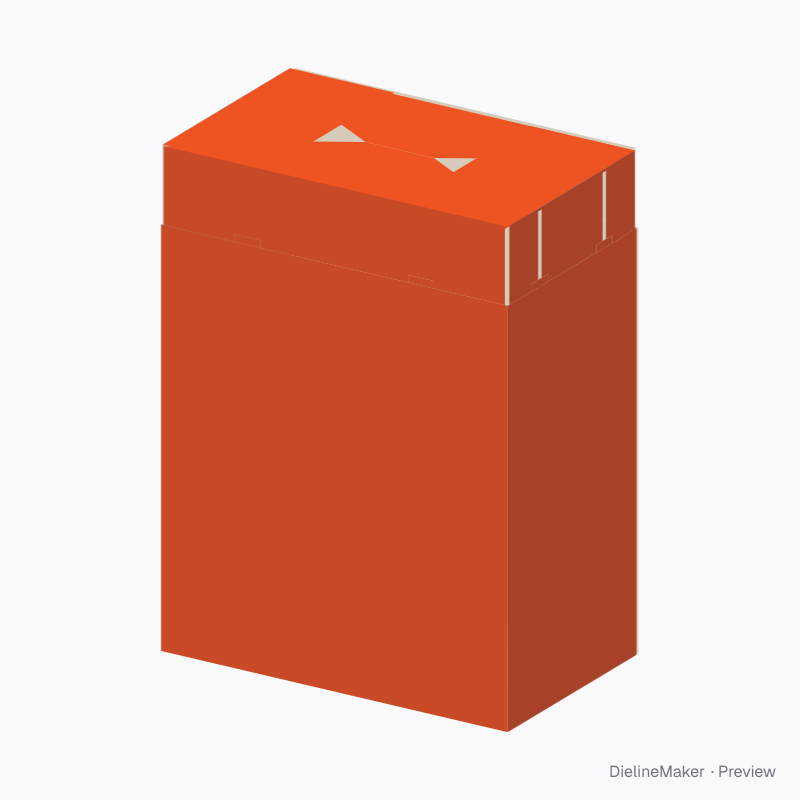

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0819Display
Integral folding-band display case dieline
One sleeve with an integral scored top band, standing tabs and four closing flaps. A ready-sized preset of the integral-band display case or end dispenser — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 240 × 450 mm
Outside406.4 × 246.4 × 540.4 mm
Flat blank1321.6 × 706.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0819
- Inside size
- Length 400 · Width 240 · Height 450 mm
- Size range
- Length 120–1000 · Width 80–800 · Height 80–1200 mm
- Manufacturing
- 403.2 × 243.2 × 453.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.884 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0819 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 403.2 × 453.2 | L + T × H + T |
| Left | 243.2 × 453.2 | W + T × H + T |
| Back | 403.2 × 453.2 | L + T × H + T |
| Right | 240 × 453.2 | W × H + T |
| Glue flap | 32 × 453.2 | – × H + T |
| bottom back | 396.8 × 48 | L − T × – |
| band back | 396.8 × 84 | L − T × – |
| top back | 396.8 × 121.6 | L − T × – |
| back standing tab 1 | 30 × 8 | – |
| back standing tab 2 | 30 × 8 | – |
| bottom left | 236.8 × 48 | W − T × – |
| band left | 236.8 × 84 | W − T × – |
| top left | 236.8 × 121.6 | W − T × – |
| left standing tab 1 | 30 × 8 | – |
| left standing tab 2 | 30 × 8 | – |
| bottom front | 396.8 × 48 | L − T × – |
9 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction3 options
- Band position2 options
- Top band depthmm
- Bottom retaining flangemm
The integral-band display case or end dispenser family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this integral folding-band display case yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
