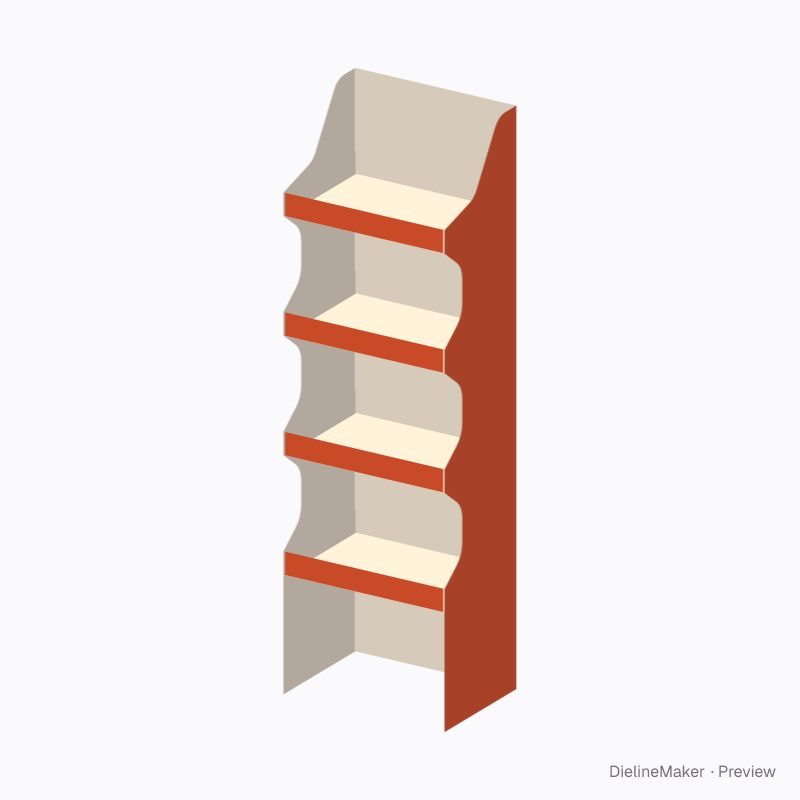

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0840Display
Scalloped tray display dieline
Four tray shelves between sides scalloped back between them and swept to the top. A ready-sized preset of the shelf floor display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside450 × 320 × 1500 mm
Outside456.4 × 324.8 × 1500 mm
Flat blank1099.6 × 1500 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0840
- Inside size
- Width 450 · Depth 320 · Height 1500 mm
- Size range
- Width 250–1200 · Depth 150–700 · Height 400–2200 mm
- Manufacturing
- 453.2 × 323.2 × 1500 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Body, Shelf 1, Shelf 2, Shelf 3, Shelf 4
- Board area
- 2.312 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for

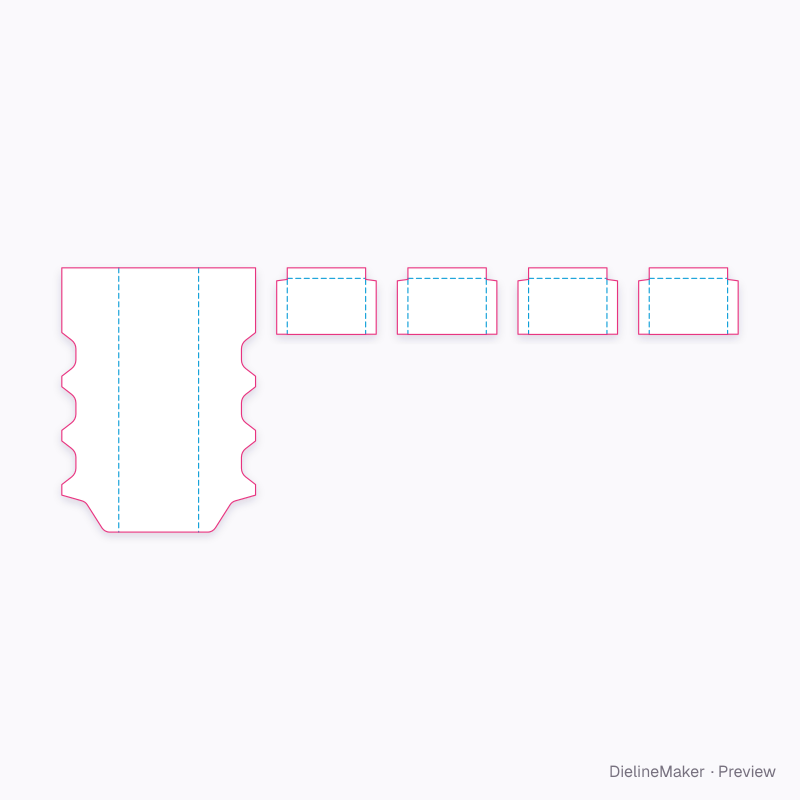

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0840 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BackBody | 453.2 × 1500 | L + T × H |
| Left sideBody | 323.2 × 1500 | W + T × H |
| Right sideBody | 323.2 × 1500 | W + T × H |
| ShelfShelf 1 | 444.8 × 318 | – |
| Front lipShelf 1 | 444.8 × 60 | – |
| Side tab ×2Shelf 1 | 60 × 311.2 | – |
| ShelfShelf 2 | 444.8 × 318 | – |
| Front lipShelf 2 | 444.8 × 60 | – |
| Side tab ×2Shelf 2 | 60 × 311.2 | – |
| ShelfShelf 3 | 444.8 × 318 | – |
| Front lipShelf 3 | 444.8 × 60 | – |
| Side tab ×2Shelf 3 | 60 × 311.2 | – |
| ShelfShelf 4 | 444.8 × 318 | – |
| Front lipShelf 4 | 444.8 × 60 | – |
| Side tab ×2Shelf 4 | 60 × 311.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction9 options
- Shelvescount
- Shelf lipmm
- Top depthmm
- Plinthmm
- Scallopmm

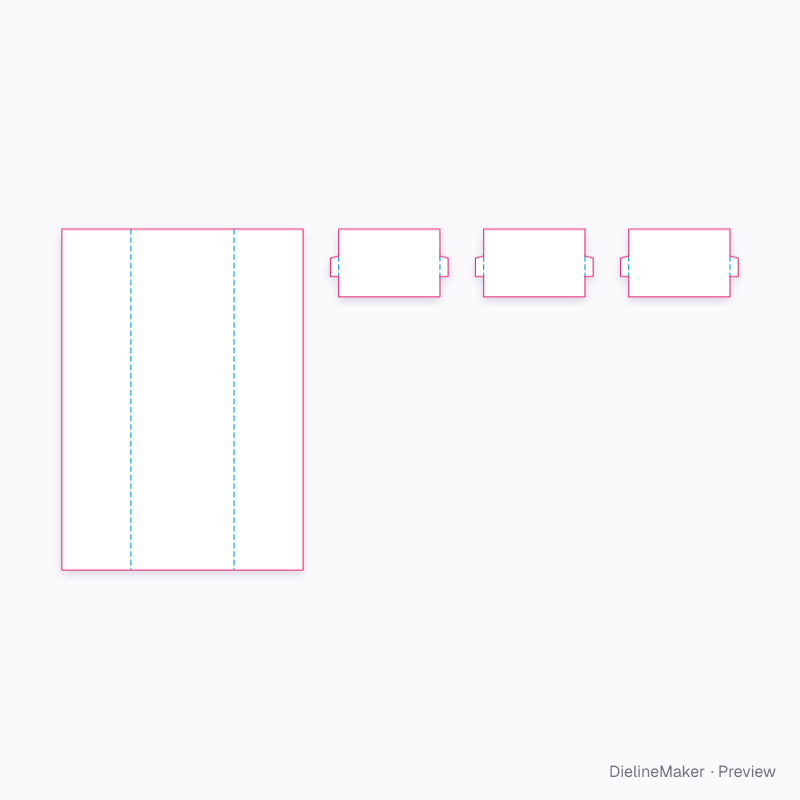

The shelf floor display family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

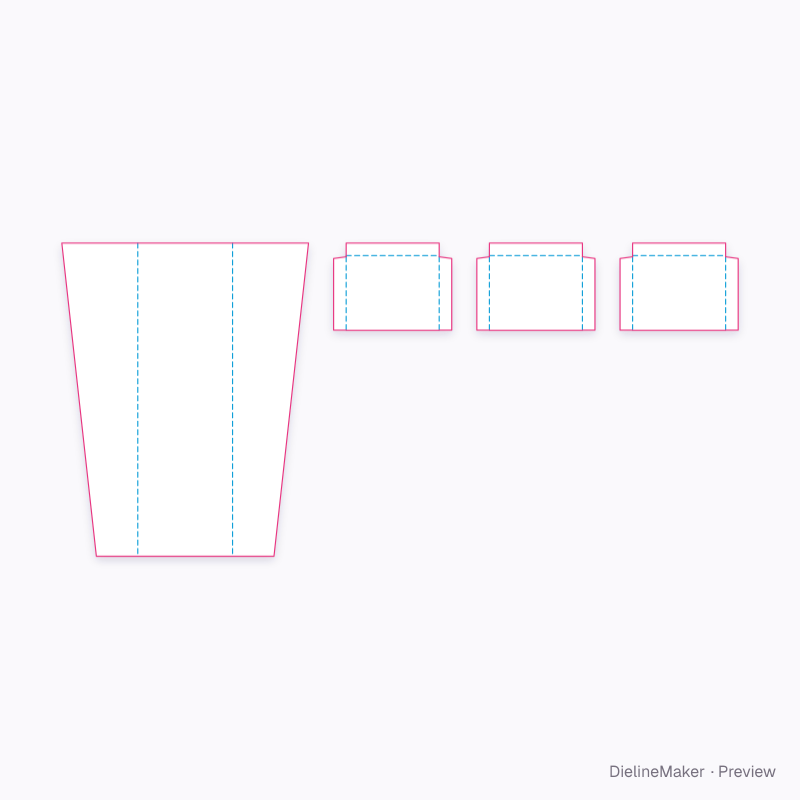

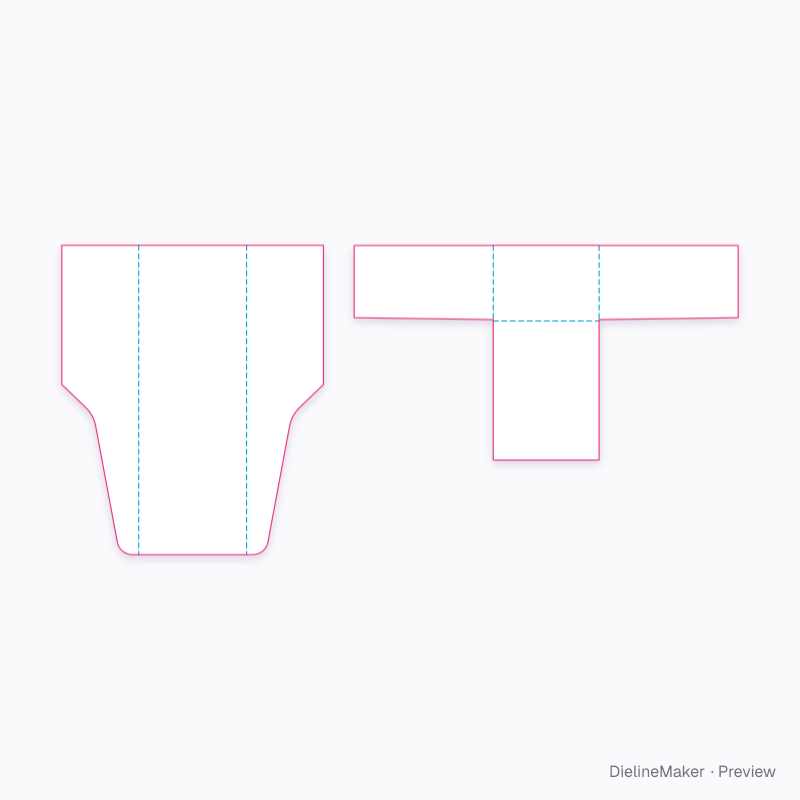

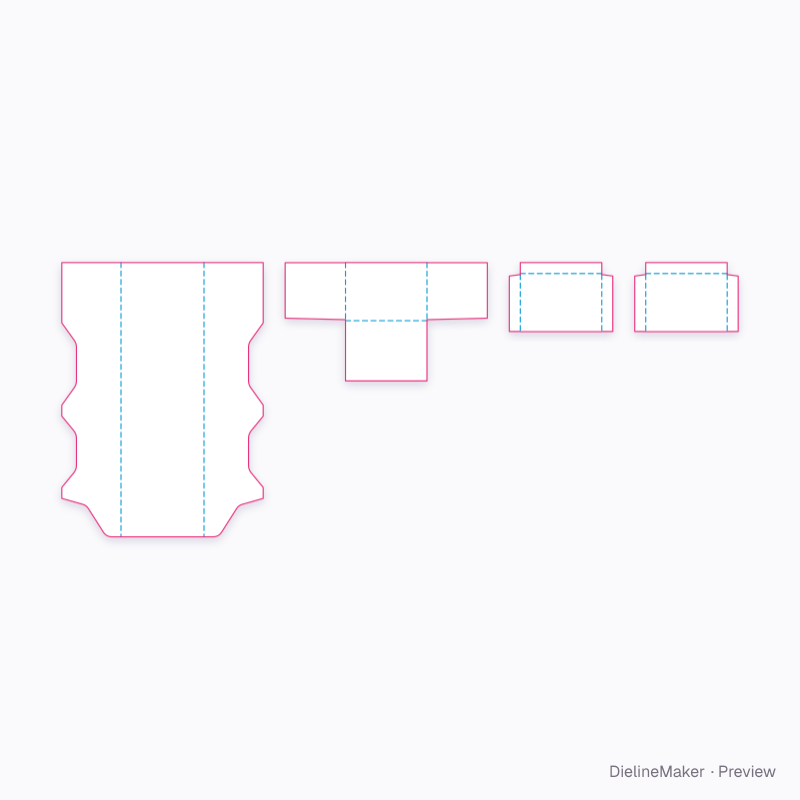

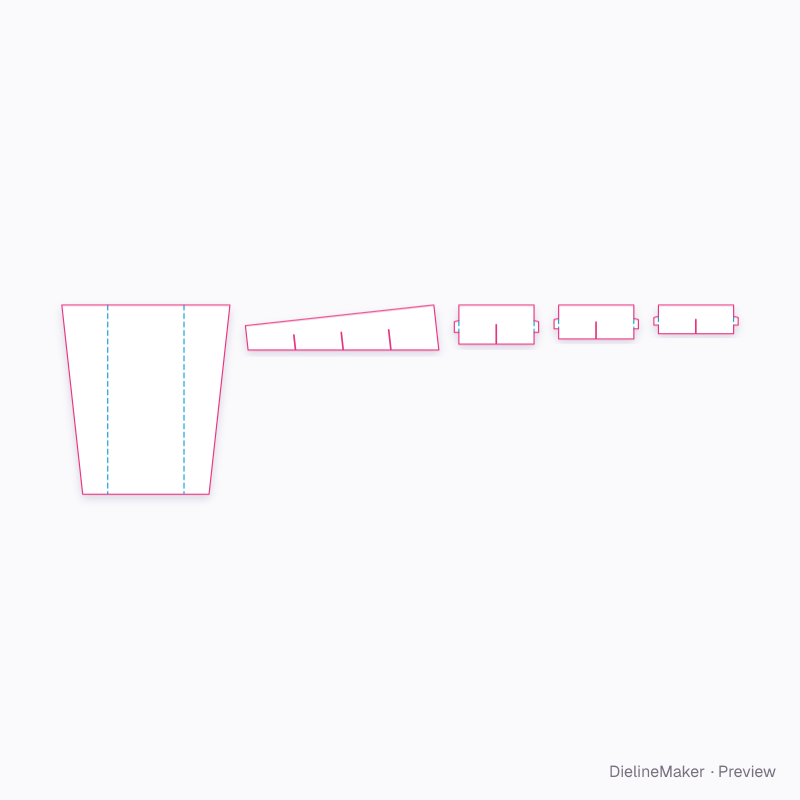

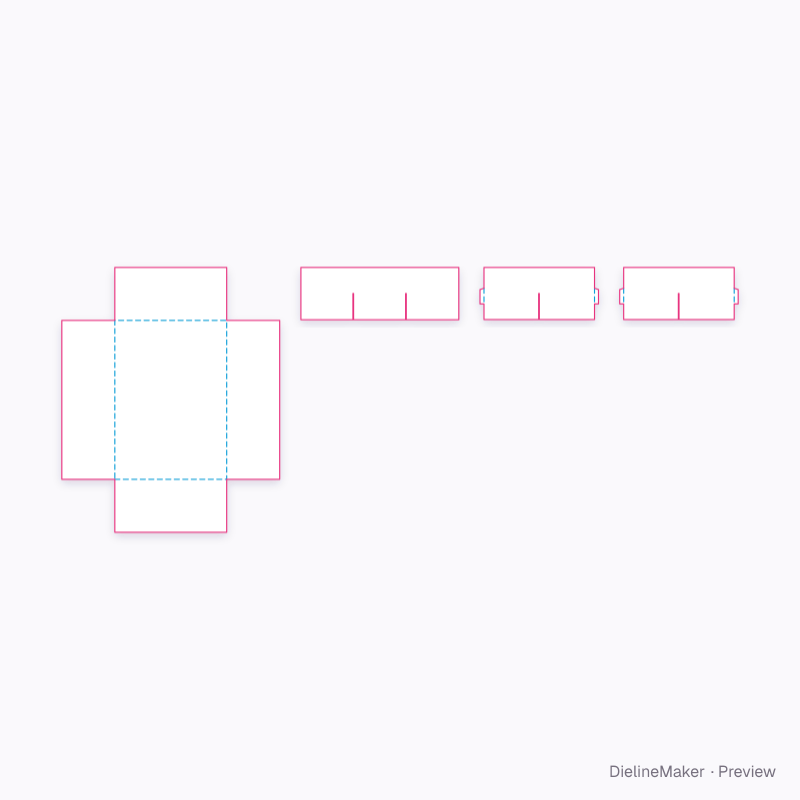

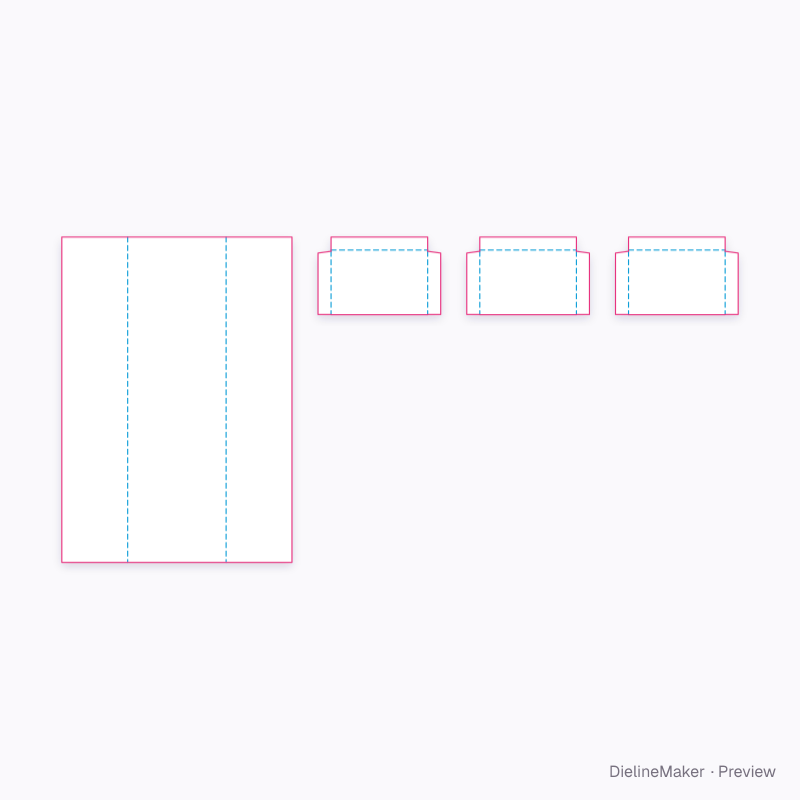

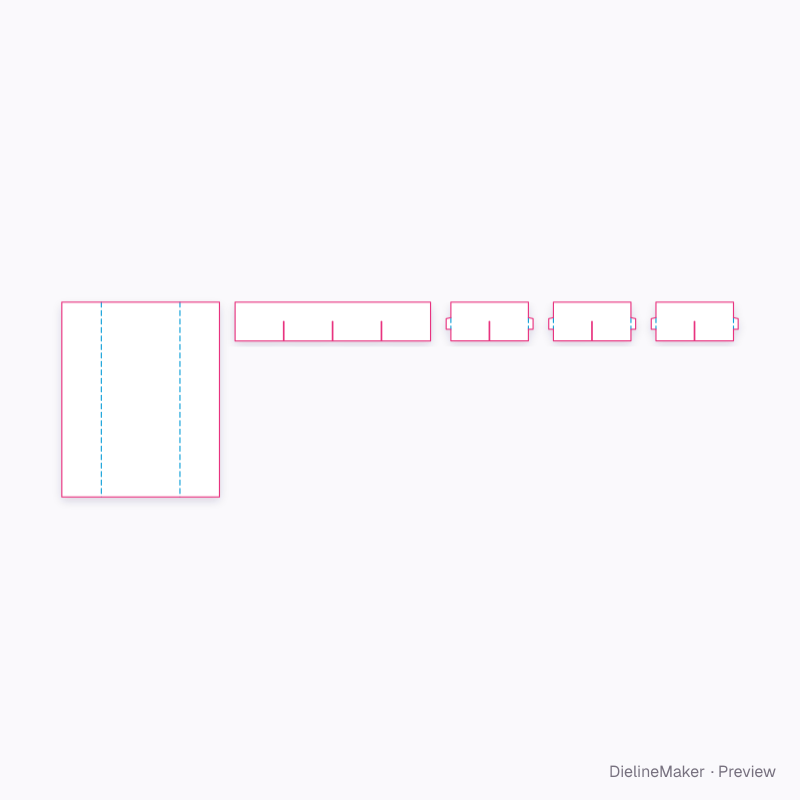

Similar structures
