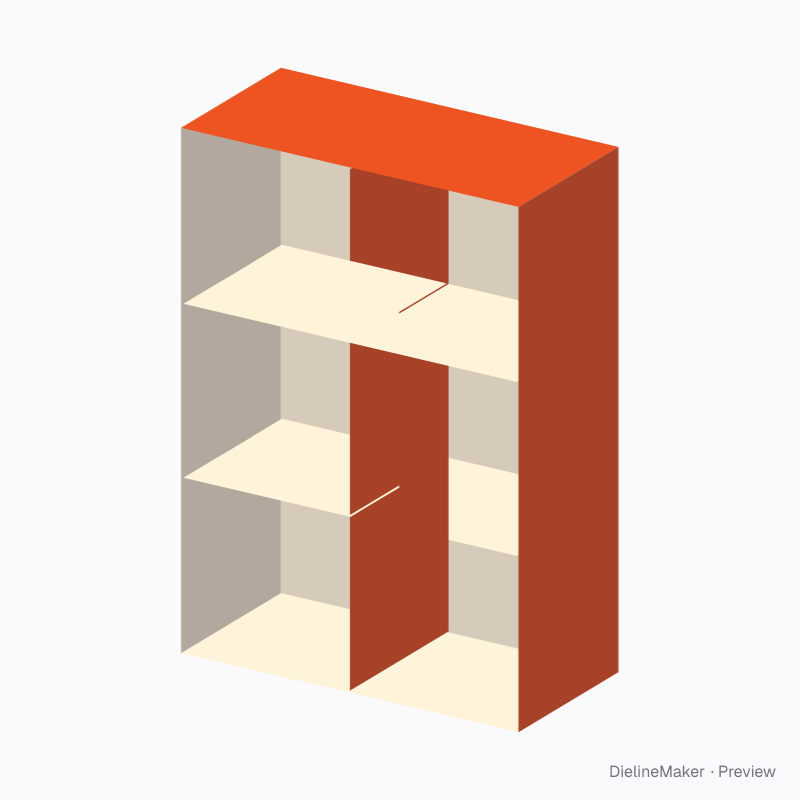

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0872Display
Cube shelving unit dieline
A closed corrugated box with a centre partition and two shelves each side: six cubes. A ready-sized preset of the shelf floor display — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside700 × 330 × 1000 mm
Outside706.4 × 334.8 × 1000 mm
Flat blank1369.6 × 1666.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0872
- Inside size
- Width 700 · Depth 330 · Height 1000 mm
- Size range
- Width 250–1200 · Depth 150–700 · Height 400–2200 mm
- Manufacturing
- 703.2 × 333.2 × 1000 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Body, Centre partition, Shelf 1, Shelf 2
- Board area
- 2.627 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0872 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BackBody | 703.2 × 1000 | L + T × H |
| Left sideBody | 333.2 × 1000 | W + T × H |
| Right sideBody | 333.2 × 1000 | W + T × H |
| TopBody | 703.2 × 333.2 | L + T × W + T |
| BottomBody | 703.2 × 333.2 | L + T × W + T |
| PartitionCentre partition | 992.6 × 329 | – |
| ShelfShelf 1 | 694.8 × 328 | – |
| Side tab ×2Shelf 1 | 25 × 98.4 | – |
| ShelfShelf 2 | 694.8 × 328 | – |
| Side tab ×2Shelf 2 | 25 × 98.4 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Construction9 options
- Shelvescount
- Shelf lipmm
- Top depthmm
- Plinthmm
- Scallopmm
